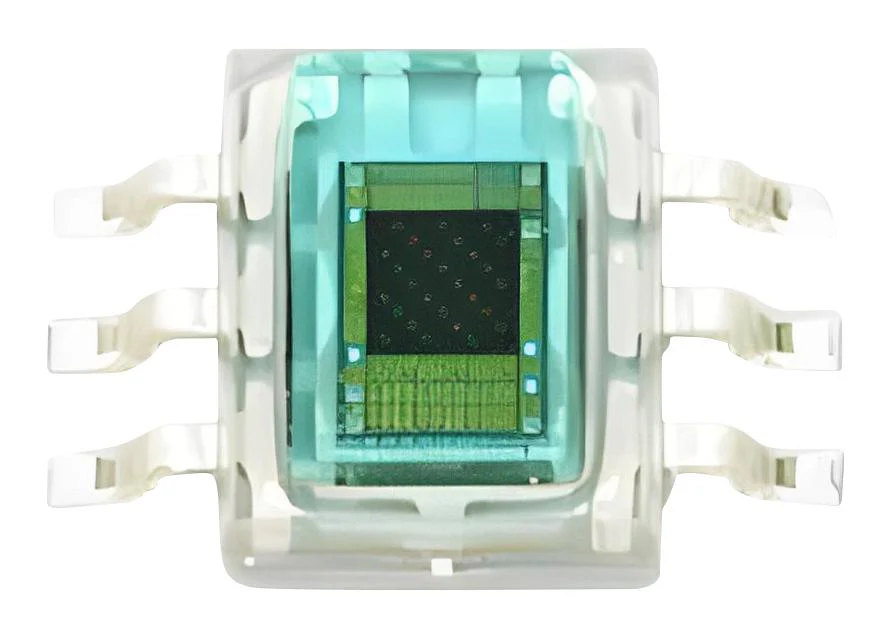

HAMAMATSU S9706 Colour Sensor, RGB, 12bit, 3 to 5.5V, Surface Mount, Gull Wing
S9706 is a digital colour sensor sensitive to red (λ=615nm), green (λ=540nm), blue (λ=465nm) regions of the spectrum. Detected signals are serially output as 12bit digital data. Built-in three 12bit registers allow simultaneous measurement of RGB three colours. The sensitivity level is adjustable in two steps to cover a wide photometric range.
- 12bit digital output
- Simultaneous measurement of RGB three colours
- 2-step sensitivity switching (sensitivity ratio of 1:9)
- Low voltage (3.3V) operation
- CMOS monolithic photo IC
- No external components required
- Photosensitive area is 1.2 � 1.2mm
- Peak sensitivity wavelength is 465nm blue, 540nm green, 615nm red
- Operating temperature range from -25 to +85°C
Product details
Other details
| Brand | HAMAMATSU |
| Part Number | S9706 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
