GATEWORKS GW7401 Single Board Computer, GW7400, i.MX8M Family, ARM Cortex-A53, 4GB LPDDR4 RAM
GATEWORKS GW7401 Single Board Computer, GW7400, i.MX8M Family, ARM Cortex-A53, 4GB LPDDR4 RAM

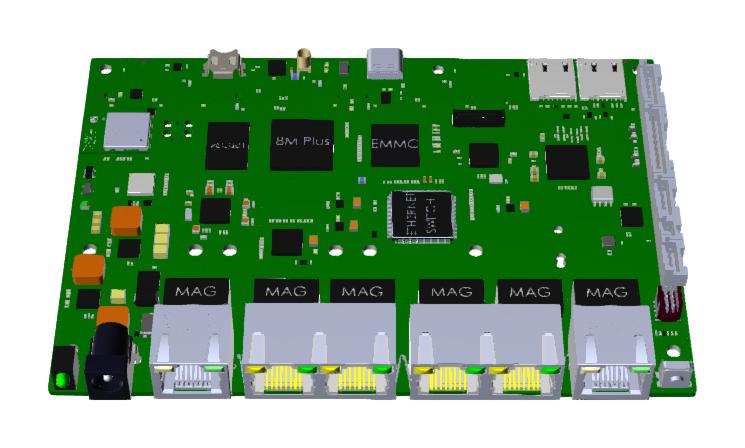

GW7401 is a Venice GW7400 single board computer targeted for industrial applications. The GW7401 features the 64-bit NXPâ�¢ i.MX8M Plus Quad Core ARM® Cortexâ�¢-A53 SoC processor operating at 1.6GHz, 1GBytes of LPDDR4 DRAM, and 8GBytes of eMMC System Flash. The i.MX8M Plus SoC features a Neural Processing Unit (NPU) operating at up to 2.3 TOPS, a Video Processing Unit (VPU) supporting up to 1080p60, a GC7000UL Graphics Processing Unit (GPU), and a Cadence® Tensilica® HiFi 4 DSP. Six total Gigabit Ethernet ports offer 1x WAN and 5x switched LAN wired connectivity.
- One high-power mini-PCIe socket with PCIe 3.0 and USB 2.0 signalling
- Two high-power mini-PCIe sockets with USB 3.0 signalling
- One M.2 B-key socket with USB 3.0 and dual nano SIMs
- Optional Laird sterling-LWB5+ 802.11a/b/g/n/ac Wi-Fi & BLE v5.2 module (MHF4 antenna connector)
- Optional u-blox GPS receiver with MMCX antenna connector
- Digital I/O & analogue port, I2C & SPI port, RS232/RS485 and TTL serial port, USB 3.0 Type-C port
- CAN bus transceiver, MIPI-DSI and MIPI-CSI port, I2S audio, digital 3-axis MEMS accelerometer
- Real time clock with battery backup
- Voltage and temperature monitor, serial configuration EEPROM, programmable watchdog timer
- 8 to 60VDC input voltage range
Product details
| Processor Core Type: NXP ARM Cortex A53 Quad Core |
| Silicon Manufacturer: Gateworks |
| Silicon Family Name: i.MX8M Plus |
| Core Number: GW7400 |
| Core Architecture: ARM |
| Core Sub-Architecture: Cortex-A53 |
| Processor Speed: 1.6GHz |
| RAM Memory Size: 4GB |
| Silicon Core Number: GW7400 |
| Kit Contents: GW7400 |
| Operating System: Ubuntu Linux |
| Operating Temperature Range: -40°C to +85°C |
| Product Range: - |
Other details
| Brand | GATEWORKS |
| Part Number | GW7401 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
