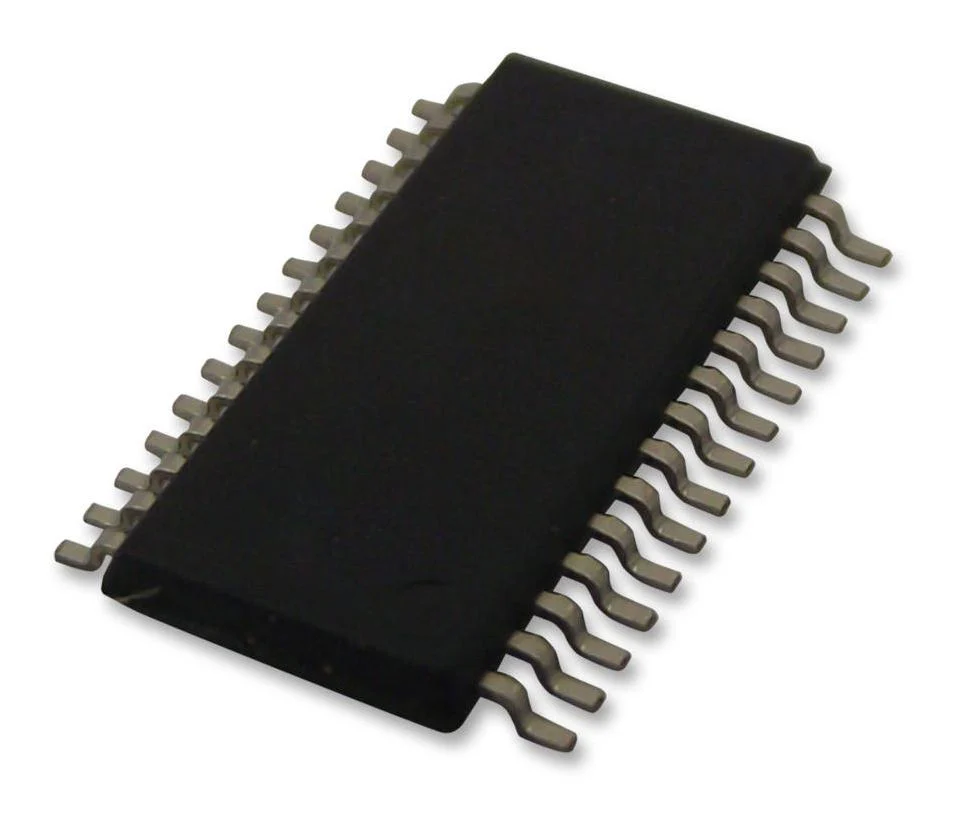

Ftdi FT245RL-REEL FT245RL-REEL Interface Bridges USB to Fifo 1.8 V 5.25 Ssop 28 Pins -40 °C
Ftdi FT245RL-REEL FT245RL-REEL Interface Bridges USB to Fifo 1.8 V 5.25 Ssop 28 Pins -40 °C
The FT245RL is an USB to parallel FIFO interface device in 28 Pin SSOP package. The device simplifies USB to FIFO designs and reduces external component count by fully integrating an external EEPROM, USB termination resistors and integrated clock circuit which requires no external crystal into the device. It has been designed to operate efficiently with USB host controller by using as little as possible of total USB bandwidth available. The FT245RL has true 5V/3.3V/2.8V/1.8V CMOS drive output and TTL input. The 128byte receive buffer and 256byte transmit buffer utilising buffer smoothing technology allows for high data throughput. It is supplied pre-programmed with unique USB serial number. The FT245RL supports bus powered, self powered and high power bus powered USB configurations. (Warning! - FTDI released a driver published to Windows Update which has resulted in counterfeit chips used in finished products being left inoperable.)
- Entire USB protocol handled on the chip and no USB specific firmware programming required
- Fully integrated 1024bit EEPROM storing device descriptors and FIFO I/O configuration
- Data transfer rates up to 1Mbyte/second
- Unique USB FTDIChip-ID
- Configurable FIFO interface I/O pins
- Operating temperature range from -40°C to 85°C
- USB 2.0 full speed compatible
- UHCI/OHCI/EHCI host controller compatible
- Low USB bandwidth consumption
- Operating supply voltage range from 1.8V to 5.25V
- FTDI has used Windows Update to push a malicious driver that identifies counterfeit chips
- This driver update sends the signal NON GENUINE DEVICE FOUND! instead of functioning normally.
Communications & Networking, Industrial, Consumer Electronics, Portable Devices, Wireless, Audio, Imaging, Video & Vision
Footnotes Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | FTDI |
| Part Number | FT245RL-REEL |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
