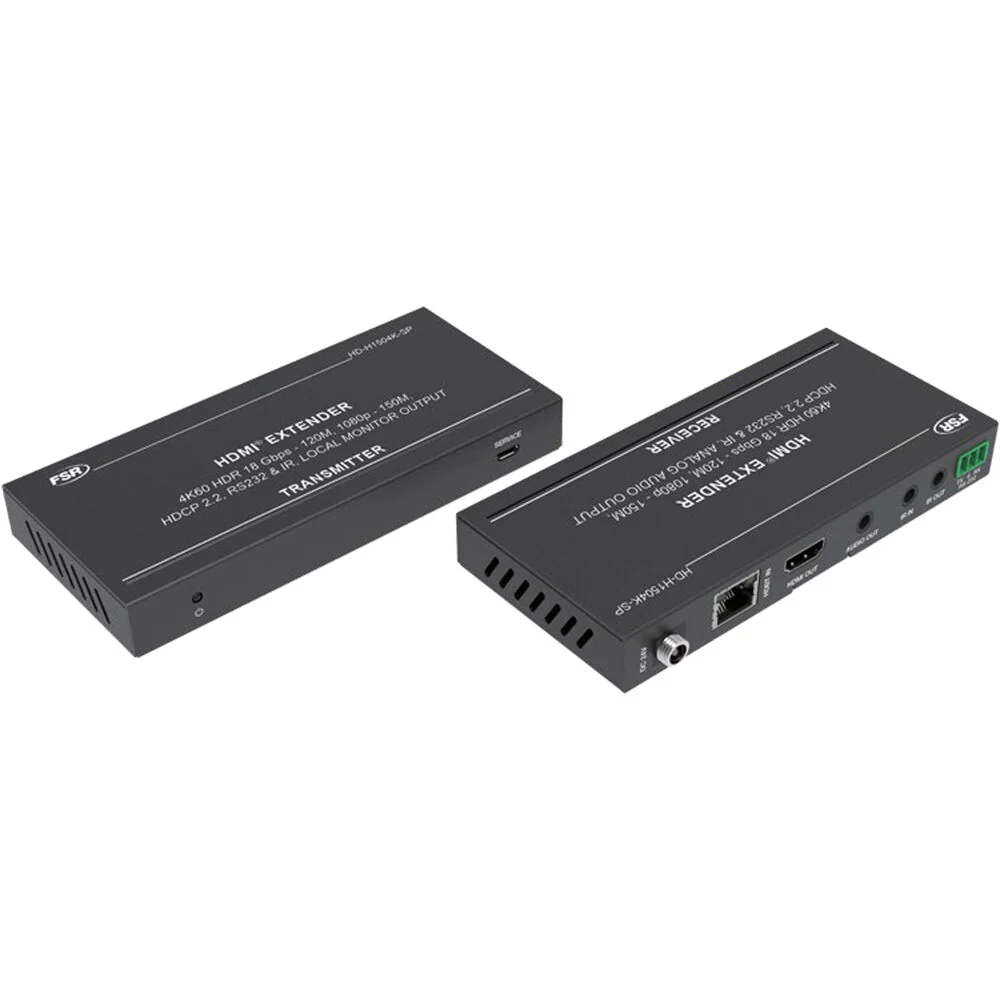

FSR HD-H1504K-SP 4K HDMI over HDBaseT Extender Set
FSR H1504K-SP Overview
FSR H1504K-SP Specs

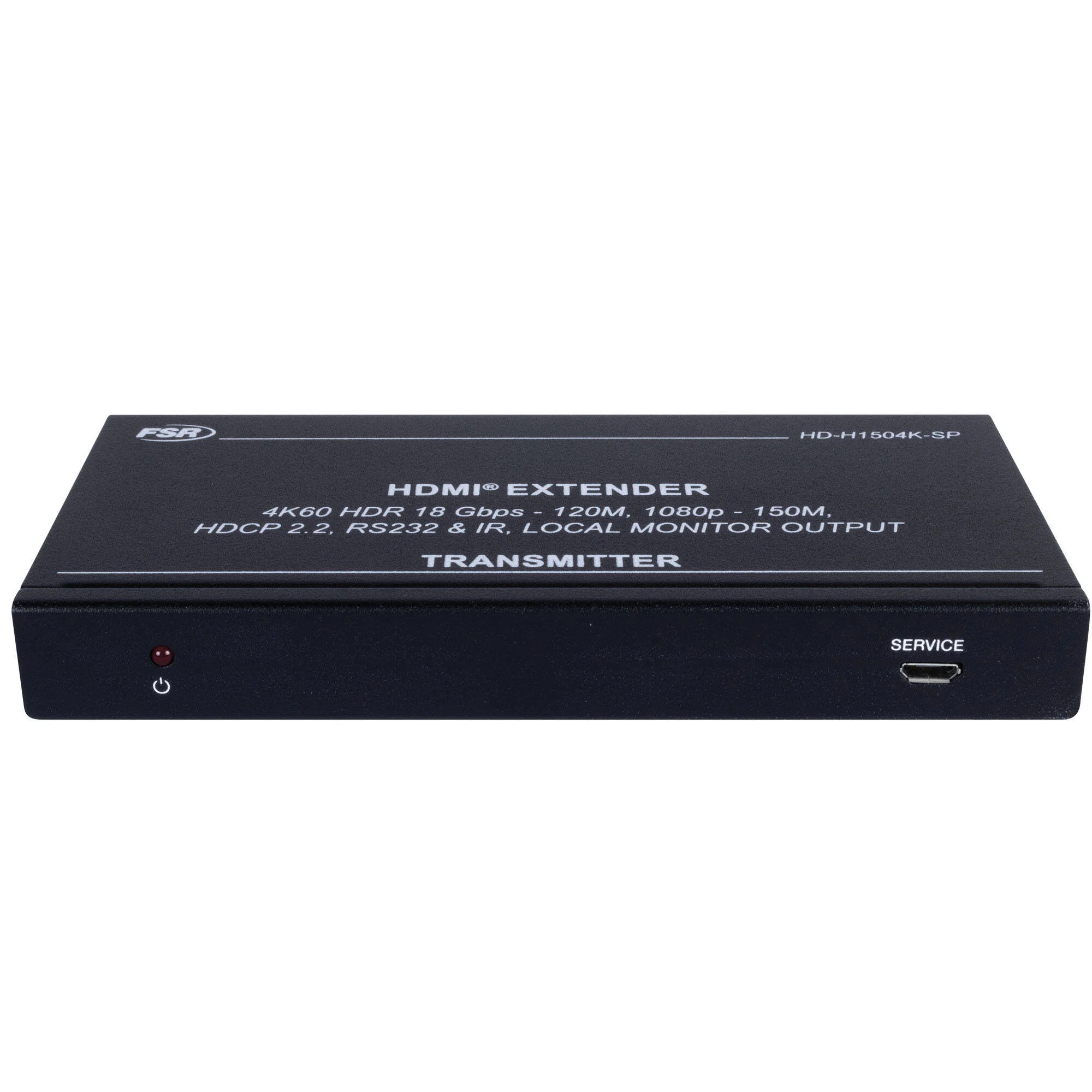

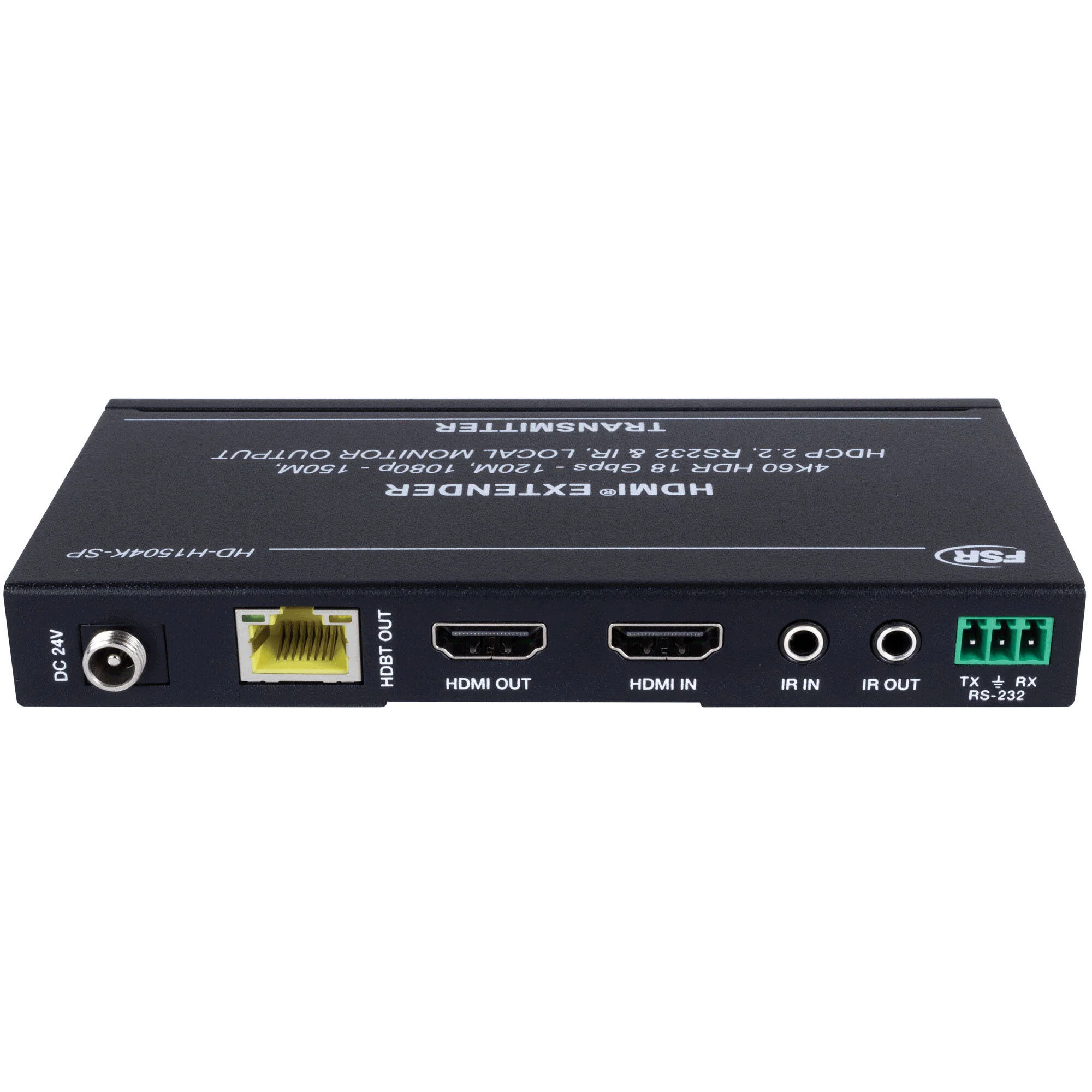

Transmitter Interfaces
| Inputs |
1 x HDMI
|
| Embedded Audio Input |
HDMI
|
| Outputs |
1 x HDMI
1 x RJ45 (HDBaseT) |
| Transmitter Other I/O |
1 x 1/8" / 3.5 mm IR Input
1 x 1/8" / 3.5 mm IR Output 1 x Block 3-Pin RS-232 1 x Mini-USB |

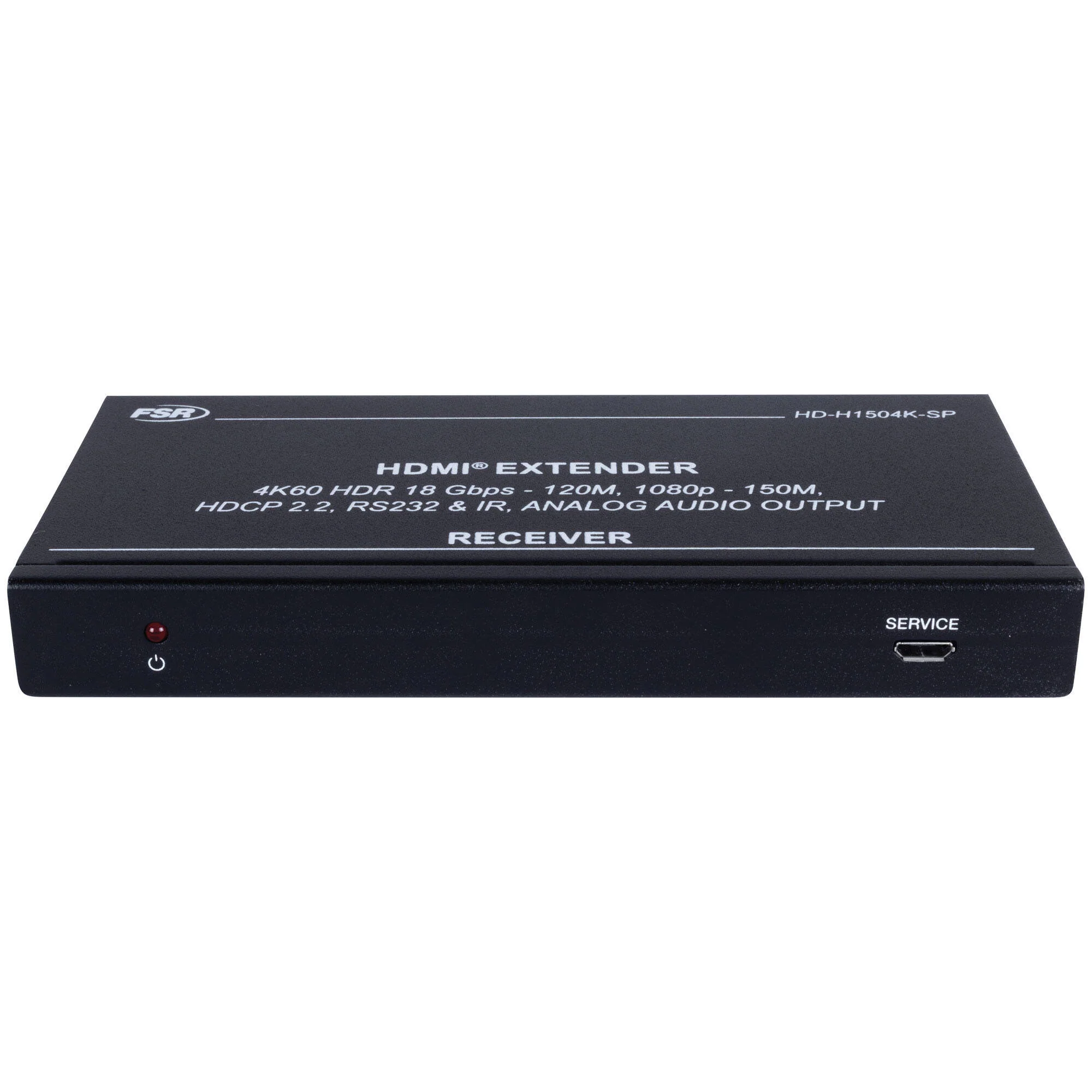

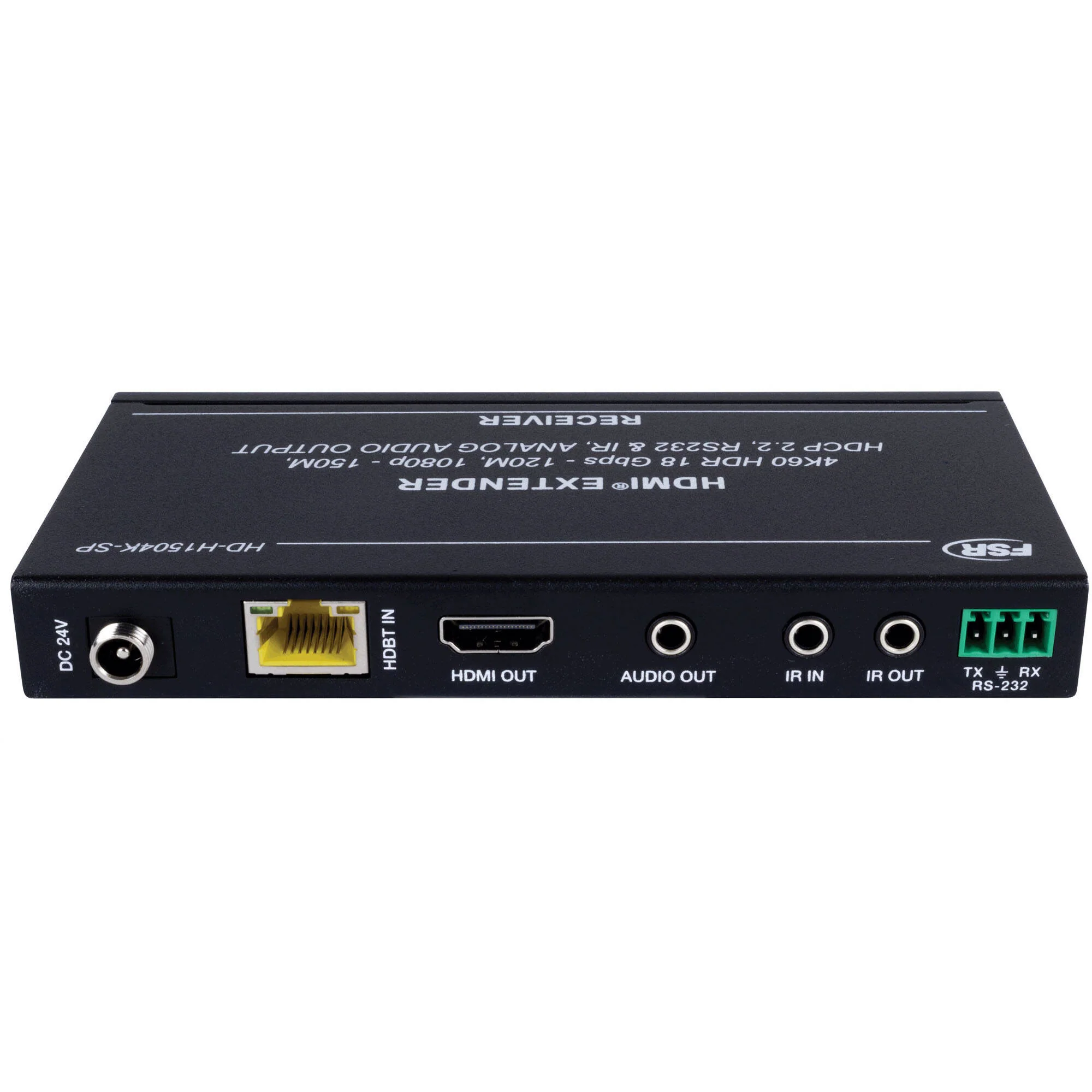

Receiver Interfaces
| Inputs |
1 x RJ45 (HDBaseT)
|
| Outputs |
1 x HDMI
1 x 1/8" / 3.5 mm TRS (Stereo Analog) |
| Receiver Other I/O |
1 x 1/8" / 3.5 mm IR Input
1 x 1/8" / 3.5 mm IR Output 1 x Block 3-Pin RS-232 1 x Mini-USB |
Standards
| HDCP Support |
Yes, Version 2.2
Yes, Version 1.4 |
Transmission
| Max Transmission Distance |
DCI 4K:
394' / 120.1 m (via Cat 5e/6) |
| Video Format |
HDMI (8/10/12-Bit 4:2:2/4:2:0 YCC)
UHD 4K: 30/50/60 fps 1080p: 60 fps HDMI (8-Bit 4:4:4 RGB, YCC) UHD 4K: 30/50/60 fps HDMI 1080i 720p 480p 480i |
| PC Resolutions |
1920 x 1200
|
| DTS Compatibility |
DTS-ES, DTS-HD High Resolution, DTS-HD Master Audio, DTS:X
|
| Dolby Compatibility |
Dolby Digital, Dolby Digital Plus, Dolby TrueHD
|
Power
| Transmitter Power Connector |
1 x Barrel (24 VDC at 1 A) Input
|
| Receiver Power Connector |
1 x Barrel (24 VDC at 1 A) Input
|
| Transmitter Power Consumption |
Power Supply: 100 to 240 VAC (9.36 W)
|
| Receiver Power Consumption |
Power Supply: 100 to 240 VAC (9.36 W)
|
Environmental
| Operating Temperature |
32 to 72°F / 0 to 40°C
|
| Storage Temperature |
-4 to 140°F / -20 to 60°C
|
| Operating Humidity |
20 to 90% (Non-Condensing)
|
General
| Transmitter Dimensions |
5.5 x 2.56 x 0.71" / 139.7 x 65.02 x 18.03 mm
|
| Receiver Dimensions |
5.5 x 2.56 x 0.71" / 139.7 x 65.02 x 18.03 mm
|
| Transmitter Weight |
5.6 oz / 160 g
|
| Receiver Weight |
5.5 oz / 155 g
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
$283.95
Original: $946.51
-70%FSR HD-H1504K-SP 4K HDMI over HDBaseT Extender Set—
$946.51
$283.95More Images
