Flock Audio PATCH XT 192-Channel Digital/Analog Patch System
HomeStore

Flock Audio PATCH XT 192-Channel Digital/Analog Patch System

Flock Audio PATCH XT 192-Channel Digital/Analog Patch System

Flock Audio PATCH XT Overview

Route and digitally control 96 analog audio inputs and 96 outputs with the PATCH XT 192-Channel Digital/Analog Patch System from Flock Audio. This 192-channel 3 RU rackmount patching system offers two Neutrik XLR/TRS combo-jack inputs and two Neutrik XLR male outputs, along with standard Tascam 25 pinout wiring format using 24 DB-25 / D-sub connectors. A USB-B host connector provides vast compatibility with a wide range of control devices, while a multipurpose LED indicator provides signal status verification.

Employing the PATCH APP software application, which is compatible with both Windows and Mac operating systems, the unit facilitates the control and routing of analog audio signals without the need for manual patch cables. The use of digital technology over analog audio is a unique feature that singles out the PATCH XT as an essential centerpiece hub of any audio processing setup. The package includes a 110 to 220V IEC power cord and a 6' USB-A to USB-C locking cable.

Front Panel Inputs and Outputs

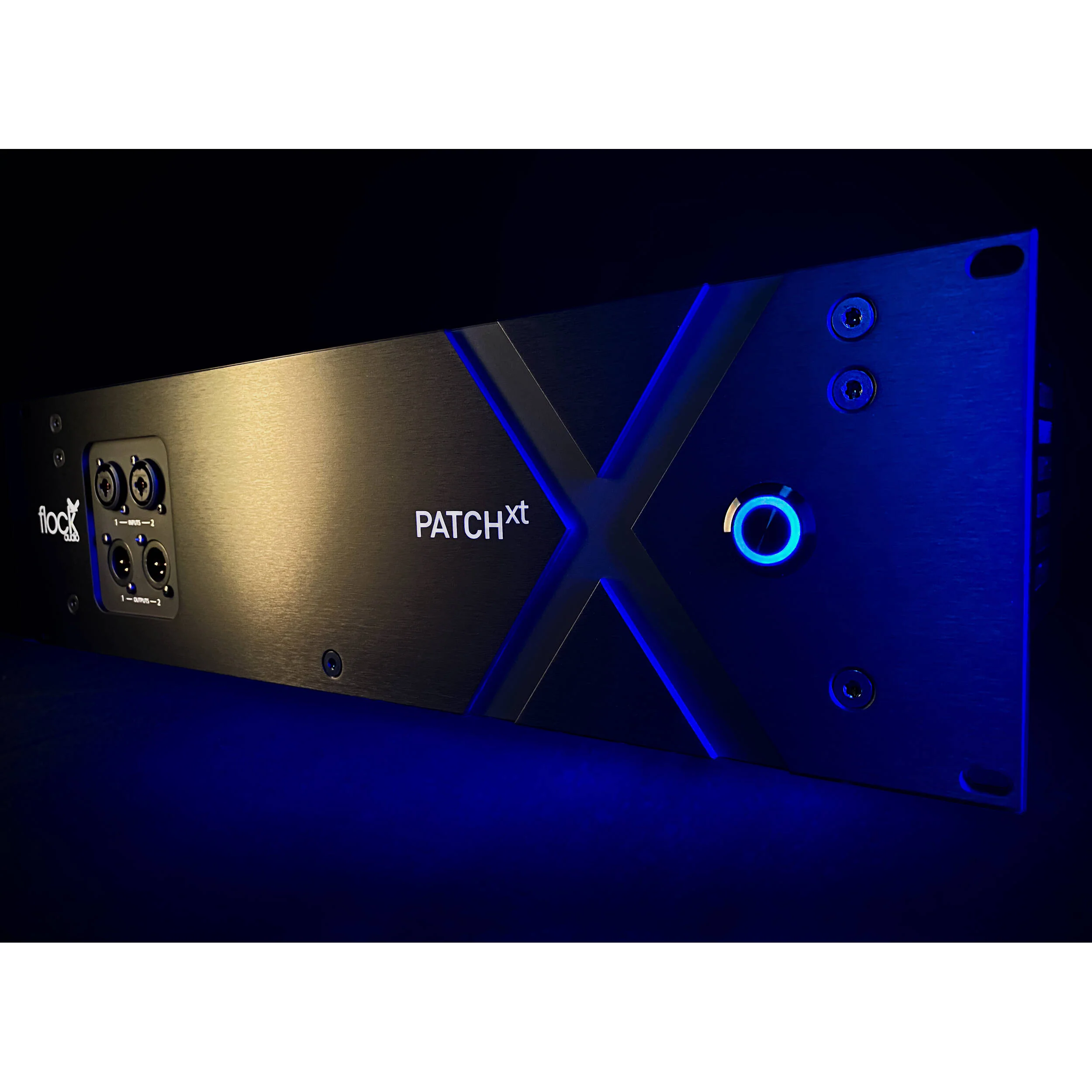

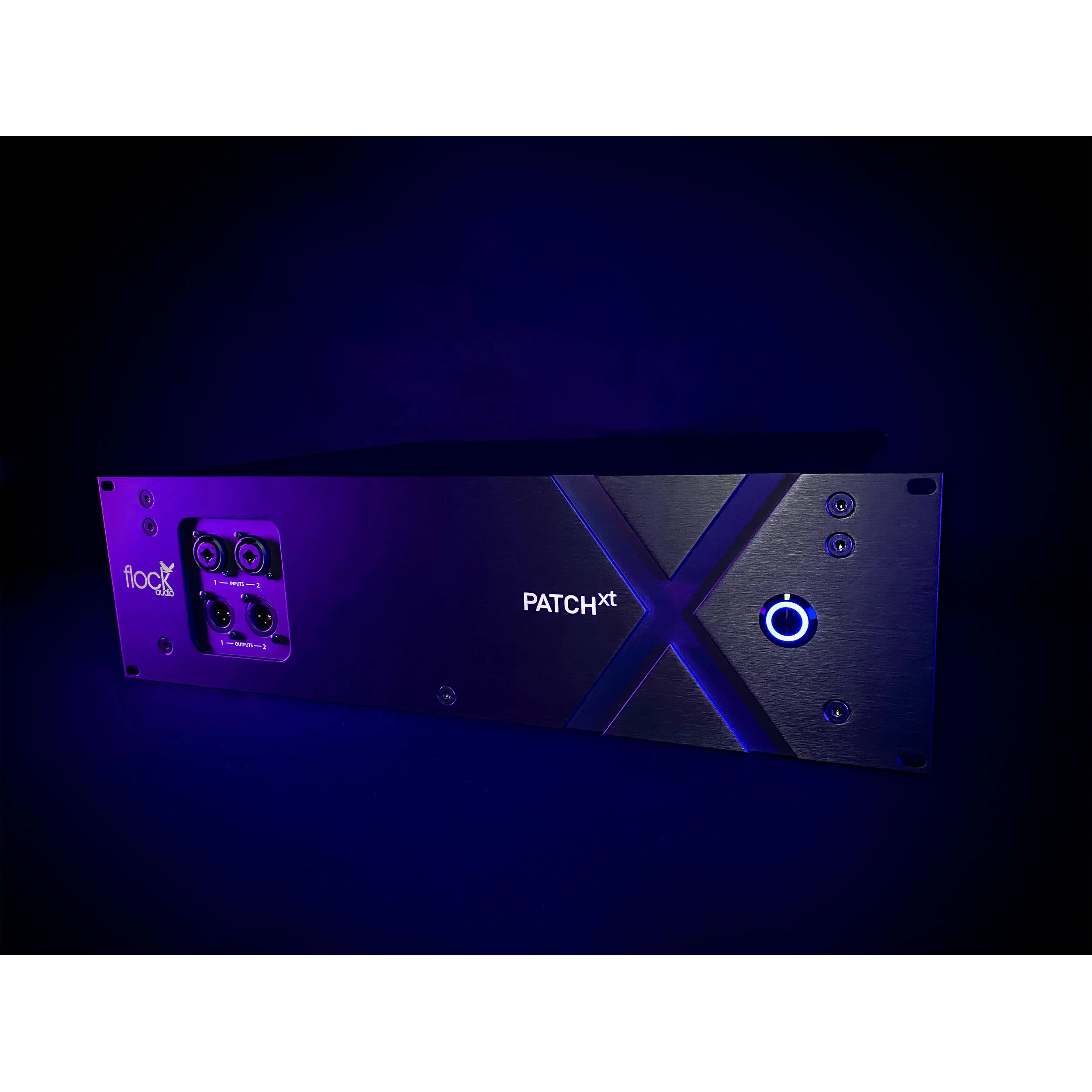

The PATCH XT hardware allows users to redirect inputs and/or outputs 1 to 2 from the rear side of the system to the front panel for easy access and integration of external analog audio equipment.
Multiple Unit Analog Connections
When connecting multiple hardware units together for multi-unit PATCH system configurations, you must choose which connections to configure in order to send and/or receive analog audio signals between multiple PATCH hardware units.
Compatible with Windows and Mac Operating Systems

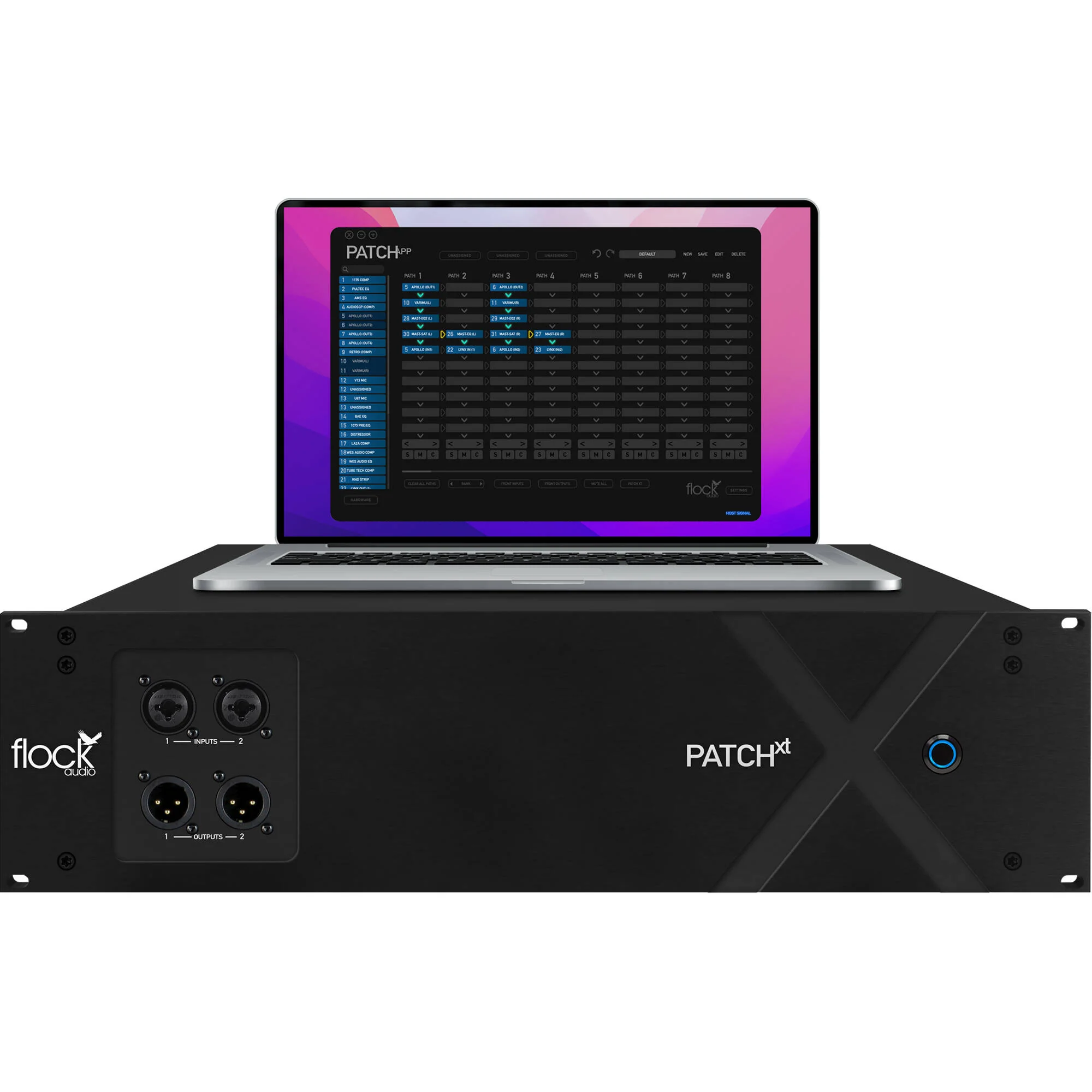

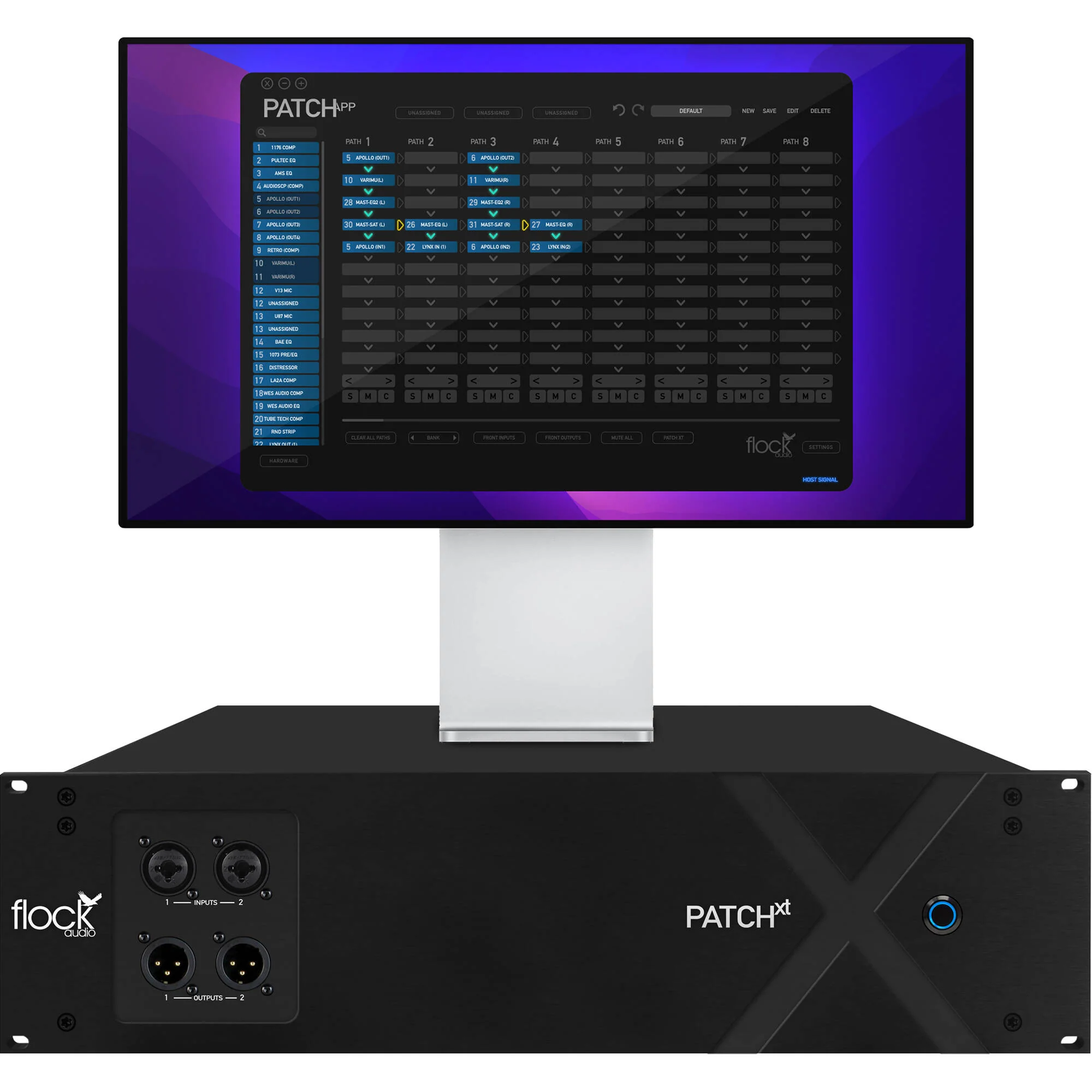

The PATCH APP software application is compatible with Windows and Mac operating systems. The app shows audio signal flows from top to bottom. Signal flows are divided into single vertical columns, allowing you to drag and drop available analog audio equipment connected to the PATCH hardware component.

Items Included

  • Flock Audio PATCH XT 192-Channel Digital/Analog Patch System
  • 110-220V IEC Power Cord
  • USB-A to USB-C Cable (6')
  • Limited 1-Year Manufacturer Warranty

Additional Resources

    Flock Audio PATCH XT Specs

    General
    Compatibility
    Flock Audio EcoSystem
    Inputs/Outputs
    USB I/O
    1 x USB-B Integrated Male Input
    Audio I/O
    2x Combo XLR-1/4" 3-Pin Input
    2x Combo XLR-1/4" 3-Pin Output
    Other I/O
    1 x RJ45 (Long-Distance Control)
    12 x DB-25/D-Sub Inputs (Channels 1-96; 8 Balanced Audio Channels per Connector)
    12 x DB-25/D-Sub Outputs (Channels 1-96; 8 Balanced Audio Channels per Connector)
    Power
    Power Source
    AC Input (Built-In)
    AC Input Power
    110 to 220 VAC, 50 / 60 Hz at 3 A
    Physical
    Mounting
    4x Rack Screw
    Color
    Black
    Certifications
    CE, FCC, RoHS
    Dimensions
    19 x 12.8 x 5.3" / 482.6 x 323.9 x 133.4 mm
    Weight
    24.9 lb / 11.3 kg
    Packaging Info
    Package Weight
    29.935 lb
    Box Dimensions (LxWxH)
    23.4 x 17.4 x 9.6"

    All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
    $6,548.47

    Original: $21,828.23

    -70%
    Flock Audio PATCH XT 192-Channel Digital/Analog Patch System—

    $21,828.23

    $6,548.47
