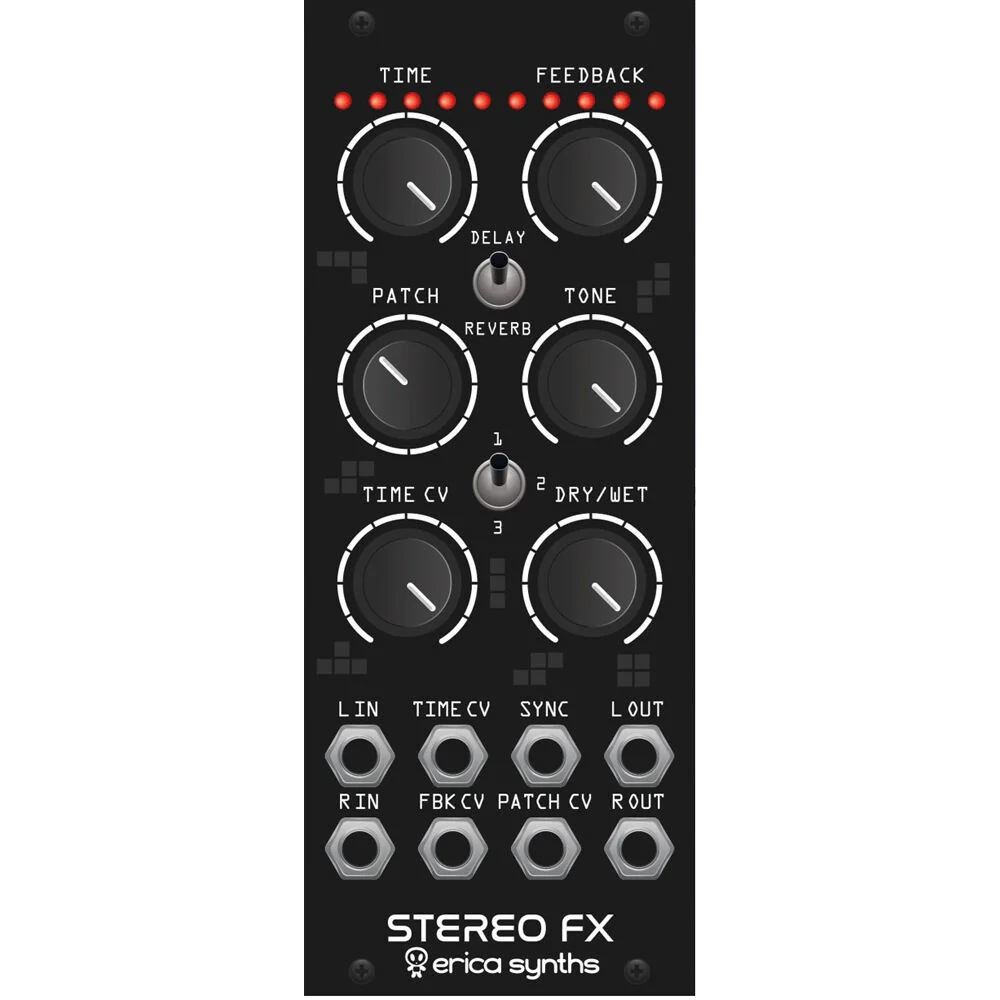

Erica Synths Drum Stereo FX Eurorack Module (10 HP)
HomeStore

Erica Synths Drum Stereo FX Eurorack Module (10 HP)

Erica Synths Drum Stereo FX Eurorack Module (10 HP)

Erica Synths 4752275000204 Overview

Add high-fidelity stereo effects to your drum modules with the erica synths Drum Stereo FX, a Eurorack module that provides a wide range of custom delay and reverb effects.

The new DSP engine was developed in collaboration with the Dutch company 112dB and provides 3 delays and 3 reverbs. The CV control over various parameters and the ability to save up to 10 presets will make this module an integral part of any performance rack. The module includes a power ribbon cable and a set of mounting screws.

At a Glance
  • Hi-Fi stereo FX module
  • 3 delay and 3 reverb effects
  • Tap and clock synchronization of delay time
  • Delay time divisions and multiplications in sync mode
  • Delay time: 3 ms to 3 sec
  • 10 preset patches
  • CV control over delay time, feedback, and preset selection
Eurorack Ready
  • 10 HP Eurorack format module
  • Maximum Depth: 1.4" (35mm)
  • Includes power ribbon cable with Eurorack power headers
  • Power consumption: +12V: 123mA, -12V: 40mA

In the Box

  • Erica Synths Drum Stereo FX Eurorack Module (10 HP)
  • Ribbon Power Cable
  • Set of Mounting Screws
  • Limited 2-Year Manufacturer Warranty

Not in the Box

Additional Resources

No additional resources available

Erica Synths 4752275000204Specs

Key Specs
Sound Generation
Analog/Digital Hybrid
Audio I/O
2x 1/8" / 3.5 mm TS Unbalanced Mono Instrument Input
2x 1/8" / 3.5 mm TS Unbalanced Mono Instrument Output
MIDI I/O
No
CV/Gate I/O
3x 1/8" / 3.5 mm TS CV Input
Patch Points
6x 1/8" / 3.5 mm TS Input
2x 1/8" / 3.5 mm TS Output
Eurorack Current Consumption
123 mA on +12 V Rail
40 mA on -12 V Rail
Horizontal Pitch
10 HP
Sound Generation
Analog/Digital Hybrid
Expression Controls
No
Number of Pads
No
Built-In Effects
3x Delay
3x Reverb
Built-In Speaker
No
Synthesis
Oscillators
No
Mixer
No
Amplifiers
No
Envelopes
No
Filters
No
LFOs
No
Sequencing & Recording
Sequencer
No
Arpeggiator
No
Connectivity
Audio I/O
2x 1/8" / 3.5 mm TS Unbalanced Mono Instrument Input
2x 1/8" / 3.5 mm TS Unbalanced Mono Instrument Output
MIDI I/O
No
CV/Gate I/O
3x 1/8" / 3.5 mm TS CV Input
Control Voltage Level
±5 V
Patch Points
6x 1/8" / 3.5 mm TS Input
2x 1/8" / 3.5 mm TS Output
Sync I/O
1x 1/8" / 3.5 mm TS Clock Input
Power
Power Requirements
Eurorack Power
Eurorack Current Consumption
123 mA on +12 V Rail
40 mA on -12 V Rail
Physical
Horizontal Pitch
10 HP
Included Accessories
No
Packaging Info
Package Weight
0.505 lb
Box Dimensions (LxWxH)
7.7 x 4.2 x 2.5"
