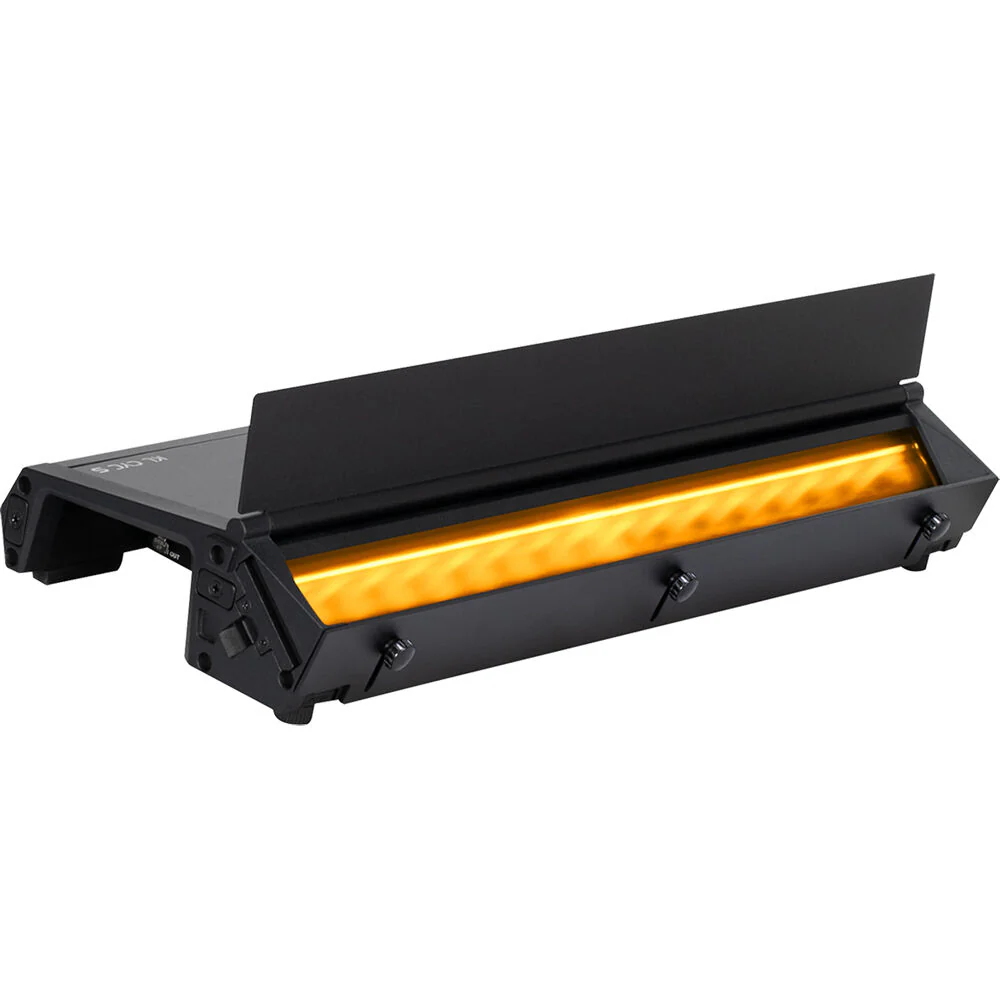

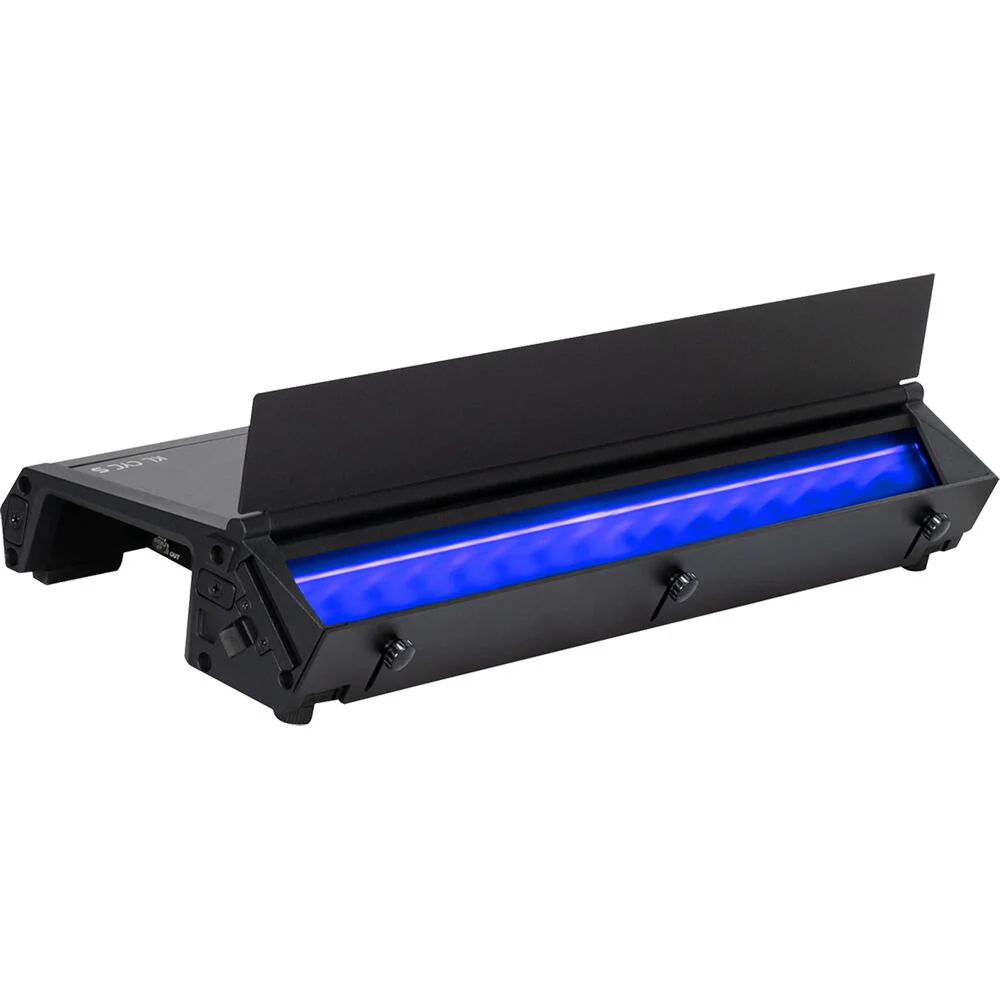

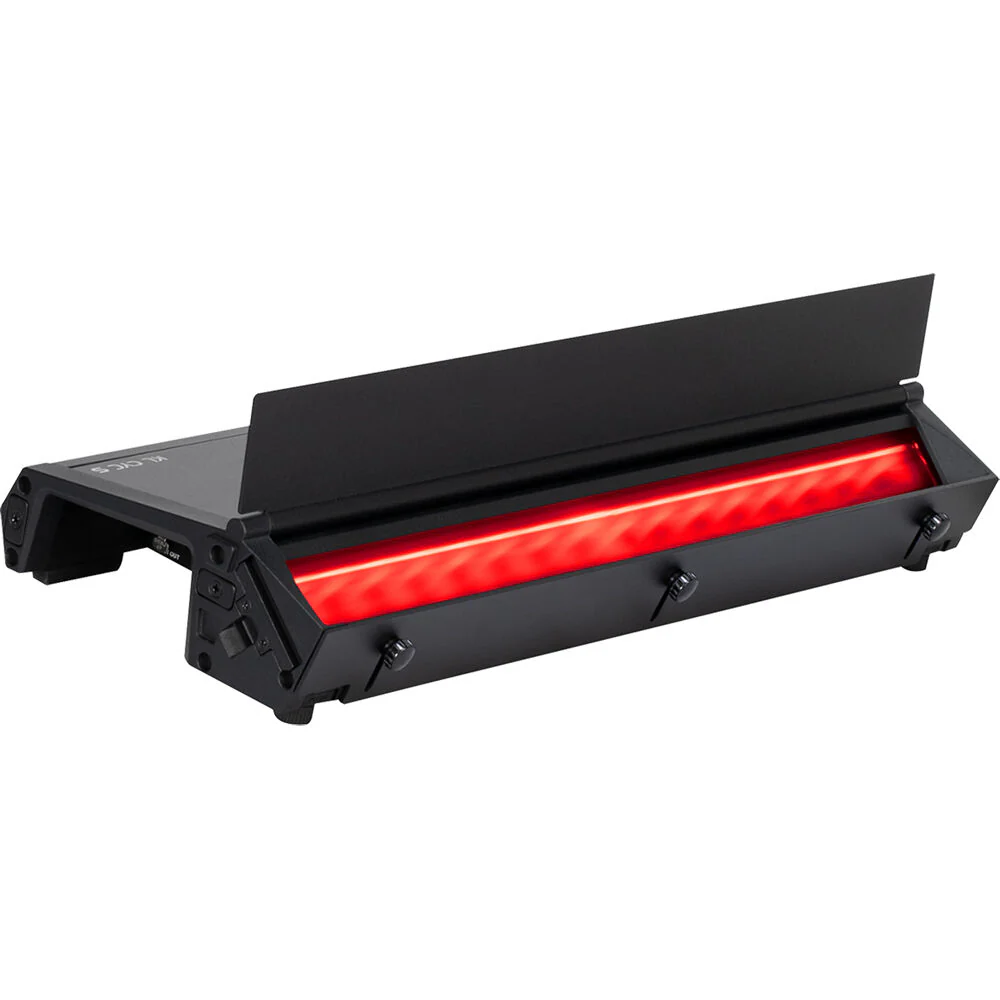

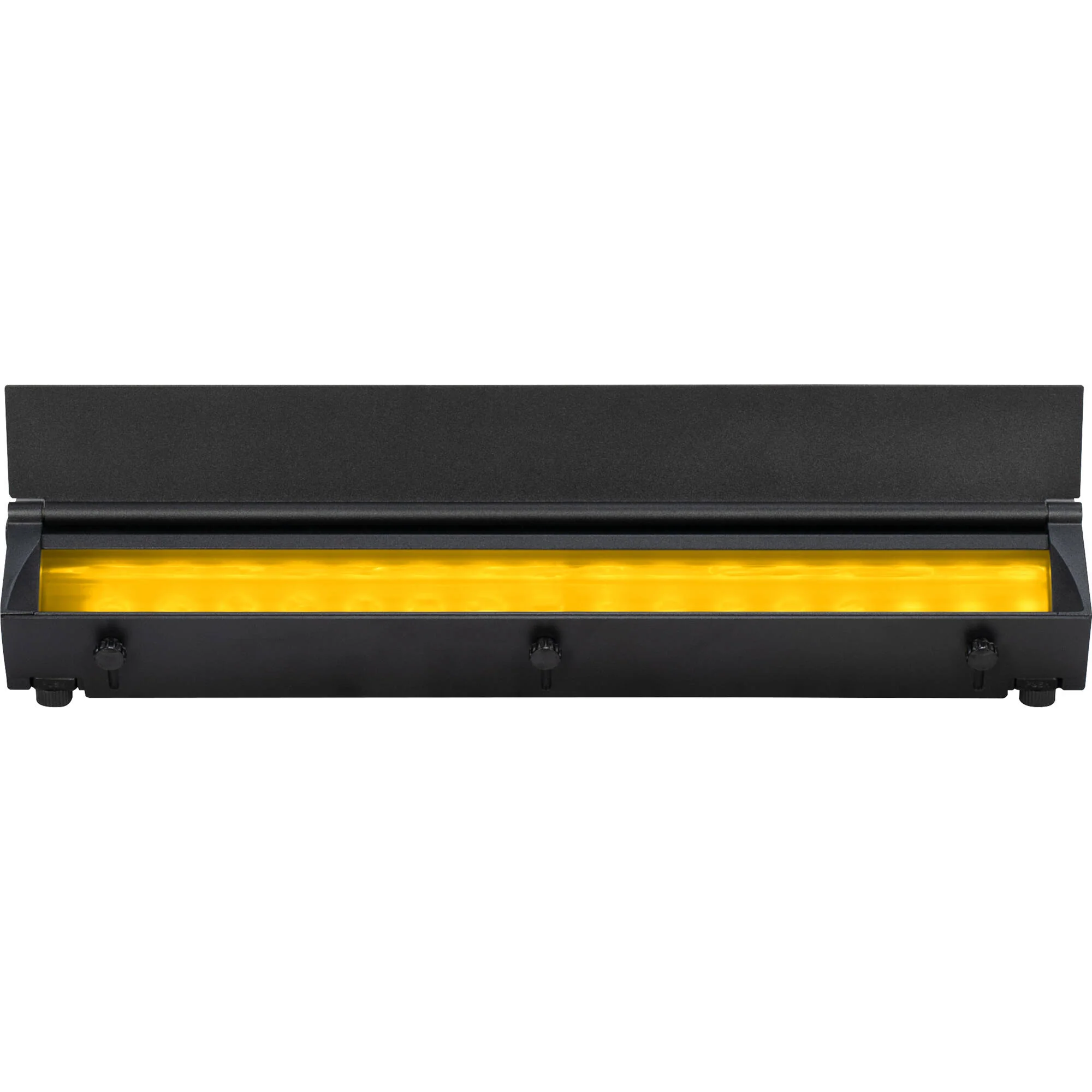

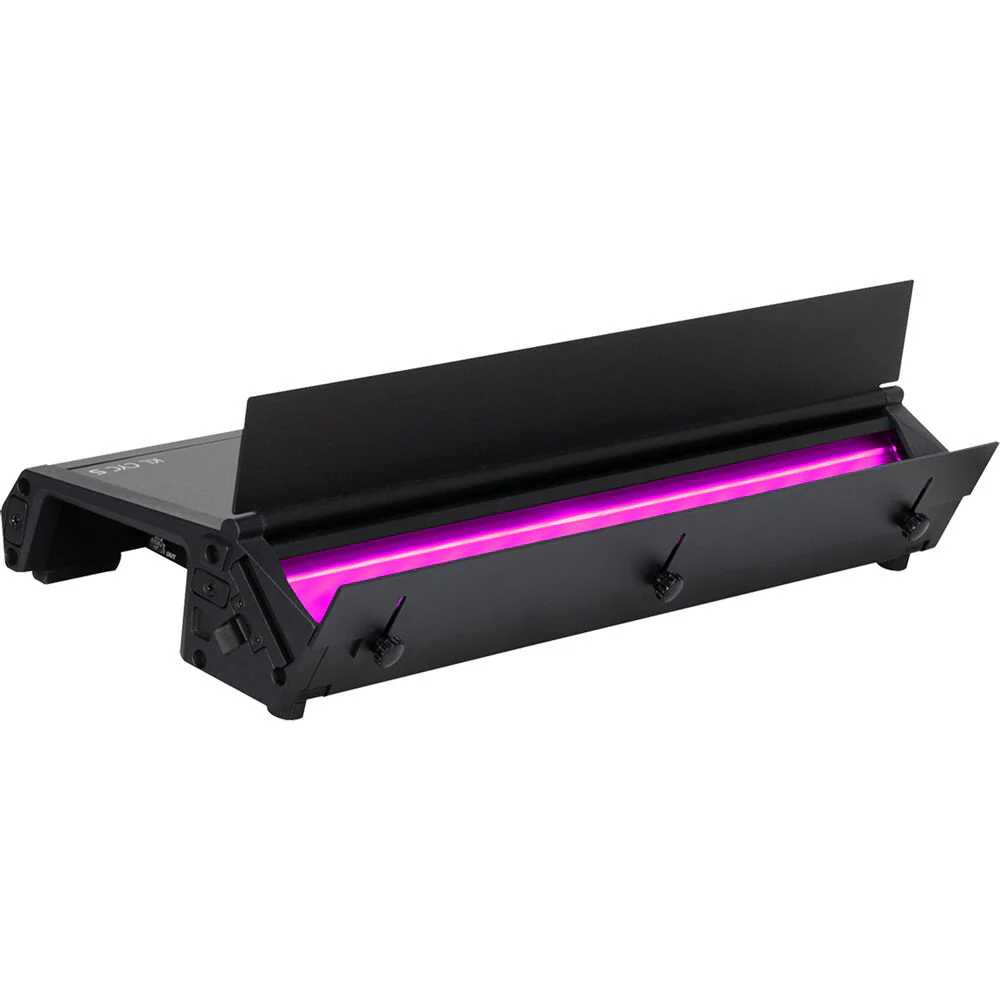

Elation Professional KL CYC S RGBMA LED Light and Fixture (1.6')
Elation Professional KL CYC S Overview
Ideal for lighting live events and theaters, the 1.6' KL CYC S RGBMA LED Light and Fixture from Elation Professional utilizes a 2400-8500K color temperature range to create a wide variety of colors and evenly illuminated cyclorama with 66 lux at 9.8' at 5600K. The 8.1 x 19.9" fixture is designed with a low-profile floor base, an omega bracket, and feet to illuminate low spaces. Fanless, the fixture operates quietly for uninterrupted performances. The fixture's included barndoors and filter offer more ways to fine-tune your lighting setup. Offering wireless DMX512, RDM, Art-Net, and sACN connection options, the fixture is easy to set up and integrate into your existing workflow.
Wireless Connection Options
The KL CYC S has 11 DMX channel modes and 5-pin DMX inputs and outputs. The four-button control panel with LED display is simple to control and connect. In addition to its remote device management, the fixture also has Art-Net and sACN support.
Proven RGBMA Color System
Designed to blend seamlessly with existing gear, the KL CYC S can accurately color-match other light fixtures in the KL and Fuze ranges. This fixture gives lighting designers more flexibility and opportunities to create unique lighting setups, including:
- Calibrated color temperature controls
- Green shift adjustment
- CMY and RGB emulation modes
EdgeLight Safety Light
To better assist performers on stage, the KL CYC S can produce a safety light in red or blue that can be turned on during emergencies or if the DMX signal is lost.
Additional Features
KL CYC S's 180W RGBMA LED array creates stunning lighting effects with its unique features, including:
- Asymmetrical reflector design, a replaceable lens, and magnetic fixture alignments for easy setups
- Up to four control segments and flicker-free operation for TV and film
- Color accuracy ratings: CRI 92 and TLCI 95
- Light approvals and certifications: CE, cETLus, FCC, and UKCA
- Variable 16-bit dimming modes and curves
UPC: 810008263983
Items Included
- Elation Professional KL CYC S RGBMA LED Light and Fixture (1.6')
- Omega Bracket
- Frost Filter
- Barndoors
- IP65 Locking Power Cable
- Limited 5-Year Manufacturer Warranty
Additional Resources
Elation Professional KL CYC S Specs
Key Specs
| Fixture Type |
Cyc Light
|
| Light Source |
Color LED - 90 W
|
| Colors |
Amber, Blue, Green, Mint, Red
|
| Pixel Configuration |
2x Zone
|
| Beam Angle |
40 x 90° (with Filter)
25 x 75° (without Filter) |
| Control Protocols |
DMX512, RDM, Art-Net, sACN
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| Power / Current Consumption |
100 W
|
| Mounting |
Floor Base, Omega Bracket
|
Light
| Fixture Type |
Cyc Light
|
| Light Source |
Color LED - 90 W
|
| Expected Lamp Life |
30,000 Hours
|
| Colors |
Amber, Blue, Green, Mint, Red
|
| Pixel Configuration |
2x Zone
|
| Photometrics |
3200K:
6 fc / 67 Lux at 9.8' / 3 m 2 fc / 24 Lux at 16.4' / 5 m 5600K: 6 fc / 66 Lux at 9.8' / 3 m 2 fc / 24 Lux at 16.4' / 5 m |
| Color Temperature |
2400 to 8500K
|
| Lumen Output |
5645 Lumens
|
| Beam Angle |
40 x 90° (with Filter)
25 x 75° (without Filter) |
| Field Angle |
85 x 160° (with Filter)
80 x 125° (without Filter) |
| Shutter / Strobe |
Electronic
|
| Iris |
No
|
| Focus |
Manual
|
| Zoom Adjustment |
No
|
| Dimming |
16-Bit Electronic, 0 to 100%
|
Performance
| Operating Modes |
DMX, Primary/Secondary, Standalone
|
| Macros / Programs |
Color Macro
|
| Effects |
Strobe
|
| Gobos |
No
|
| Color Accuracy Index |
CRI: 92
TLCI: 95 |
| Refresh Rate |
900 Hz to 25 kHz
|
Control
| Control Protocols |
DMX512, RDM, Art-Net, sACN
|
| DMX Channel Modes |
11 Mode(s):
1 / 4 / 11 / 12 / 13 / 16 / 19 / 20 / 32-Channel |
| Display / Controls |
LED / 4-Button
|
| Remote Control |
No
|
| Mobile App Compatible |
No
|
Connectivity
| Inputs/Outputs |
1 x XLR 5-Pin DMX Input
1 x XLR 5-Pin DMX Output 1 x RJ45 Network Input 1 x RJ45 Network Output |
| Wireless |
No
|
Power
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| AC Power Connector |
Input: 1x Seetronic IP-Rated
Output: 1x Seetronic IP-Rated |
| Fuse |
T 3 A 250 V
|
| Power / Current Consumption |
100 W
|
Physical
| Environmental Resistance |
No
|
| Operating Conditions |
5 to 113°F / -15 to 45°C
|
| Mounting |
Floor Base, Omega Bracket
|
| Included Accessories |
1x Barn Doors
1x Filter |
| Duty Cycle |
No
|
| Exterior Color |
Black
|
| Certifications |
CE, cETLus, FCC, UKCA
|
| Dimensions |
19.9 x 8.1 x 3.4" / 50.5 x 20.6 x 8.6 cm
|
| Weight |
7.7 lb / 3.5 kg
|
Packaging Info
| Package Weight |
13.5 lb
|
| Box Dimensions (LxWxH) |
23.2 x 11.6 x 6.2"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
