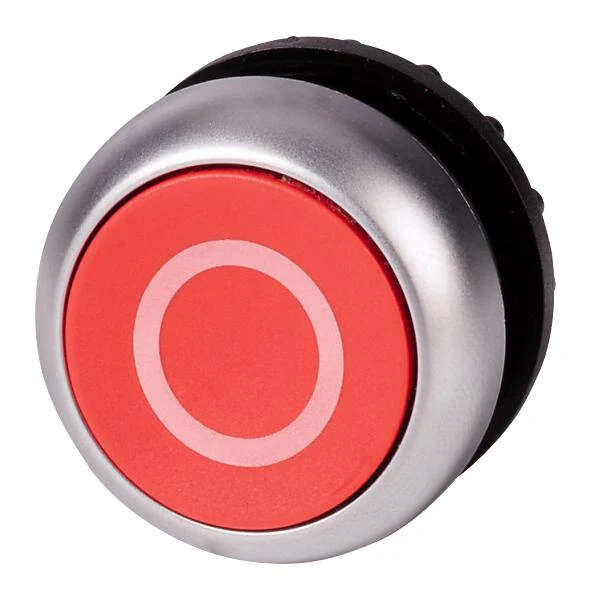

EATON MOELLER M22-D-R-X0 Switch Actuator, Moeller M22 Series Modular Pushbutton Switchers, IP67, IP69K, NEMA 4X, NEMA 13
EATON MOELLER M22-D-R-X0 Switch Actuator, Moeller M22 Series Modular Pushbutton Switchers, IP67, IP69K, NEMA 4X, NEMA 13
Product Overview
M22-D-R-X0 is an Eaton Moeller® series M22 pushbutton. It is certified by CSA File No.: 012528, UL File No.: E29184, UL, CSA Std. C22.2 No. 94-91, CSA-C22.2 No. 94-91, EN 60947-5, LR, GL, CSA, UL 508, CSA Std. C22.2 No. 14-05, DNV, IEC 60947-5, IEC/EN 60947-5, UL Category Control No.: NKCR, CSA Class No.: 3211-03, IEC/EN 60947, VDE, VDE 0660, CSA-C22.2 No. 14-05.
- Titanium bezel colour, plastic bezel material
- Classical flush design, fitted with front ring
- 5,000,000 operations mechanical lifespan
- NEMA 4X, NEMA 3R, IP66, NEMA 13, IP67, IP69K, NEMA 12 degree of protection
- 3600 operations/h operating frequency, suitable for illumination
- 5N actuating force, red actuator colour, spring-return/momentary actuator function
- Product dimension is 30 x 30 x 30mm (L x H x W)
- Ambient operating temperature range from -25 to 70°C
Product details
Other details
| Brand | EATON MOELLER |
| Part Number | M22-D-R-X0 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
