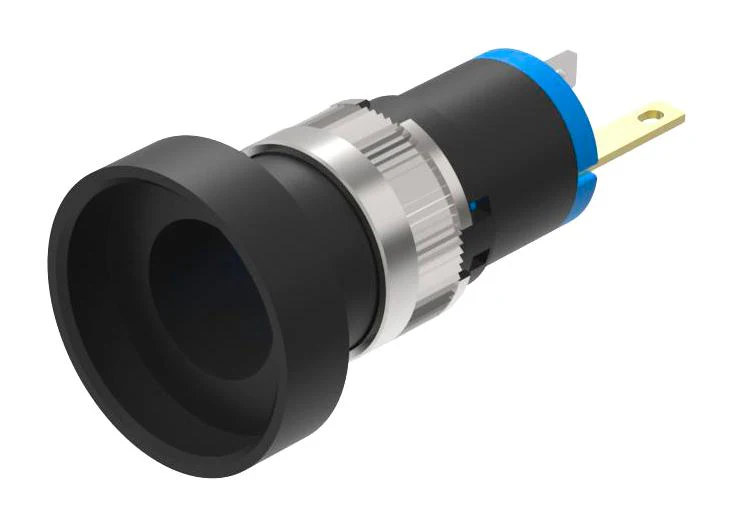

EAO 18-167.035 Pushbutton Switch, 18 Series, 16.2 mm, SPST-NO, Momentary, Round Flush
- Pushbutton switch with round actuator
- Flush design, � 19mm front dimension, round front form
- IP40 IP front protection, 1 NO contacts, gold contact material
- Black front bezel color, plastic front bezel material
- Black housing color, plastic housing material
- Illuminative lens, momentary switching action, 0.1A switching current
- Snap-action switching element system, 42V switching voltage
- Soldering terminal, 42V at 0.1A switching rating
Product details
| Product Range: 18 Series |
| Panel Cutout Diameter: 16.2mm |
| Contact Configuration: SPST-NO |
| Switch Operation: Momentary |
| Pushbutton Actuator Style: Round Flush |
| Actuator / Cap Colour: - |
| Contact Current AC Max: 100mA |
| Contact Voltage VAC: 42V |
| Contact Current DC Max: 100mA |
| Contact Voltage VDC: 42V |
| IP Rating: IP40 |
| Switch Mounting: Panel Mount |
| Switch Terminals: Solder Lug |
| Illumination Colour: - |
| Panel Cutout (H x W): - |
Other details
| Brand | EAO |
| Part Number | 18-167.035 |
| Quantity | Each |
| Technical Data Sheet EN |  |
