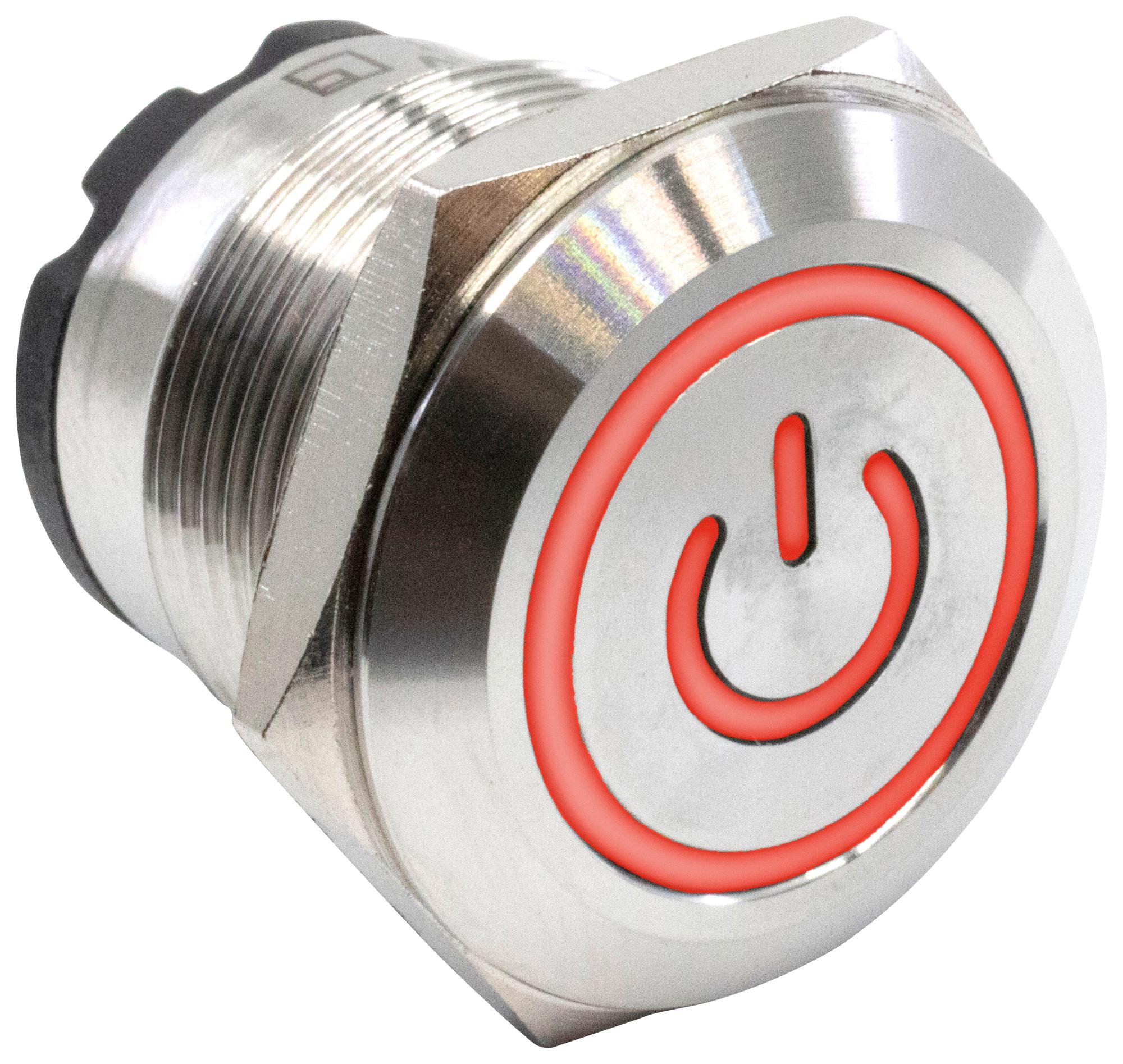

E-SWITCH PVHC4F23SS615 Vandal Resistant Switch, 24V LED Ring/Power, PVHC4 Series, 19 mm, SPST-NO-DM, Off-On, Round Flat
E-SWITCH PVHC4F23SS615 Vandal Resistant Switch, 24V LED Ring/Power, PVHC4 Series, 19 mm, SPST-NO-DM, Off-On, Round Flat
Product Overview
PVHC4F23SS615 is a PVHC4 series, anti-vandal switch. It provides durability and security in a sleek and modern package (19mm diameter panel cutout). Dependability meets visual appeal with an IP67 rating. The electrical life is an impressive 50,000 cycles, and the switch has an operating/storage temperature of -40°C to 85°C.
- Flat actuator, solder lug terminal
- 1P Off-On function, stainless steel body finish, stainless steel actuator finish
- Silver contact material, ring/power symbol Illumination lens style
- Red LED colour, 24V illumination voltage
- 20A, 250VAC/25A, 30VDC electrical rating
- 100Mohm at 500VDC insulation resistance, 1,500VAC dielectric strength
- 6N actuation force, 1-6mm panel thickness
Product details
Other details
| Brand | E-SWITCH |
| Part Number | PVHC4F23SS615 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
