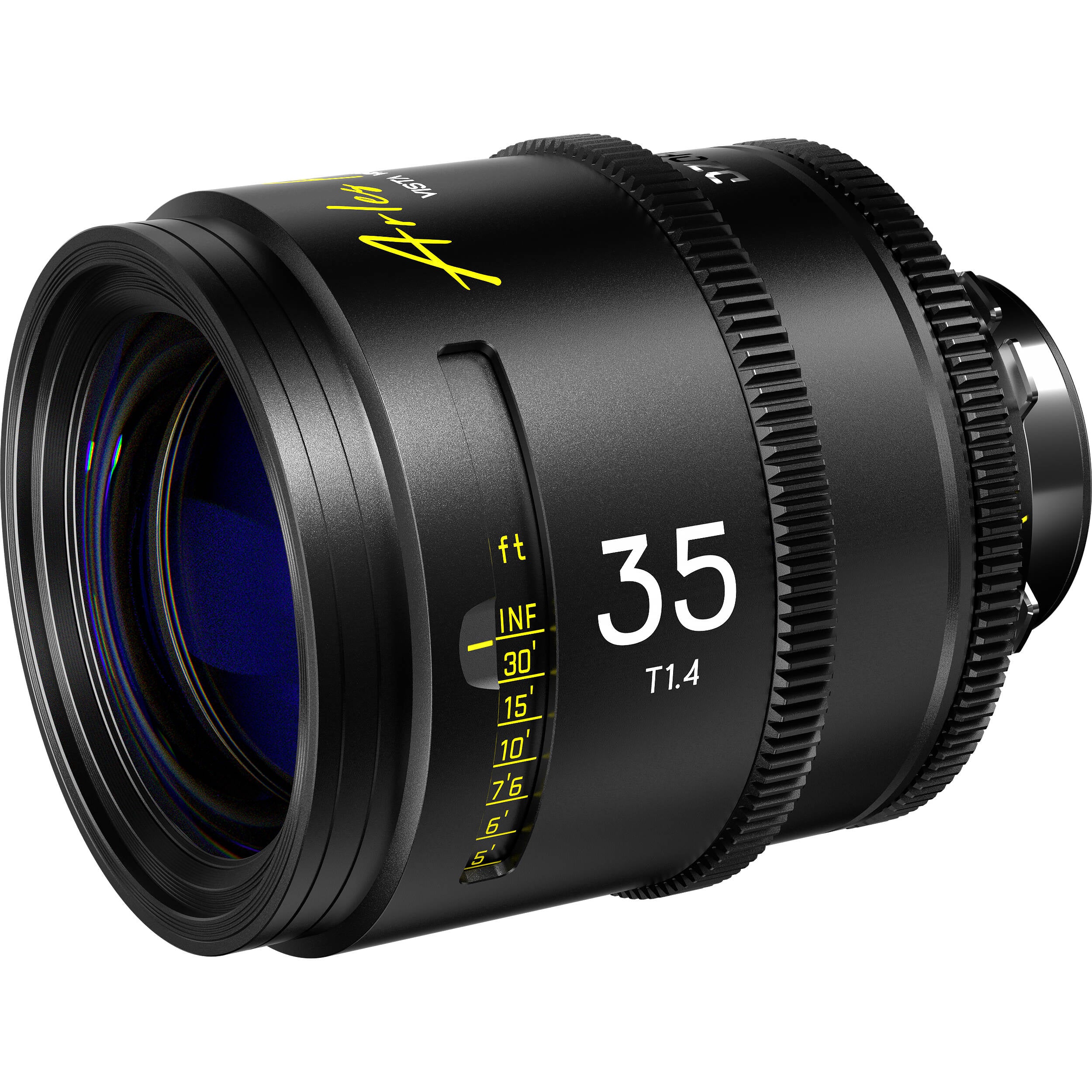

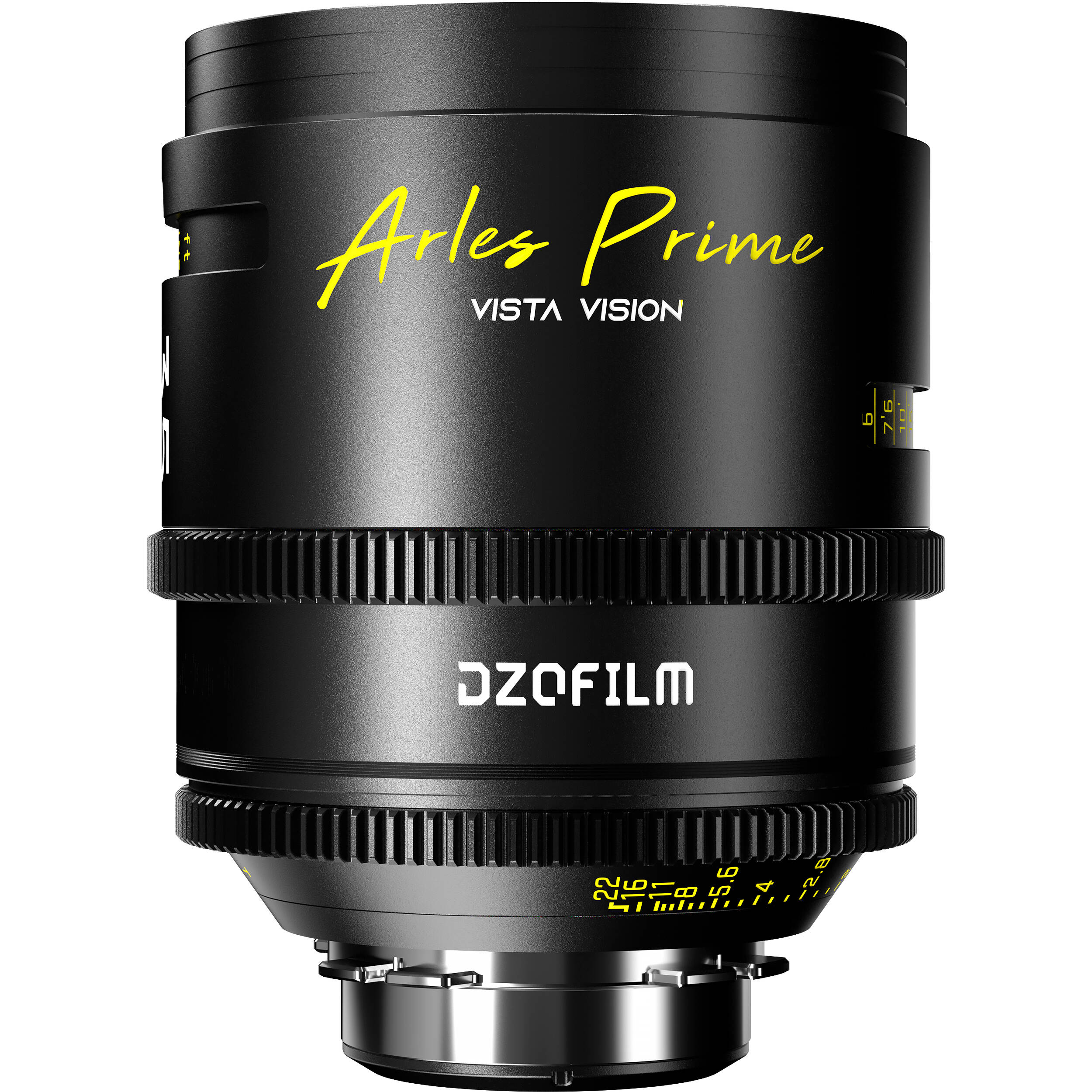

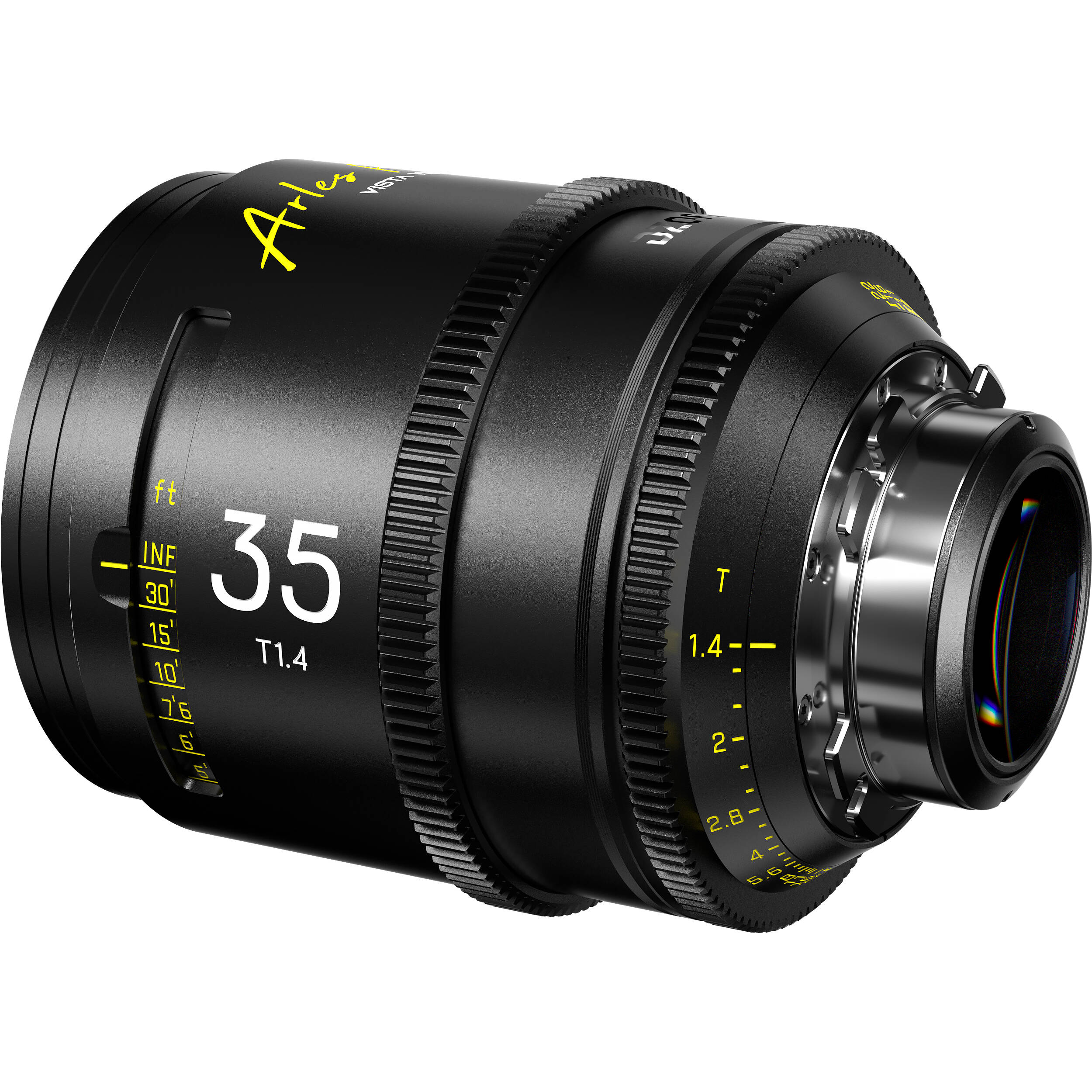

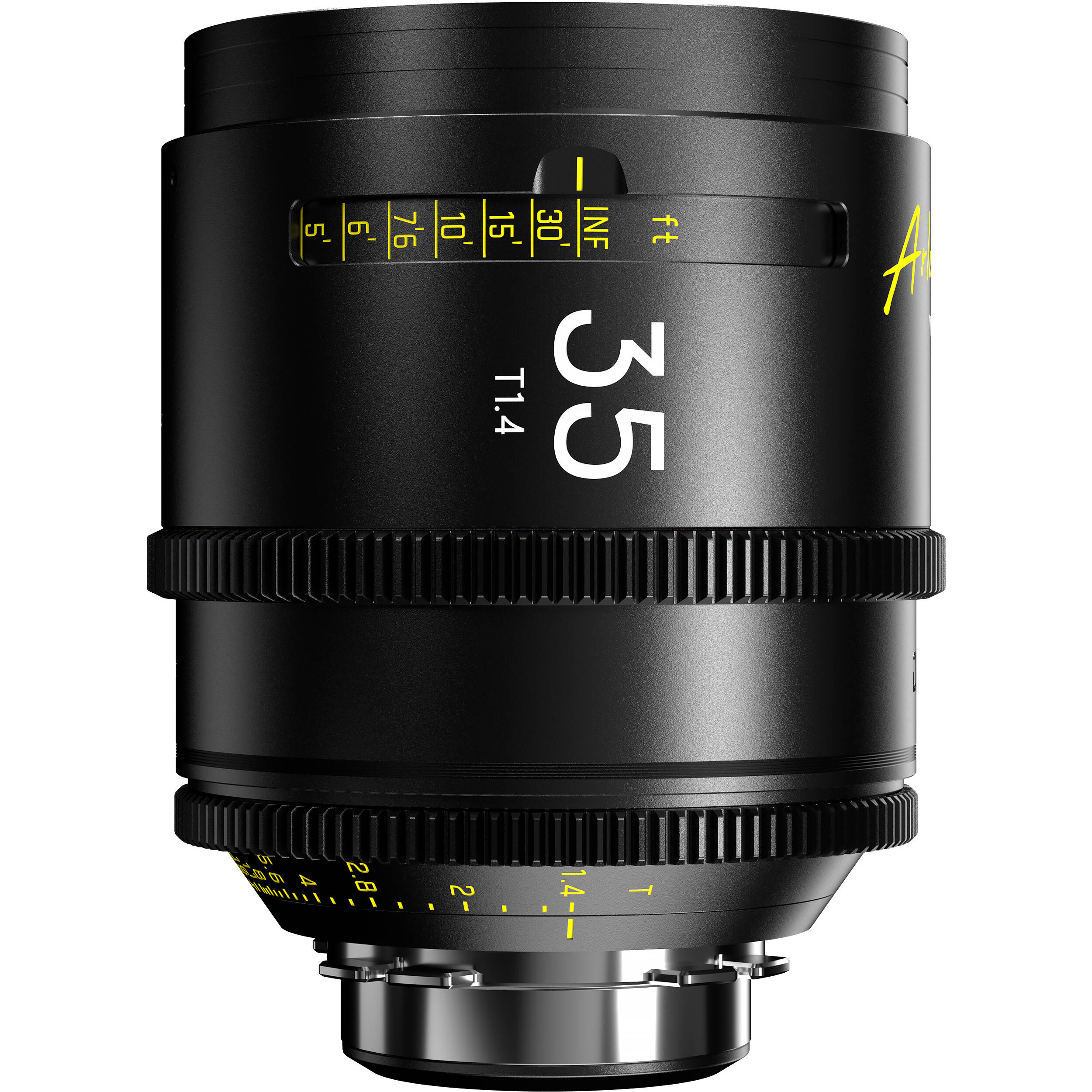

DZOFilm Arles 35mm T1.4 FF/VV Prime Cine Lens (ARRI PL)
DZOFilm ARLES 35mm T1.4 (ft) Overview
Equip your full-frame ARRI PL-mount camera with the Arles 35mm T1.4 FF/VV Prime Cine Lens from DZOFilm to capture cine-style images thanks to its improved features. This prime lens has an aperture range of T1.4 to T22 to achieve a wide depth of field. A 16-blade iris and optical construction of 14 elements in 12 groups provide a soft, natural bokeh to your high-quality imagery. The focus ring rotates 270°, and the iris ring 80° for intuitive manual adjustments.
The lens features a 67.15° diagonal field of view to ensure your subject remains in the frame. A 95mm outside diameter and M86 filter thread allow you to incorporate different matte boxes or filters into your camera configuration. The lens has a cine-style design with 0.8 MOD focus and aperture gears. Thanks to similar gearing and outside diameters across the range of lenses, switching between focal lengths is a breeze.
- T1.4 to T22 aperture range
- 95mm outside diameter, 16-blade aperture
- Optical construction of 14 elements in 12 groups
- 270° focus rotation, 80° iris rotation
- 13.78" minimum focus distance
- 46.5mm image circle
- M86 filter thread
Items Included
- DZOFilm Arles 35mm T1.4 FF/VV Prime Cine Lens (ARRI PL)
- Front Cap
- PL Rear Cap
- Shim Set
- Support Base
- Support Rod
-
Limited 1-Year Manufacturer Warranty
Registration Extension: 18-Month
Additional Resources
DZOFilm ARLES 35mm T1.4 (ft) Specs
| Focal Length |
35mm
|
| Maximum Aperture |
T1.4
|
| Lens Mount |
ARRI PL
|
| Lens Format Coverage |
Full Frame
|
| Filter Thread |
86 mm
|
| Image Stabilization |
No
|
| Maximum Aperture |
T1.4
|
| Minimum Aperture |
T22
|
| Lens Mount |
ARRI PL
|
| Lens Format Coverage |
Full Frame
|
| Image Circle |
46.5 mm
|
| Angle of View |
Full Frame
Horizontal: 61.1° Vertical: 34.23° Diagonal: 67.15° |
| Focus Scales |
Imperial
|
| Optical Design |
14 Elements in 12 Groups
|
| Filter Thread |
86 mm
|
| Minimum Focus Distance |
From Camera Sensor: 13.78" / 0.35 m
|
| Diaphragm Blades |
16
|
| Image Stabilization |
No
|
| Gear Standard |
Focus: 0.8 MOD
Iris: 0.8 MOD |
| Gear Rotation |
Focus: 270° (Manual Only)
Iris: 80° (Manual Only) |
| Coating |
Multi-Coating
|
| Environmental Resistance |
No
|
| Diameter |
3.7" / 95 mm
|
| Length |
4.8" / 121 mm
|
| Weight |
3.6 lb / 1650 g
|
| Package Weight |
5.73 lb
|
| Box Dimensions (LxWxH) |
12.9 x 7 x 6.9"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
