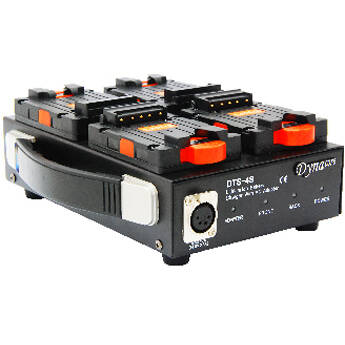

Dynacore DTS-4S Portable Quad V-Mount Charger for Tiny Series Batteries
Dynacore DTS-4S Overview
Simultaneously charge four high-capacity Tiny batteries quickly while powering another device using this DTS-4S Portable Quad V-Mount Charger from Dynacore. This four-bay V-mount battery charger is aimed at location shoots, rental facilities, broadcast trucks, equipment depots, or productions that require multiple batteries to be charging and ready to go.
The DTS-4S can simultaneously charge up to four Tiny V-mount batteries at 1.3A each, such as the DPM-98S, or up to two regular-size V-mount batteries at 3A. Four 98Wh Tiny batteries charge to full in approximately 4.5 hours. It features a tabletop design with a side carry handle, making it easy to transport. The 4-pin XLR output allows you to power a camera or accessory while you are charging batteries, and it provides 14.8 VDC, 3A of power output.
Items Included
- Dynacore DTS-4S Portable Quad V-Mount Charger for Tiny Series Batteries
- Power Cable
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
Dynacore DTS-4S Specs
| Charger Compatibility |
V-Mount
|
| Charger Power Source |
AC Power (Cable Included)
|
| Charger Power I/O |
1x IEC Female Input
� 90 to 240 VAC, 50 / 60 Hz 1x XLR 4-Pin Female Output � 14.8 VDC at 3 A |
| Charger Compatibility |
V-Mount
|
| Number of Battery Bays |
4
|
| Multi-Bay Charging Modes |
Simultaneous
|
| Charger Power Source |
AC Power (Cable Included)
|
| Charger Power I/O |
1x IEC Female Input
� 90 to 240 VAC, 50 / 60 Hz 1x XLR 4-Pin Female Output � 14.8 VDC at 3 A |
| Battery Output Voltage |
16.8 VDC at 1.3 A (Four Batteries)
16.8 VDC at 3 A (Two Batteries) |
| Recharge Time |
4.5 Hours (98 Wh Batteries)
|
| Indicator |
LED
|
| Dimensions |
8.5 x 6.6 x 3.4" / 215 x 168 x 87 mm
|
| Weight |
3.7 lb / 1.7 kg
|
| Package Weight |
4.355 lb
|
| Box Dimensions (LxWxH) |
11 x 9.1 x 5"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
