CyberPower PR750LCDRT1U Smart App Sinewave UPS (750VA/600W)
HomeStore

CyberPower PR750LCDRT1U Smart App Sinewave UPS (750VA/600W)

CyberPower PR750LCDRT1U Smart App Sinewave UPS (750VA/600W)

The CyberPower PR750LCDRT1U Smart App Sinewave UPS (750VA/600W) features a LCD panel, offers a sine wave output, and is active PFC compatible for safeguarding mission-critical servers, telecom equipment and VoIP, and internetworking hardware that require seamless pure sine wave power. It incorporates a microprocessor-based digital control and includes the PowerPanel Business edition software. The UPS system is ENERGY STAR qualified with GreenPower UPS Bypass circuitry to reduce energy consumption and heat build-up.

Suitable for servers, workstations, network devices, and telecom equipment
Capacity of 750VA/600W
Line Interactive Topology
Full AVR (Automatic Voltage Regulation) Buck/Boost
AVR (Automatic Voltage Regulation) provides battery back-up power if the voltage drops below 80V or exceeds 150V
GreenPower UPS
1U rack mount/tower convertible
Multi-function LCD panel
SNMP/HTTP remote management
7 Outlets / USB, serial, and EPO ports
EMI/RFI filtration
PowerPanel Business edition software
ENERGY STAR qualified and Active PFC compatible
In the Box
CyberPower PR750LCDRT1U Smart App Sinewave UPS (750VA/600W)
  • 2 x Rack Mount Bracket
  • 2 x Wall Mount Bracket
  • 2 x Stand
  • Emergency Power Off Cable (Gray)
  • PowerPanel Business Edition Software CD
  • Serial Interface Cable (RJ45/DB-9)
  • USB A+B type Cable
  • Limited 3-Year Warranty
General
UPS Topology Line Interactive
Energy Saving GreenPower UPS bypass technology
Input
Voltage Nominal 120 V
Input Frequency 57-63 Hz � 1%
Voltage Range 80 to 150 VAC
Plug Type NEMA 5-15P
Plug Style Right angled, 45� offset right
Cord Length 10' (3 m)
Output
VA 750
Watts 600
Automatic Voltage Regulation (AVR) Boost 1: +30%, Boost 2: +14%
Buck: -12%
On Battery Voltage 120 VAC � 5%
On Battery Frequency 60 Hz � 1%
On Battery Waveform Sine wave
Outlets Total: 7
Battery & Surge Protected: 6
Critical Load: 3
Surge-Only Protected: 1
Outlet Type NEMA 5-15R
Power Factor Rated: 0.8
Overload Protection Internal circuitry limiting / circuit breaker
Transfer time 10 ms
Battery
Runtime 10 minutes at half load
3 minutes at full load
Battery Type Sealed lead-acid
Battery Size 6 V/7 Ah
Hot Swappable Yes
Replacement Battery RB0670X4A
User Replaceable Yes
Battery Quantity 4
Typical Recharge Time Less than 6 hours (90% charged)
Surge Protection / Filtering
Surge Suppression 1030 joules
Management and Communications
LCD Multifunction LCD Panel
Displays: Load/Current Level, Runtime, Battery Level, Temperature (F & C), Battery In Use, Input Voltage, Output Voltage, Output Frequency, Overload, Wiring Fault, Battery Shutdown Voltage, Static Frequency Tolerance, Slew Rate, Silent Mode, Normal Mode
HID Compliant USB Port Yes
Serial Port Yes
EPO Port Yes
Management Cable USB cable, Serial cable, EPO cable
LED Indicators Power On, Wiring Fault
Alarms Audible: On Battery, Low Battery, Overload
Software PowerPanel Personal edition
SNMP/HTTP Remote Monitoring Yes, with optional RMCARD202, RMCARD203 or RMCARD205
Environmental
Operating Temperature 32 to 104�F (0 to 40�C)
Operating Humidity 0 to 95% non-condensing
Storage Temperature 5 to 113�F (-15 to 45�C)
Maximum Operating Elevation 10,000' (3000 m)
Maximum Storage Elevation 50,000' (15000 m)
Thermal Dissipation AC Mode: 46 BTU/hr
Certifications
Safety UL1778, CSA C22.2 NO.107.3-05
FCC DOC Class A
Compliance RoHS
Physical
Rack Size 1U
Form Factor Rack/tower
Dimensions (W x H x D) 17.25 x 1.75 x 15.8" (438.15 x 44.45 x 401.3 mm)
Weight 30.7 lb (13.92 kg)
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
$397.76

Original: $1,325.88

-70%
CyberPower PR750LCDRT1U Smart App Sinewave UPS (750VA/600W)—

$1,325.88

$397.76

More Images

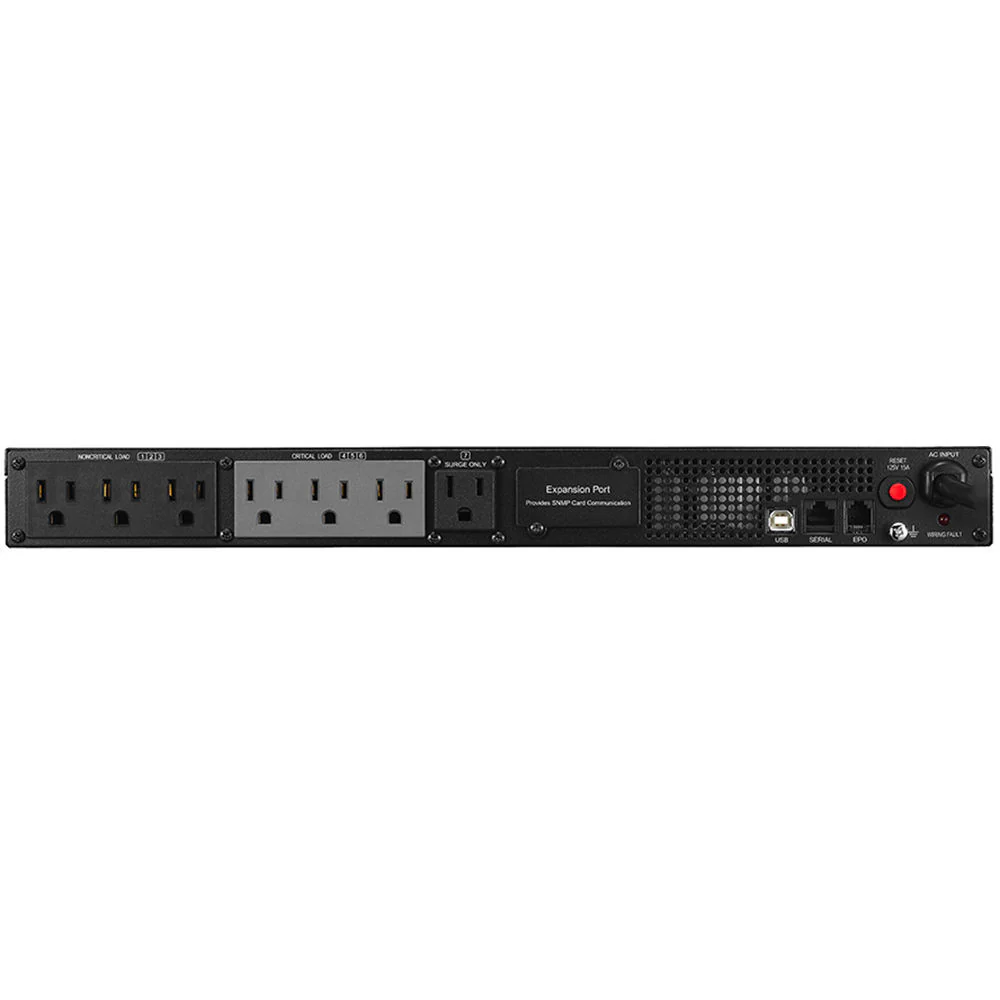

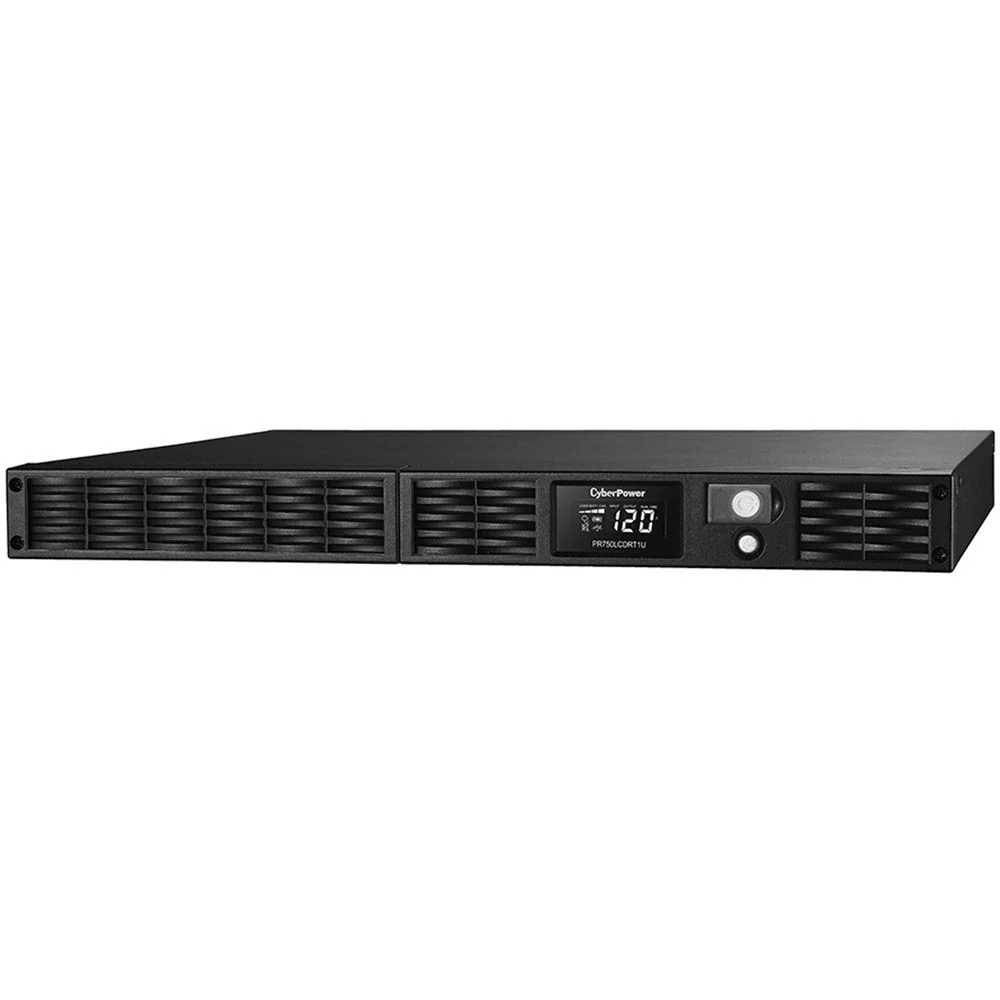

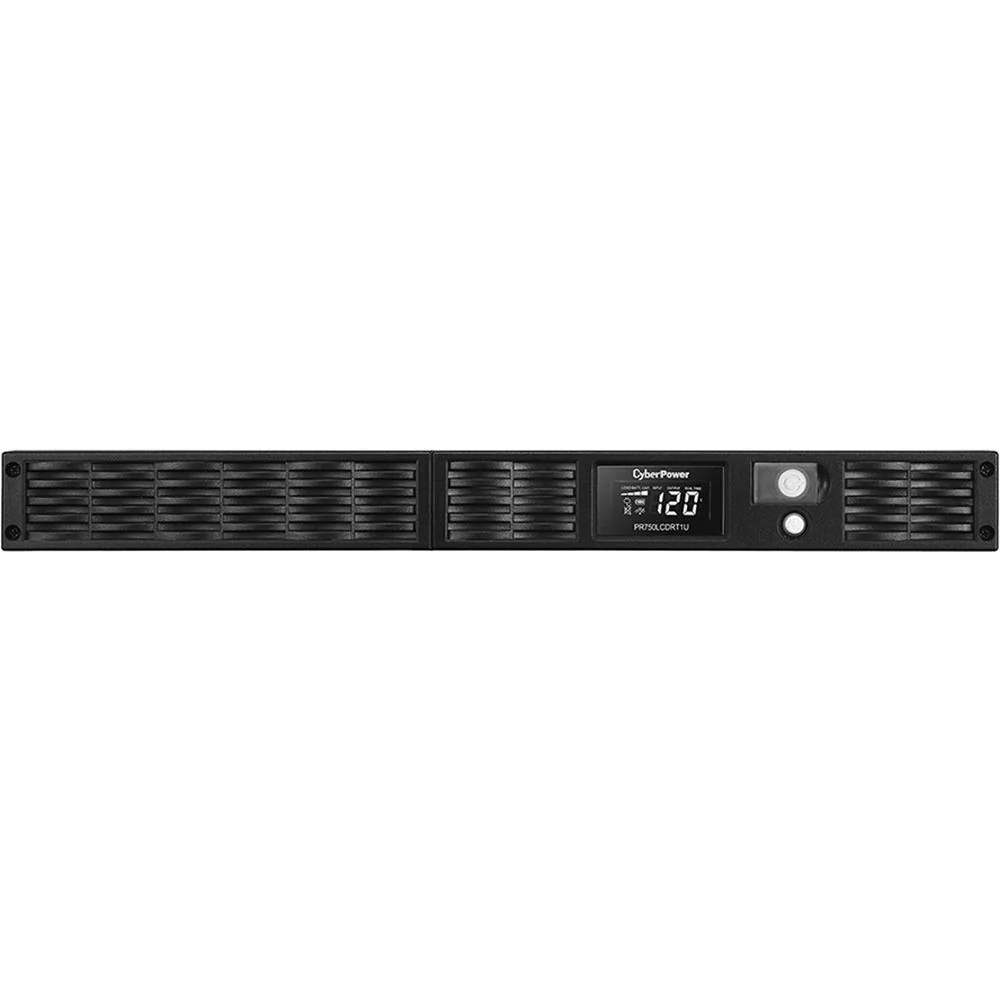

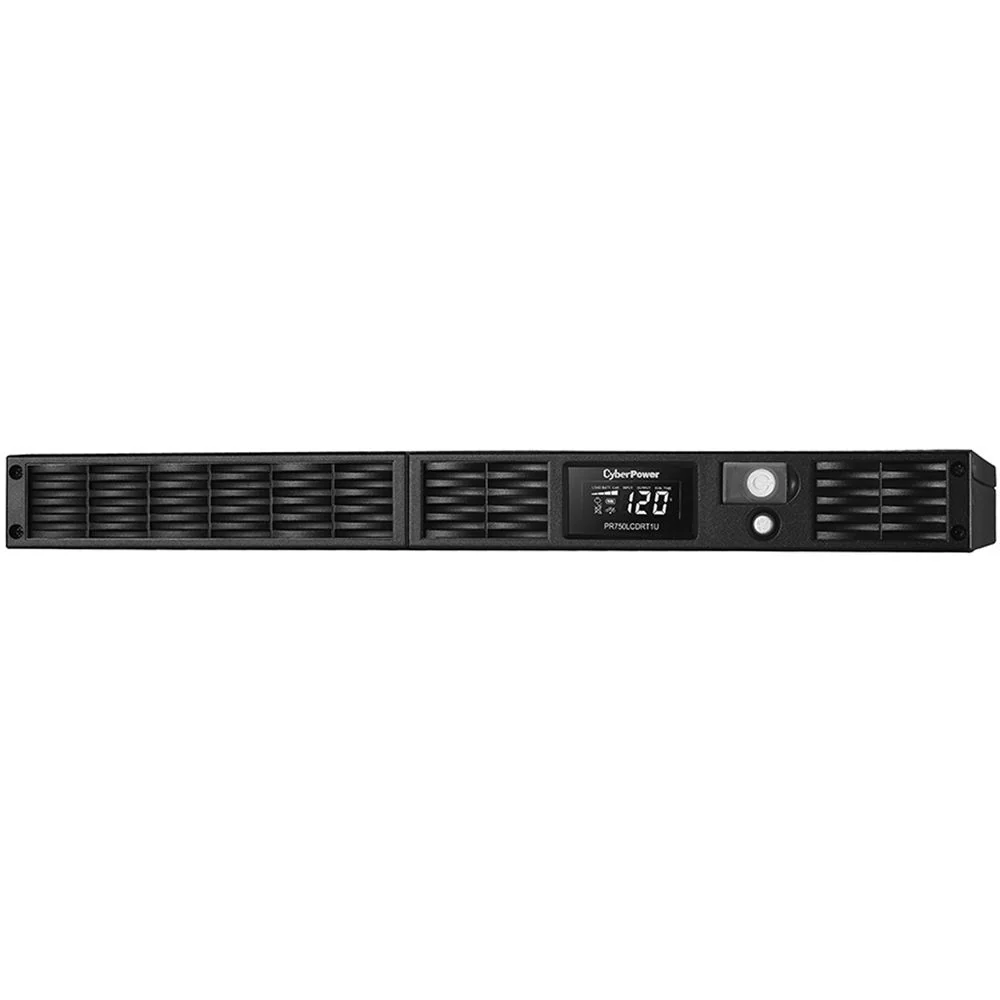

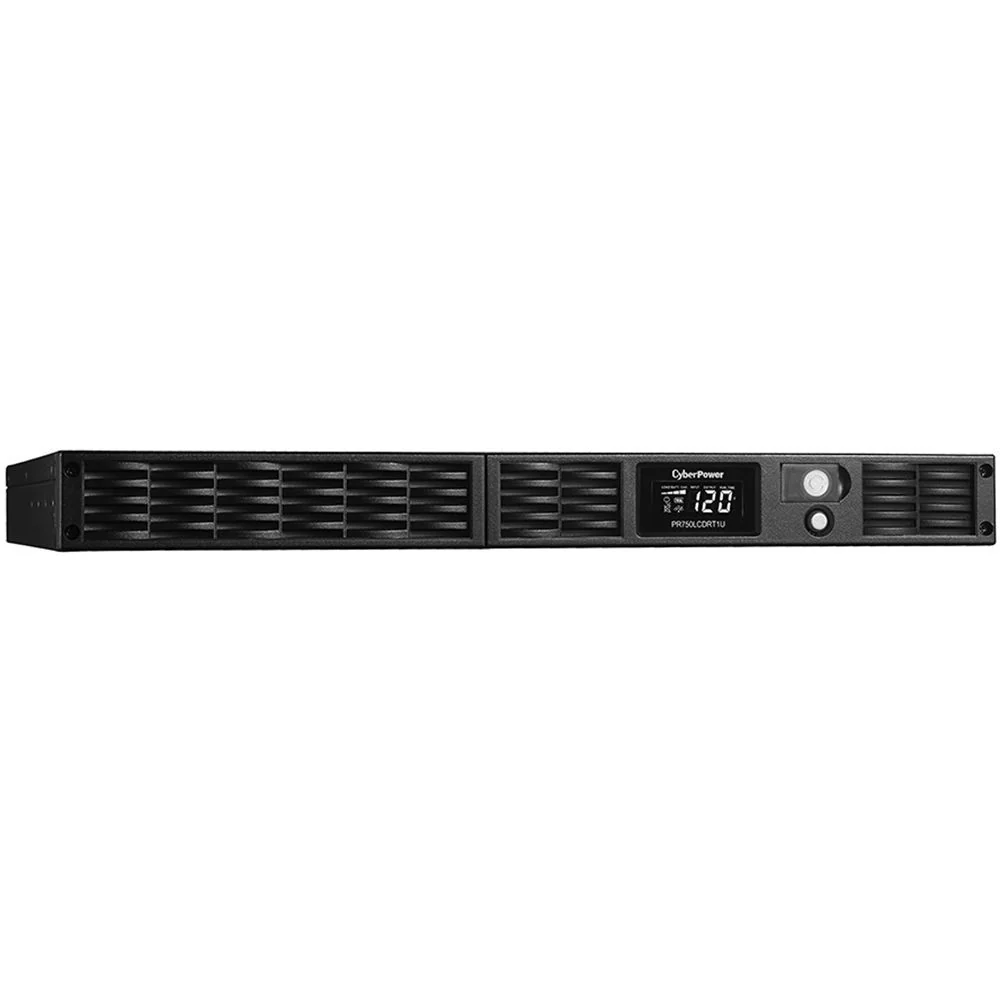

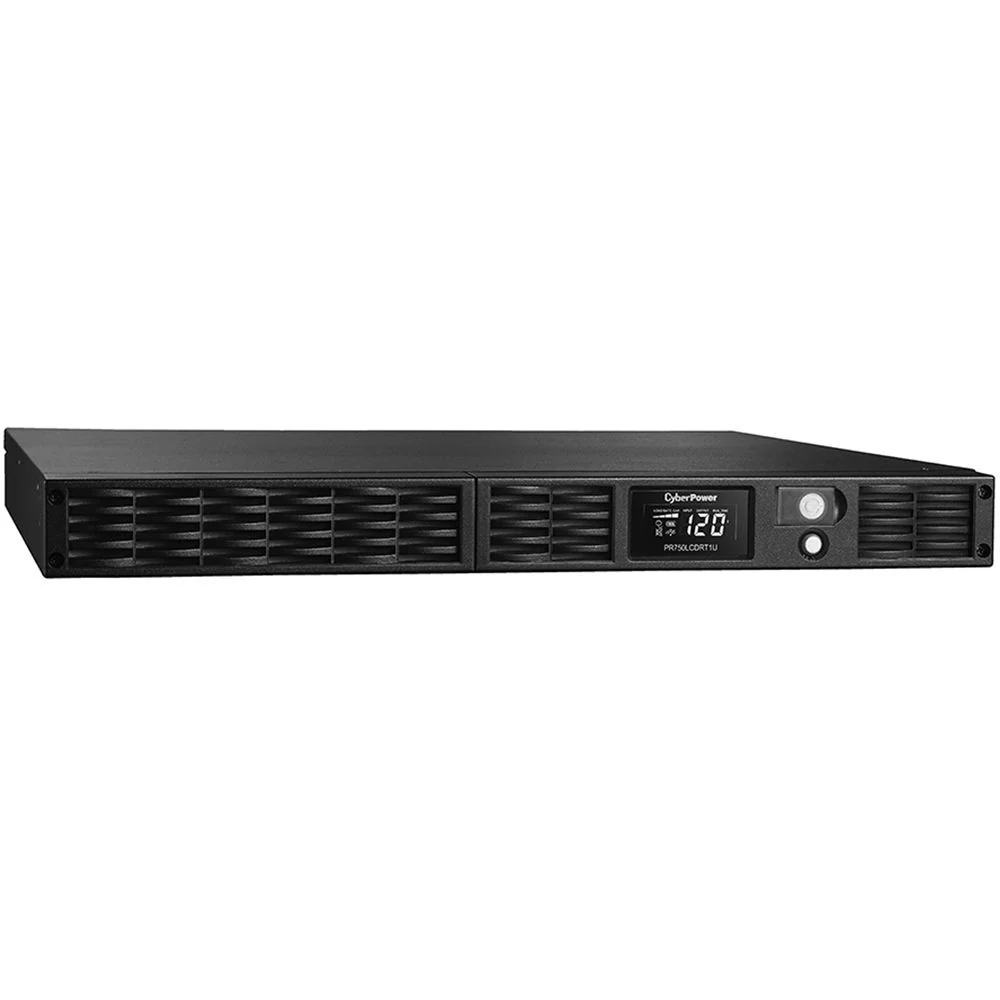

CyberPower PR750LCDRT1U Smart App Sinewave UPS (750VA/600W) - Image 2
