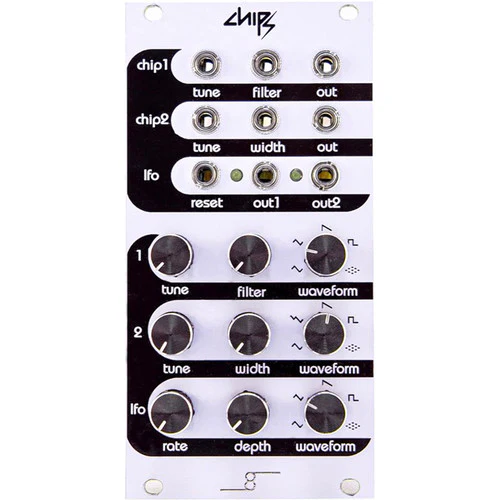

Cre8audio Chipz Dual VCO with LFO Eurorack Module (12 HP)
The Cre8audio Chipz is a 12 HP Eurorack synthesizer module designed to provide 8-bit chiptune-style voices and adds an LFO to your modular rig.
The module offers two voltage-controlled oscillators, Chip 1 and Chip 2, each with a choice of sine, triangle, saw, square, and noise waveforms; the variable-control knob allows you to morph between waveforms. Both oscillators feature tuning knobs and CV tuning inputs. Patching into the tuning inputs causes the tuning knobs to act as 2-octave-up or 2-octave-down transposers. Chip 1 has a filter with a CV input and depth knob, while Chip 2 offers pulse width modulation (PWM), also with a CV input and a depth-control knob.
The single LFO also offers a continually variable choice of sine, triangle, saw, square, and noise waveforms for your modulation pleasure. Rate and depth knobs control the modulation, which loops continuously unless you trigger the loop via CV by patching into the Reset input. The LFO has two outputs, Output 2 is four times the speed of Output 1.
UPC: 850009372031| Power Specifications | Power Draw when Running +12 V Rail: 35 mA Power Draw when Running +5 V Rail: 30 mA Power Draw when Running -12 V: 19 mA LFO Output 1 Voltage Range: 0 to 5 V LFO Output 2 Voltage Range: 0 to 5.8 V Minimum Voltage Required to Set LFO Trigger Input High: 0.7 ~ 5 V |
| Oscillators | Chip 1 Output Range: 91 to 1.47 kHz Chip 2 Output Range: 91 to 1.47 kHz Input Voltage Range of Oscillators: 0 to 10 V |
| Size | Horizontal Pitch (HP): 12 |
| Depth | 1.18" / 30 mm |
| Package Weight | 0.475 lb |
| Box Dimensions (LxWxH) | 7.6 x 4.5 x 2.5" |
In the Box
- Cre8audio Chipz Dual VCO with LFO Eurorack Module (12 HP)
- Limited 1-Year Warranty with Registration within 14 Days of Purchase
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
