Core SWX Battery Plate with Cheese Plate, 15mm LWS Rod Clamp & 4-Pin XLR (V-Mount)
Core SWX RMV Overview

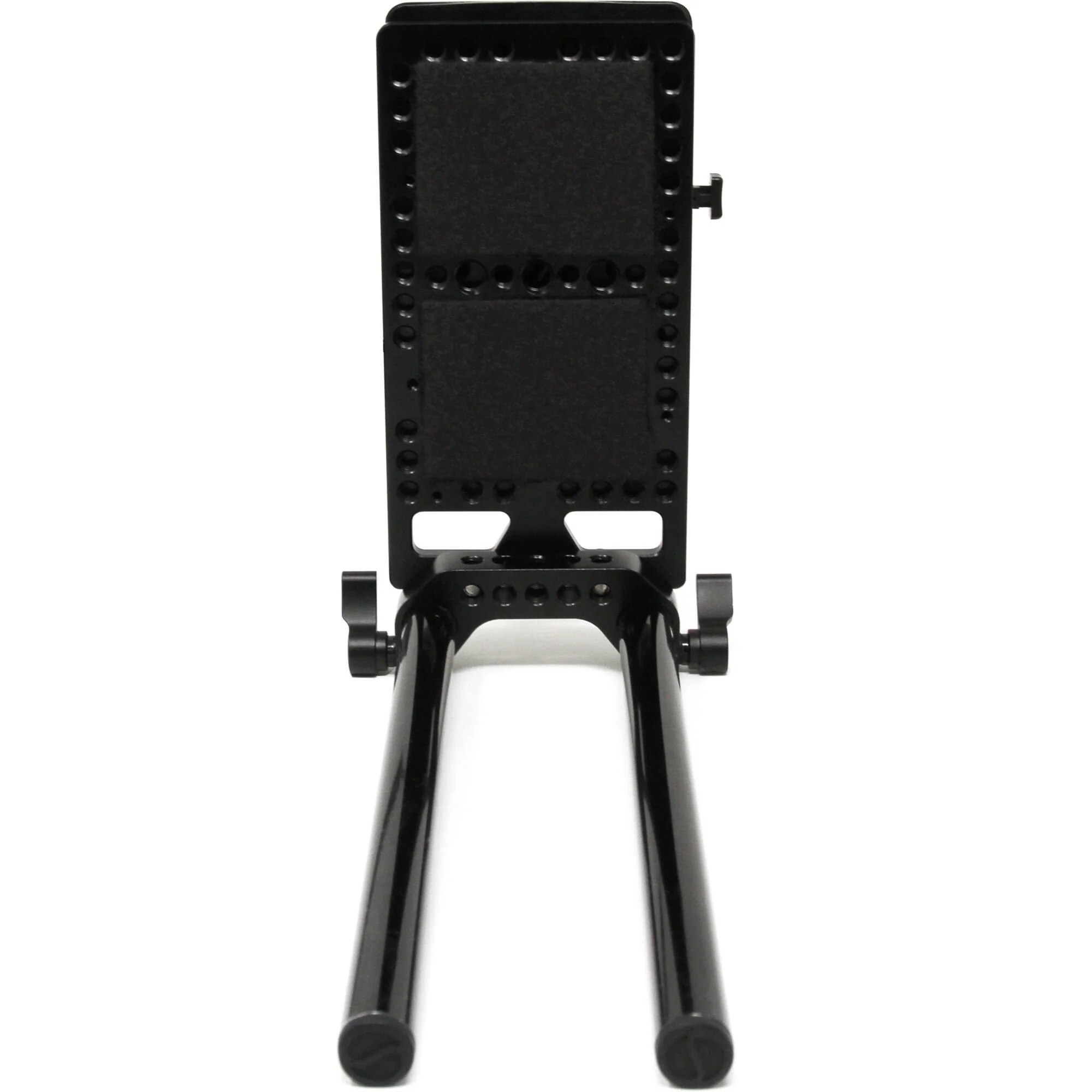

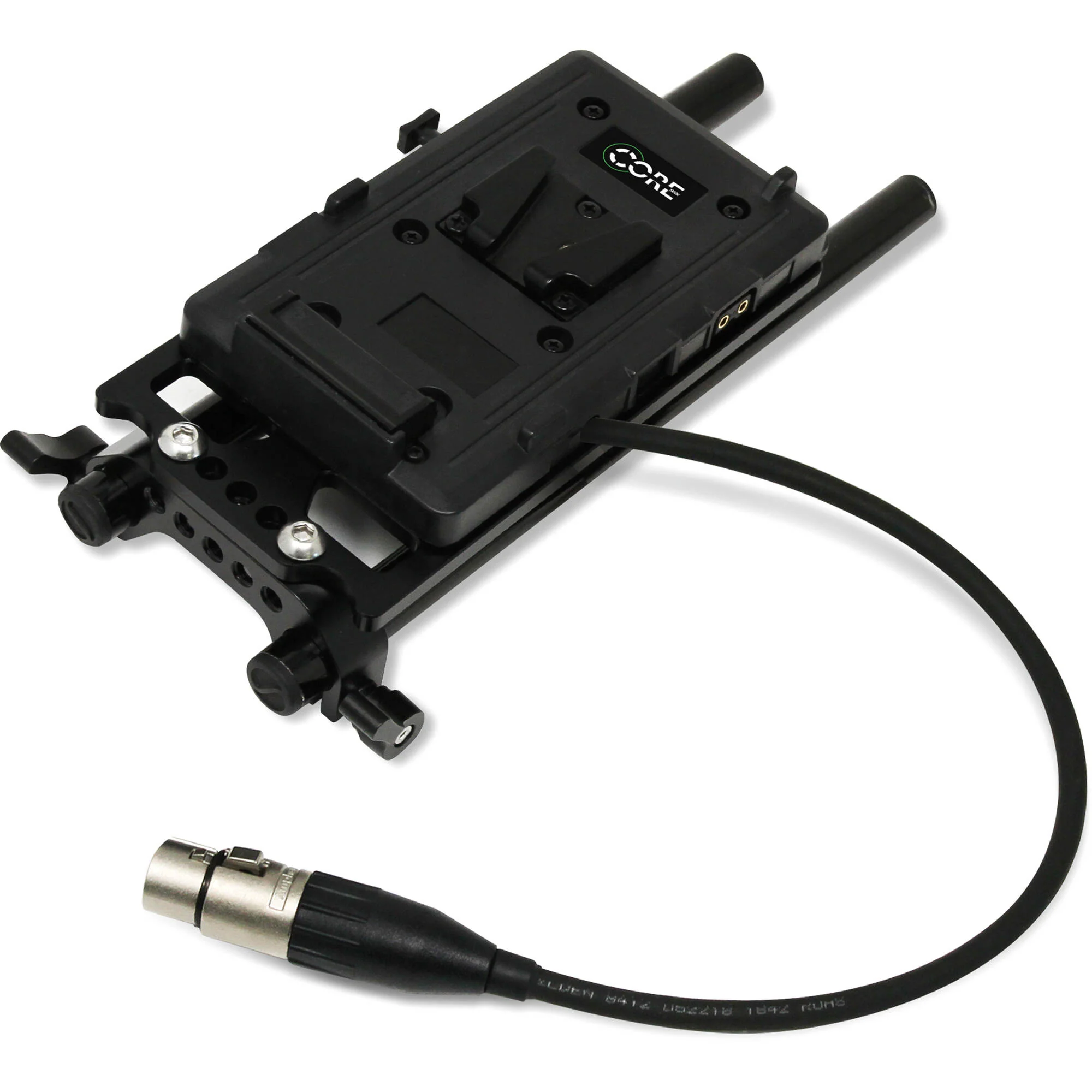

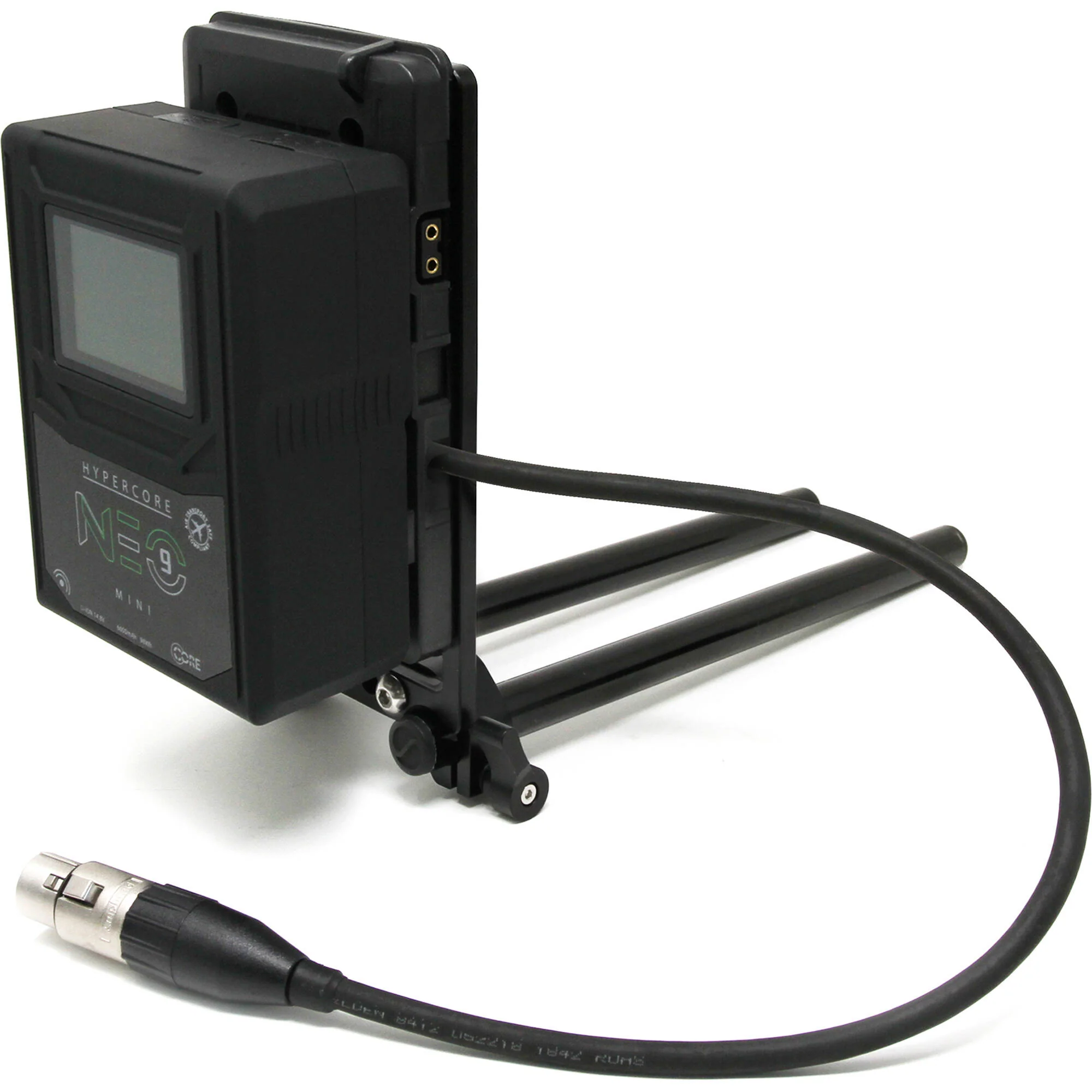

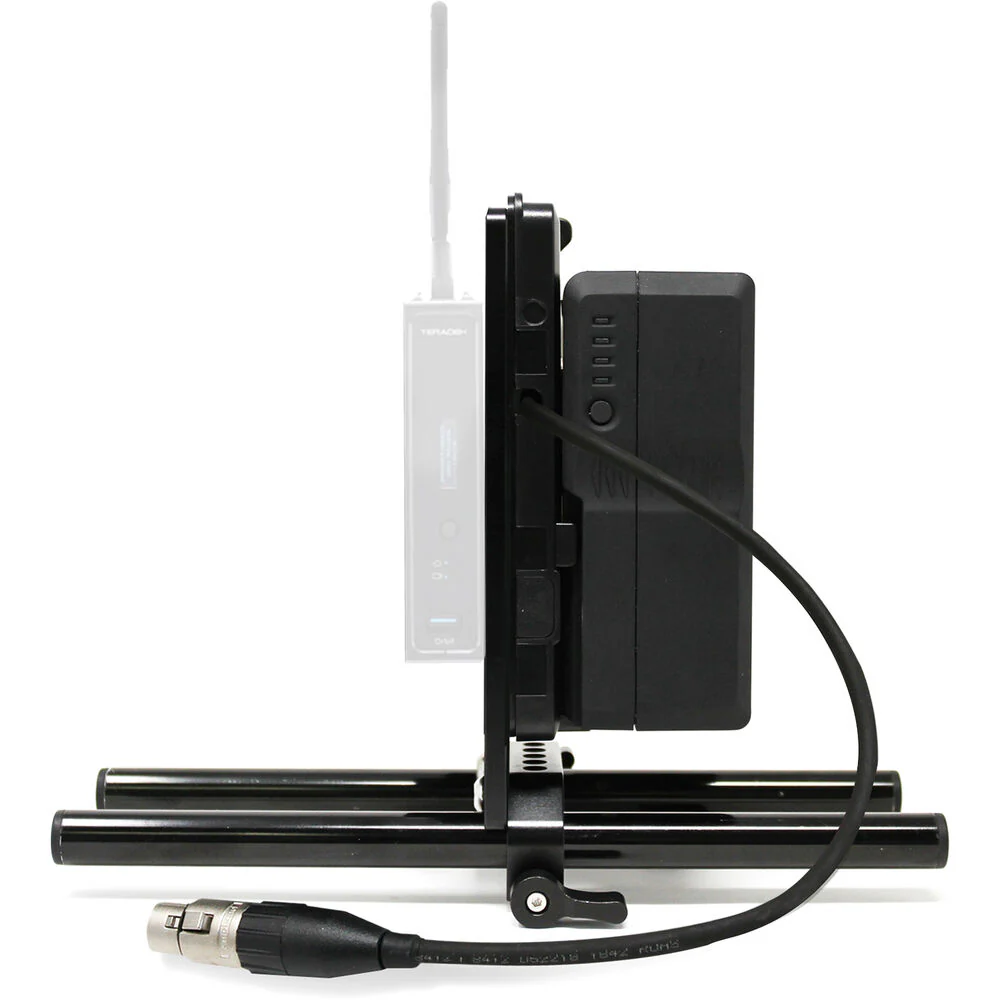

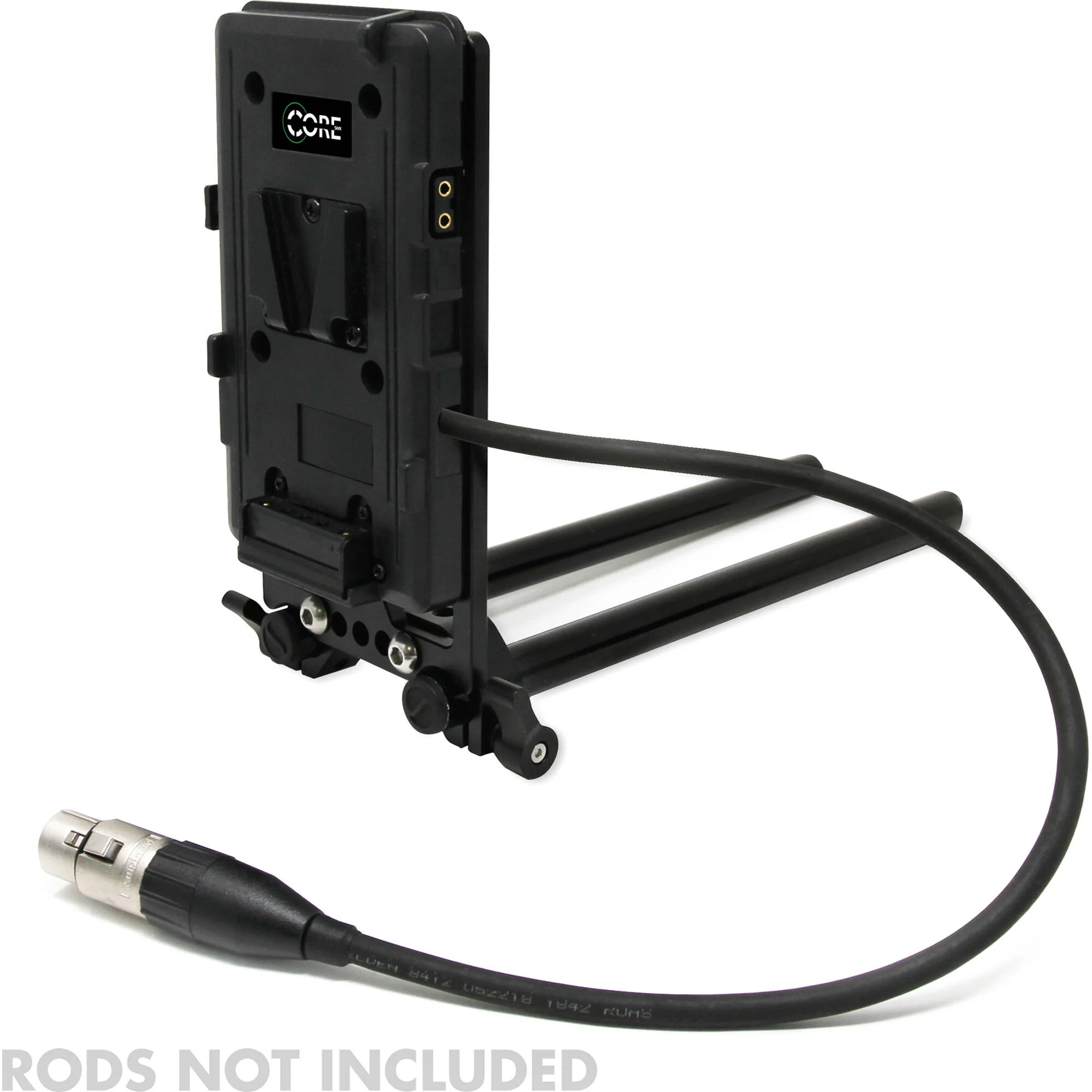

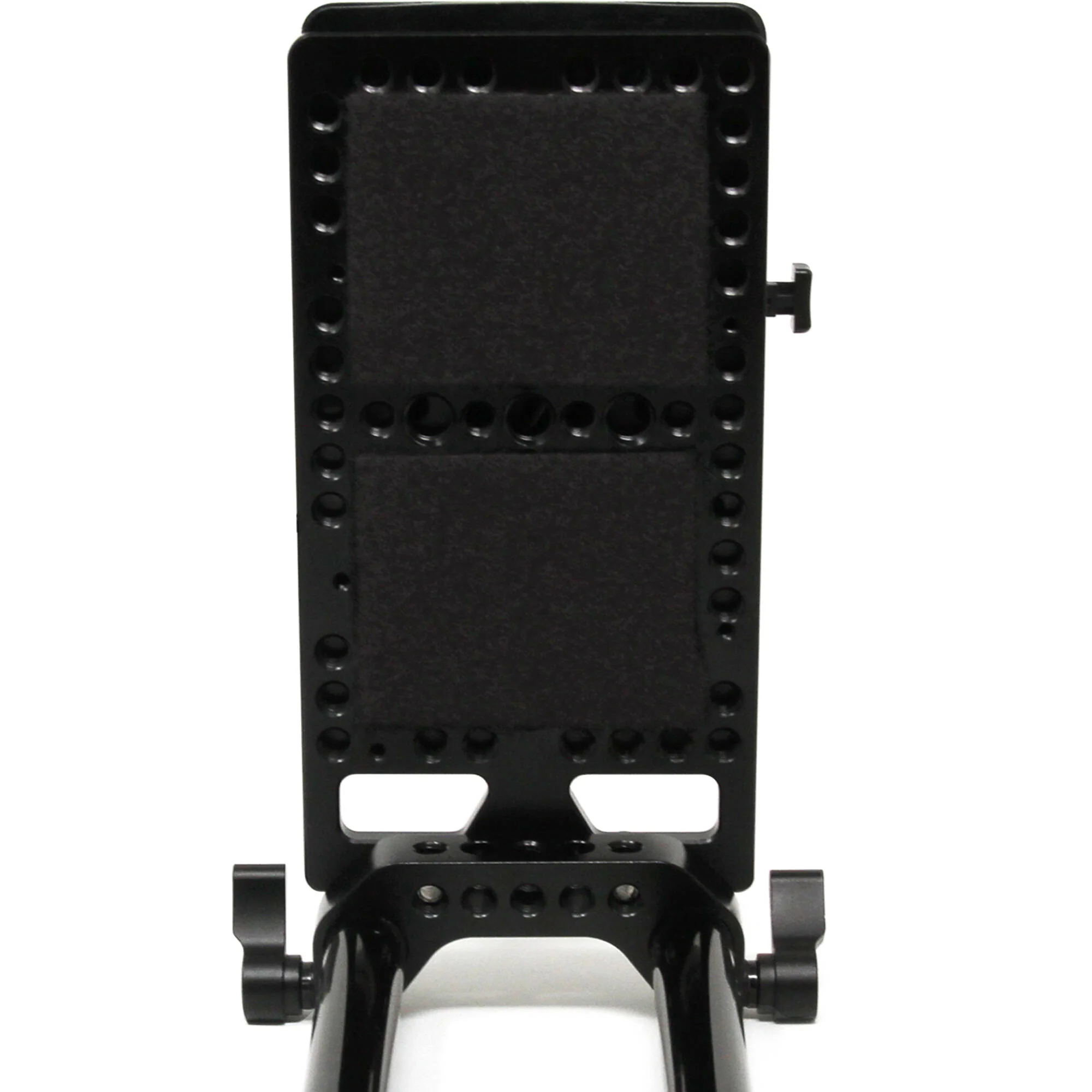

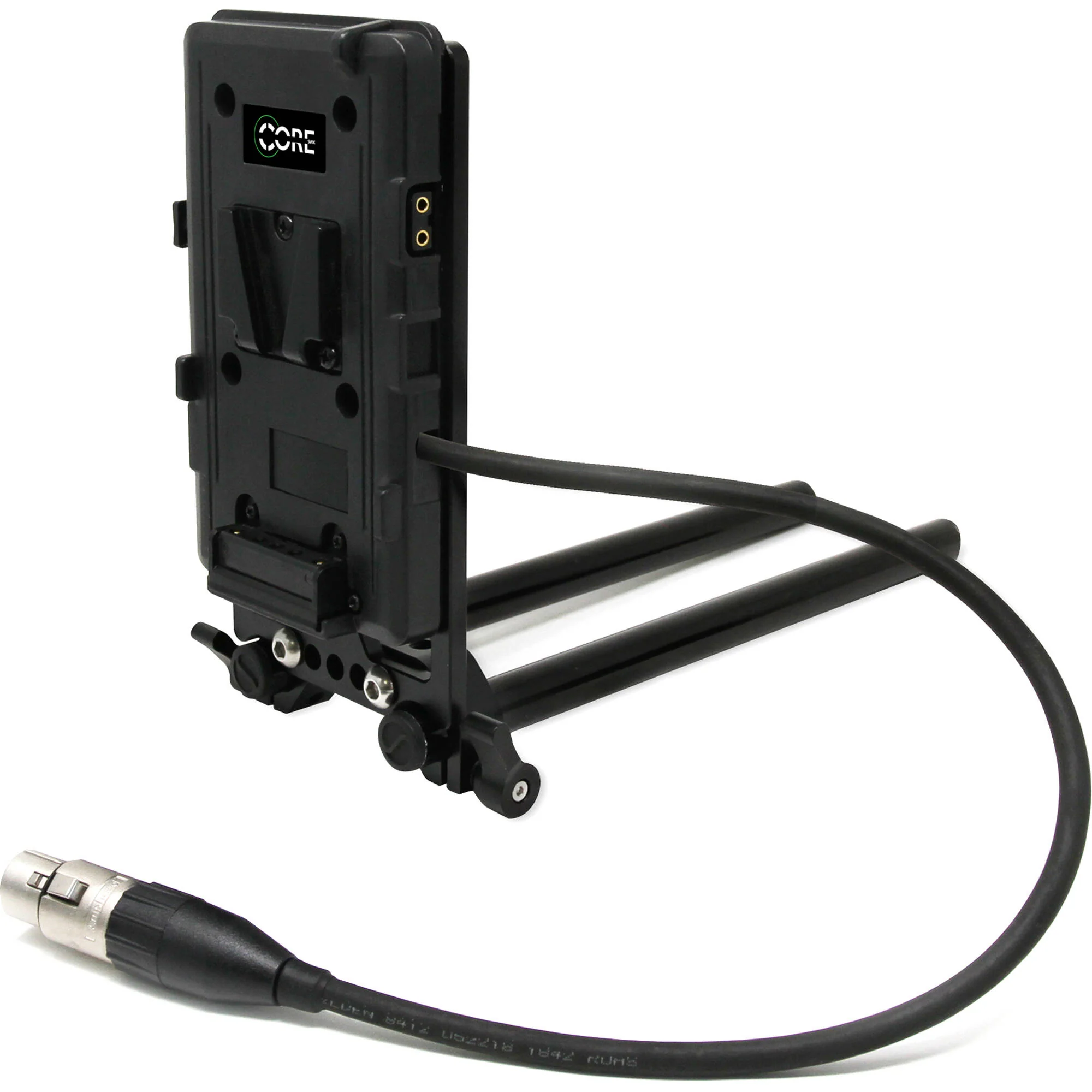

Add V-mount battery support to 4-pin XLR cameras, lights, accessories, and other devices with this V-mount Battery Plate with Cheese Plate, 15mm LWS Rod Clamp & 4-Pin XLR from Core SWX. The battery plate features a cheese-style plate on the back that provides numerous 1/4"-20 mounting threads to utilize a wide variety of mounting options. The plate also features a hook-and-loop backing to attach numerous accessories with a hook-and-loop strip.
The battery plate provides a 4-pin XLR output cable that measures 18" in length, and it also features a D-Tap output to power additional devices. Both outputs provide 11 to 17 VDC output power to your devices. In addition to the mounting threads, the plate can also mount onto your rig via an integrated 15mm LWS rod clamp on the bottom. Attached on the back of your rig, it can also be used as a counterweight.
- V-mount battery plate
- 4-pin XLR and D-tap outputs for compatible cameras and devices
- 15mm LWS rod mount bracket (15mm rods available separately)
- 1/4"-20 accessory threads on back cheese-style plate
- 18" cable
In the Box
- Core SWX Battery Plate with Cheese Plate, 15mm LWS Rod Clamp & 4-Pin XLR (V-Mount)
- Limited 1-Year Warranty
Core SWX RMV Specs
| Power Output | 11 to 17 VDC |
| Camera Power Method | Connector |
| Inputs/Outputs | 1 x D-Tap 1 x XLR 4-Pin Female |
| Plate Front / Battery Mount | V-Mount |
| Plate Rear Mount | 15 mm Rod Clamp |
| Number of Battery Bays | 1 |
| Accessory Mounting | 1/4"-20 Female, 15 mm Rod Mount |
| Cable Length | 18" / 45.7 cm |
| Dimensions | 7 x 4.25 x 1.25" / 17.8 x 10.79 x 3.17 cm |
| Weight | 14.4 oz / 408 g |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
