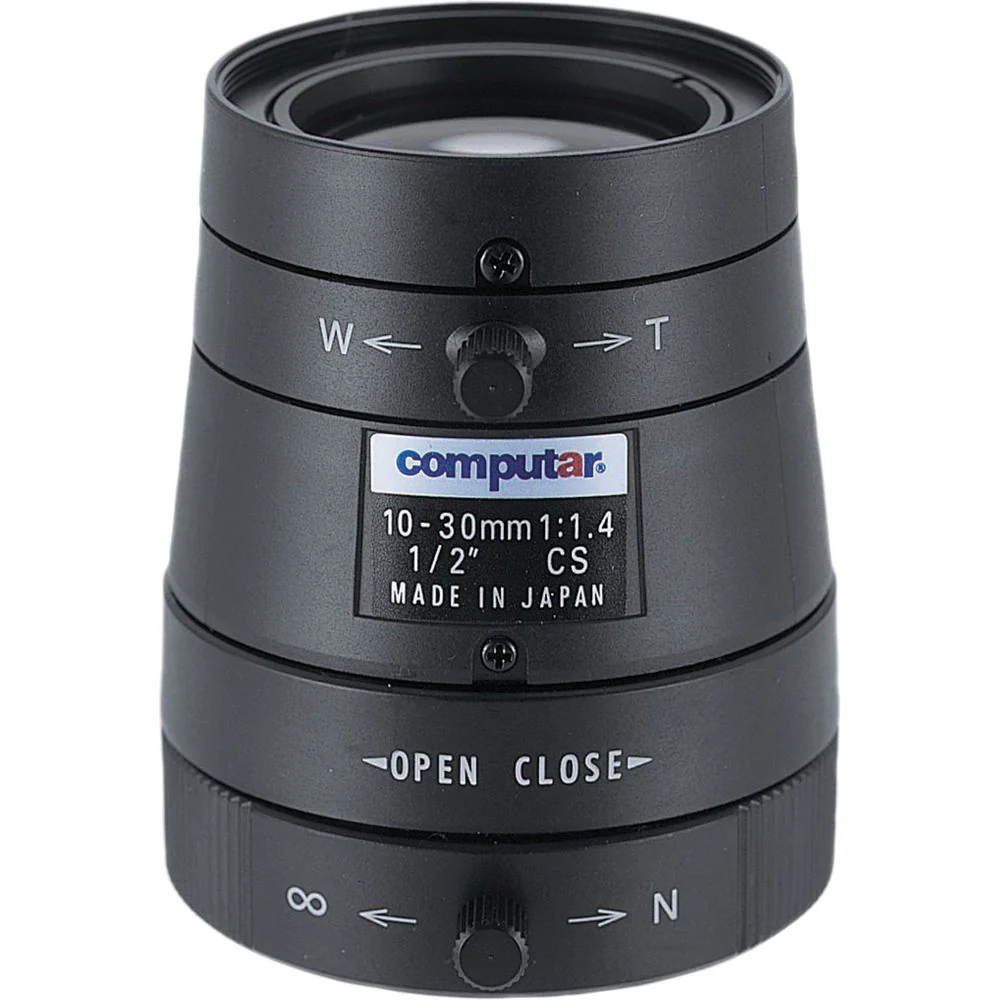

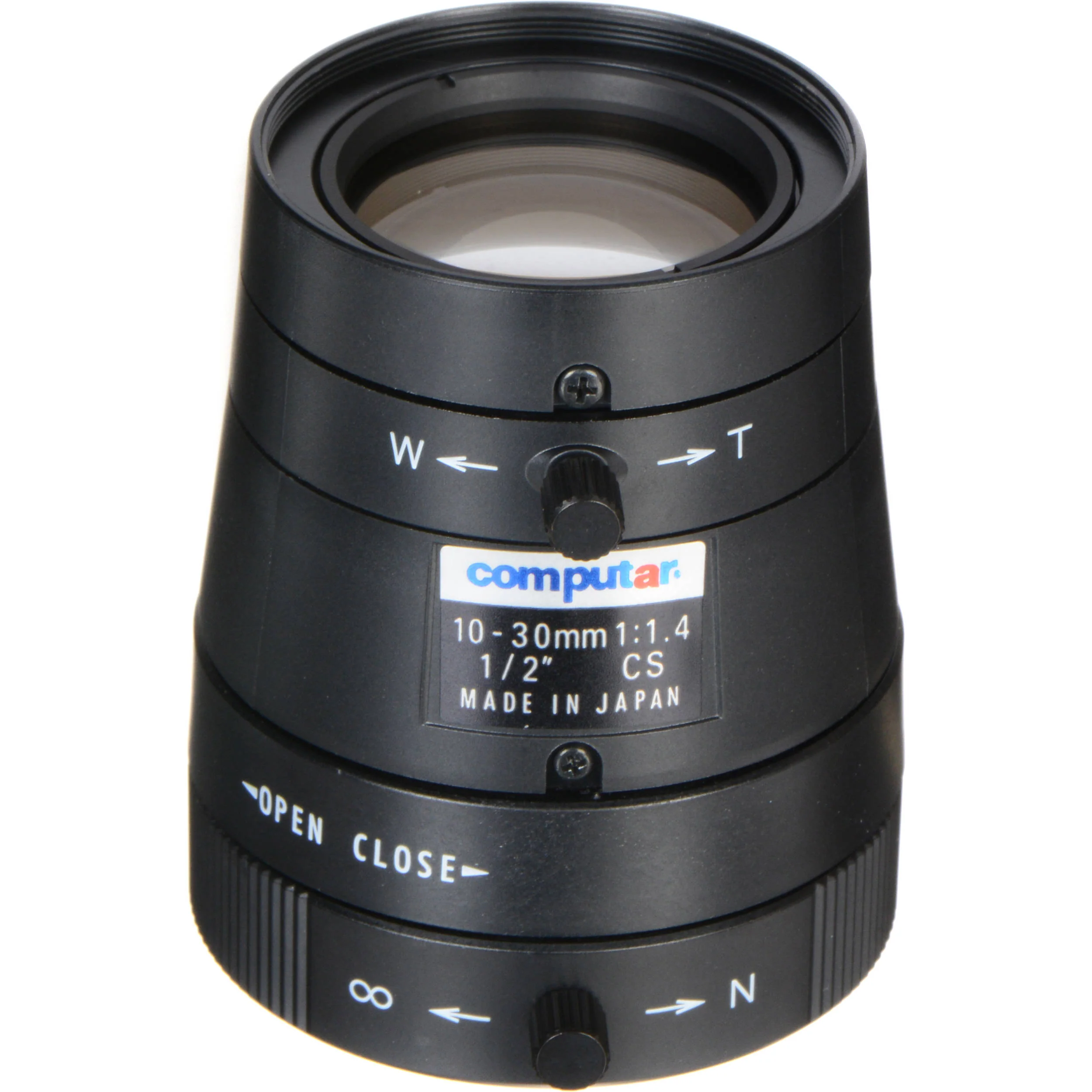

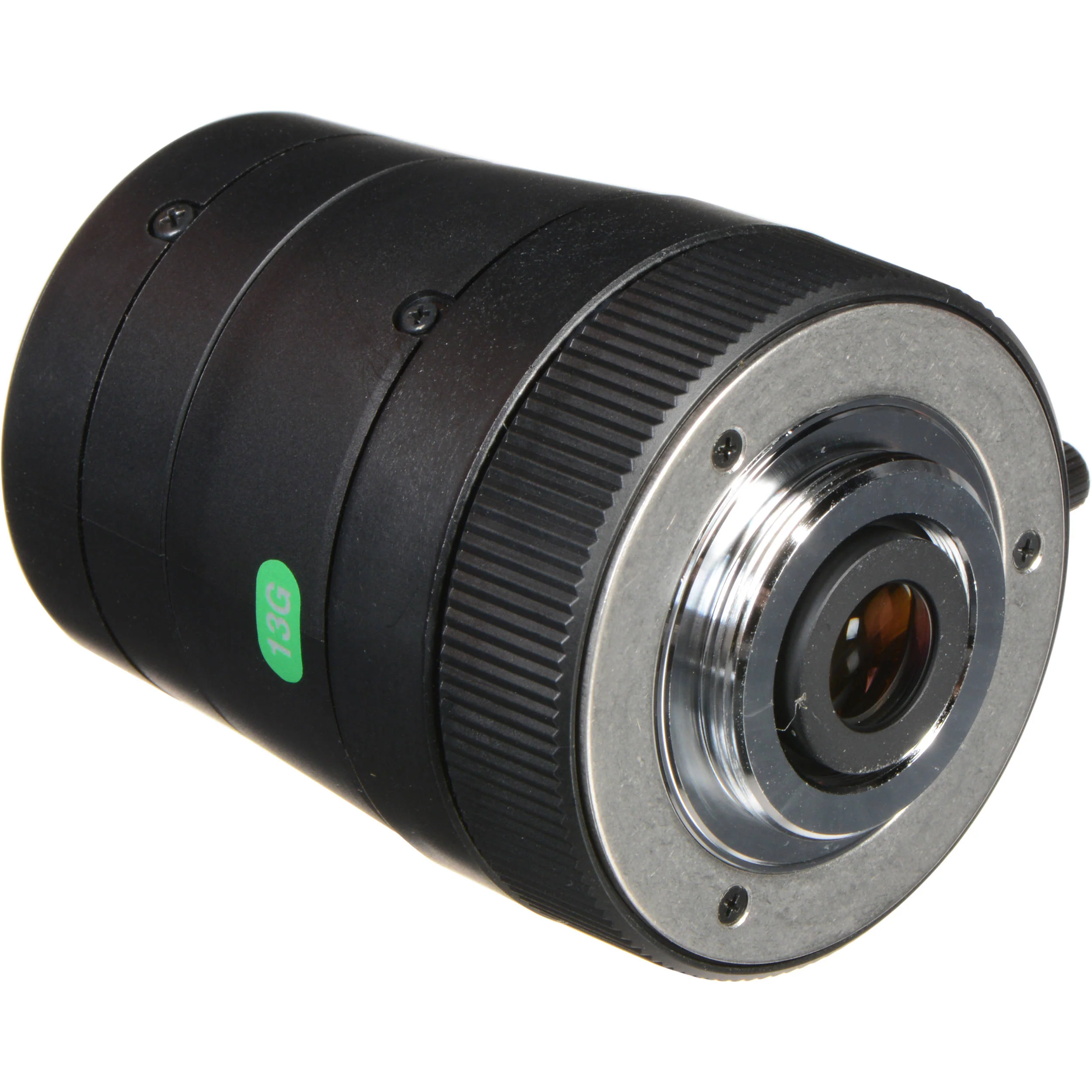

Computar CS-Mount 10-30mm Varifocal Lens
Computar H3Z1014CS Overview
The CS-Mount 10-30mm Varifocal Lens from Computar is designed for cameras with 1/2" format sensors. The lens facilitates easy focal length adjustments, enabling you to change the focal length without having to move your camera from its installation point. With an aperture of f/1.4 to 16C, the lens is suitable for surveillance in low light as well as brightly lit conditions.
Items Included
- Computar CS-Mount 10-30mm Varifocal Lens
- Limited 3-Year Manufacturer Warranty
Additional Resources
No additional resources available
Computar H3Z1014CS Specs
| Focal Length |
10-30mm
|
| Aperture Ratio |
1:1.4 (maximum)
|
| Image Format |
6.4 x 4.8 mm (ø8 mm)
|
| Operation Range |
Iris: f/1.4 to f/16C
Focus: 2' to infinity (0.6 m to infinity) Zoom: 0.4 to 1.2" (10 to 30 mm) |
| Control |
Iris / Focus / Zoom: Manual
|
| Angle of View |
1/2-type: 44.8 to 15.6° (D), 35.8 to 12.5° (H), 26.8 to 9.4° (V)
|
| Operating Temperature |
-4 to 122°F (-20 to 50°C)
|
| Effective Lens Aperture |
Front: ø26.6mm
Rear: ø9.0mm |
| Back Focal Length |
Tele: 0.39" (9.8mm)
Wide: 0.43" (11mm) |
| Flange Back Length |
0.49" (12.5 mm)
|
| Mount |
CS-mount
|
| Filter Size |
M37.5 P= 0.01" (0.5 mm)
|
| Object Dimensions at M.O.D. |
At .4" (10 mm): 15.28 x 11.26" (388 x 286 mm)
At 1.19" (30 mm): 51.61 x 3.90" (1311 x 99 mm) |
| Dimensions |
ø1.85 x 2.27" (ø47 x 57.7 mm)
|
| Weight |
4.4 oz (125 g)
|
| Package Weight |
0.345 lb
|
| Box Dimensions (LxWxH) |
3.4 x 3 x 2.5"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
