Comprehensive Pro AV/IT HDBaseT 4K60 HDMI Extender Kit
Comprehensive USB3402S Overview

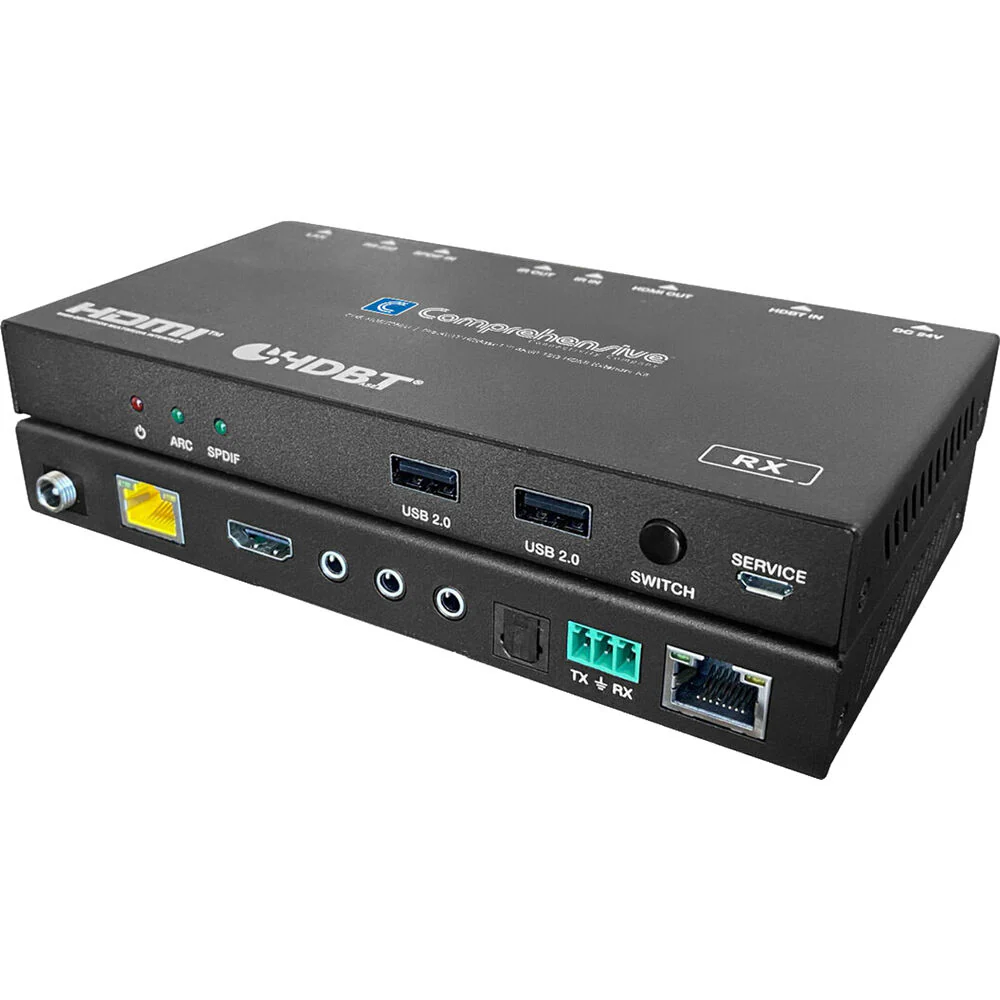

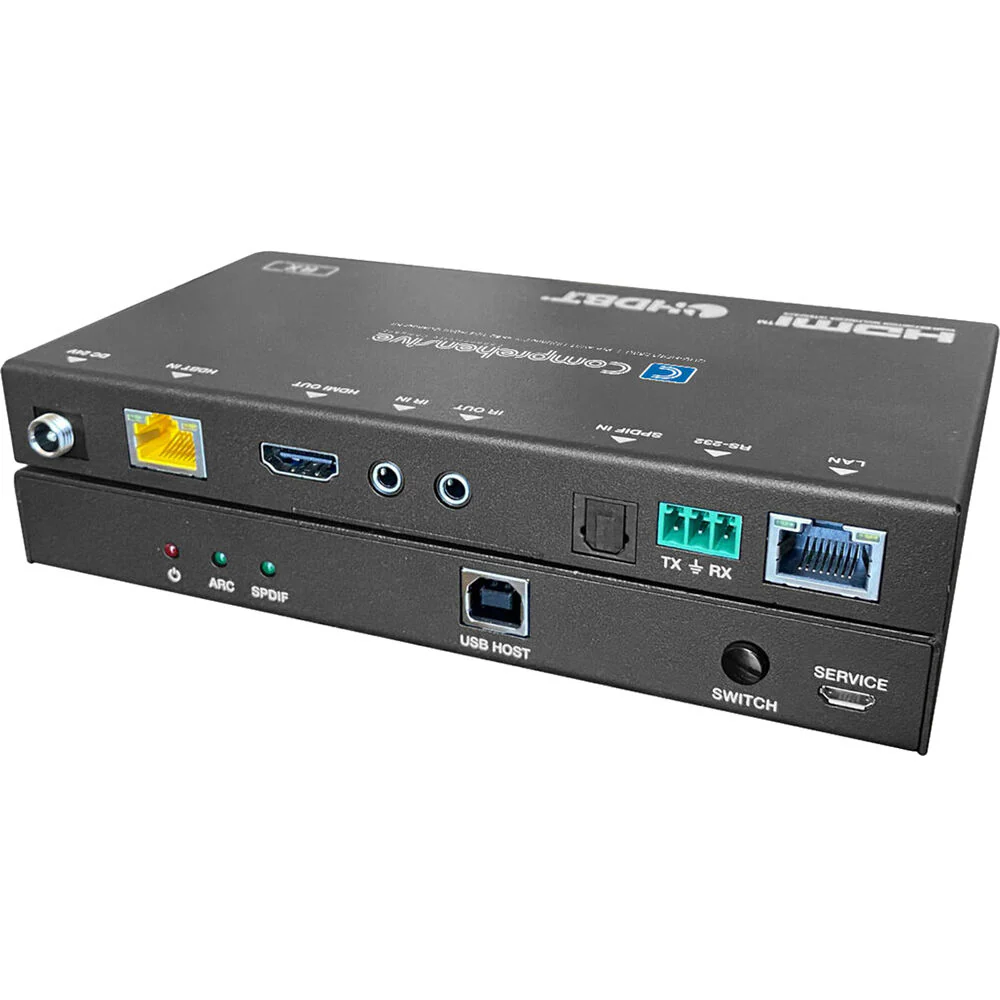

This Pro AV/IT HDBaseT 4K60 HDMI Extender Kit from Comprehensive can extend HDMI video and audio signals, RS-232, bidirectional IR, and HDBaseT at the distance of up to 328' between transmitter and receiver via a single Cat 6a/7 cable. The system supports resolutions up to 4K video at 60 Hz. The transmitter supports ARC function and local audio extract. In addition, the kit is equipped with bidirectional IR pass-through, which allows for source and display control. It also supports USB KVM and PoC function. The kit offers the most convenient solution for HDMI extension via a single CAT cable with long-distance capability.
Features at a Glance
- HDCP 2.2/1.4 and DVI 1.0 compliant
- Supports 18 Gb/s video bandwidth
- The maximum extended transmission distance via a single Cat 5e/6 cable 296' for 4K2K signal or 330' for 1080p signal
- De-embedded audio to analog stereo output on receiver
- Supports bidirectional IR, RS-232, and CEC pass through
- HDR, HDR10+, Dolby Vision, and HLG function supported
- Supports PoC (Power over Cable) function
- Compact design for easy and flexible installation
- Supports ARC (Audio Return Channel) function
- Supports USB KVM function
UPC: 808447084504
In the Box
- Comprehensive Pro AV/IT HDBaseT 4K60 HDMI Extender Kit
- Transmitter
- Receiver
- IR Blaster Cable (4.9')
- IR Receiver Cable (4.9')
- 4 x Mounting Ear
- 2 x 3-Pin Phoenix Connector
- Locking Power Adapter (24V, 1A)
Comprehensive USB3402S Specs
Transmitter Interfaces
| Inputs | 1 x HDMI Female |
| Embedded Audio Input | HDMI |
| Outputs | 1 x RJ45 (HDBaseT) Female 1 x TOSLINK (S/PDIF) Female 1 x 1/8" / 3.5 mm TS Female 1 x RJ45 (LAN) Female |
| Transmitter Other I/O | 1 x 1/8" / 3.5 mm IR Input 1 x 1/8" / 3.5 mm IR Output 1 x Block 3-Pin RS-232 Input 1 x USB Mini-B Input 1 x USB Type-B Input |
Receiver Interfaces
| Inputs | 1 x RJ45 (HDBaseT) Female 1 x TOSLINK (S/PDIF) Female |
| Outputs | 1 x HDMI Female 1 x RJ45 Female |
| Embedded Audio Output | HDMI |
| Receiver Other I/O | 1 x 1/8" / 3.5 mm IR Input 1 x 1/8" / 3.5 mm IR Output 1 x Block 3-Pin RS-232 Input 1 x USB Mini-B Input 2 x USB Type-A USB 2.0 Input |
Standards
| HDCP Support | Version 2.2 Version 1.4 |
| EDID Support | None |
Transmission
| Max Transmission Distance | DCI 4K: 296' / 90.2 m 1080p: 328' / 100 m |
| Video Format | HDMI DCI 4K: 30/50/60 fps DCI 2K: 30/50/60 fps 1080p 1080i 720p 480p |
| PC Resolutions | 1920 x 1080 |
| Audio Format | S/PDIF: |
| DTS Compatibility | DTS-ES, DTS-HD Express, DTS-HD High Resolution, DTS:X |
| Dolby Compatibility | Dolby Digital, Dolby Digital Plus, Dolby TrueHD |
| Supported Cable Types | Cat 6a/7 |
Power
| Transmitter Power Connector | 1 x Barrel (24 VDC) Input |
| Receiver Power Connector | 1 x Barrel (24 VDC) Input |
| PoE Support | Yes |
| Transmitter Power Consumption | (13 W) |
| Receiver Power Consumption | (13 W) |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 20 to 90% (Non-Condensing) |
General
| Transmitter Dimensions | 6.5 x 3.5 x 0.7" / 165 x 88 x 18 mm |
| Receiver Dimensions | 0.5 x 0.3 x 0.1' / 165 x 88 x 18 mm |
| Transmitter Weight | 6 oz / 170 g |
| Receiver Weight | 5.8 oz / 165 g |
Packaging Info
| Package Weight | 2.52 lb |
| Box Dimensions (LxWxH) | 10.5 x 8.3 x 2.8" |
Comprehensive USB3402S Reviews
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
