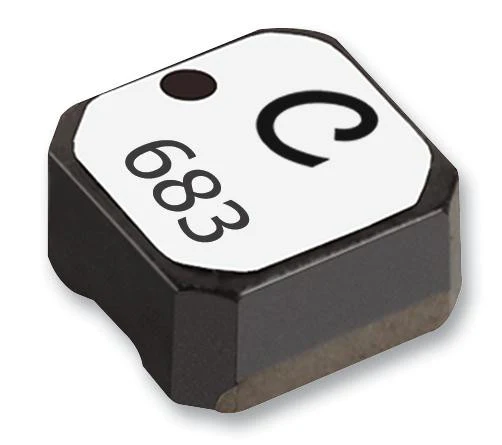

COILCRAFT LPS6235-104MRB Surface Mount Power Inductor, LPS6235 Series, 100 µH, 700 mA, 520 mA, Shielded, 0.375 ohm
COILCRAFT LPS6235-104MRB Surface Mount Power Inductor, LPS6235 Series, 100 µH, 700 mA, 520 mA, Shielded, 0.375 ohm
Applications
Automotive
Product details
| Power Inductor Case | 6mm x 6mm x 3.5mm |
| DC Resistance Max | 0.375ohm |
| Saturation Current (Isat) | 520mA |
| Packaging | Cut Tape |
| Inductance Tolerance | ± 20% |
| Product Range | LPS6235 Series |
| RMS Current (Irms) | 700mA |
| Inductance | 100µH |
| Inductor Construction | Shielded |
Other details
| Brand | COILCRAFT |
| Part Number | LPS6235-104MRB |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
