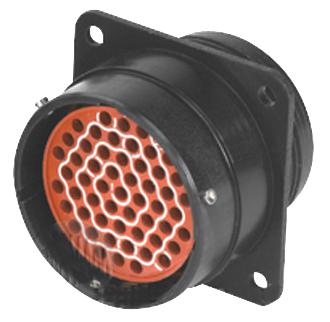

CINCH CONNECTIVITY SOLUTIONS MS24264R24B61P6 Circular Connector, MIL-DTL-26500 Series, MS24264 Series, Wall Mount Receptacle, 61 Contacts
CINCH CONNECTIVITY SOLUTIONS MS24264R24B61P6 Circular Connector, MIL-DTL-26500 Series, MS24264 Series, Wall Mount Receptacle, 61 Contacts
Product Overview
The MS24264R24B61P6 from Cinch is MIL-DTL-26500 series wall mount receptacle with 61 contacts. These connectors are available with variety of shell and finishes which are used in some of the most rugged environments and must perform flawlessly under wide temperature ranges, high vibrations and resistant to contaminants. It withstands high vibration and suitable for quick disconnect applications.
- 500 mating cycles
- Styles qualified to Boeing BACC45 series
- Crimp front release contacts
- Optional fixed contacts, PC termination
- High reliability, minimum insulation resistance of 5000Mohm
- Environmentally sealed, ozone resistance of 0.015% by volume
- Operates at extreme temperature range from -55°C to +200°C
- Aluminium alloy body material with non-conductive black anodized finish
- Copper alloy crimp pin contacts with gold plating
Applications
Aerospace, Defence, Military, Industrial
Product details
Other details
| Brand | CINCH CONNECTIVITY SOLUTIONS |
| Part Number | MS24264R24B61P6 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
