Cinch Connectivity Solutions CN0966B24G30P6-000 CN0966B24G30P6-000 Circular Connector CN0966 Straight Plug 30 Contacts Crimp Pin - Not Supplied
Cinch Connectivity Solutions CN0966B24G30P6-000 CN0966B24G30P6-000 Circular Connector CN0966 Straight Plug 30 Contacts Crimp Pin - Not Supplied

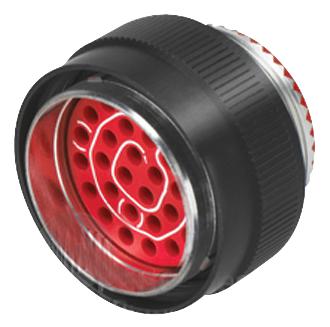

The CN0966B24G30P6-000 from Cinch is CN0966 series, MIL-DTL-26500 series equivalent straight plug with 30 contacts. The CN0966 series self locking plug connectors are qualified to Boeing specifications to satisfy general purpose requirements and unique product challenges for shielding, environmental sealing, fluid resistance and vibration. These high reliability connectors have composite shells which are best for weight sensitive applications. The CN0966 series connectors have well proven electrical capability to withstand extreme shock, exposure and vibration.
- Threaded coupling design
- Optional ground spring, non rotating accessory teeth & advanced fluid resistance elastometers
- Firewall conformance and styles qualified to Boeing BACC63BP series
- Front release crimp contacts
- Operating temperature range from -55°C to +200°C
- Glass filled epoxy insulator, silicone based elastomer grommet & seals
- Insulation resistance is 5000Mohm
- 200 mating cycles and salt spray of 96hour
- Aluminium alloy body material with olive drab chromate over cadmium plating
- Copper alloy crimp pin contacts with gold plating
Industrial, Commercial
Other details
| Brand | CINCH CONNECTIVITY SOLUTIONS |
| Part Number | CN0966B24G30P6-000 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
$145.33
Original: $484.44
-70%Cinch Connectivity Solutions CN0966B24G30P6-000 CN0966B24G30P6-000 Circular Connector CN0966 Straight Plug 30 Contacts Crimp Pin - Not Supplied—
$484.44
$145.33Cinch Connectivity Solutions CN0966B24G30P6-000 CN0966B24G30P6-000 Circular Connector CN0966 Straight Plug 30 Contacts Crimp Pin - Not Supplied
