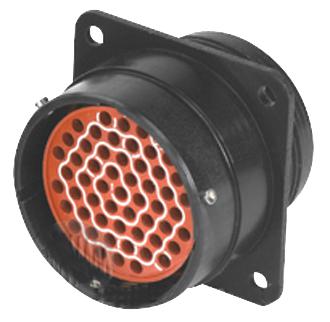

Cinch Connectivity Solutions BACC45FN24-43S6H BACC45FN24-43S6H Circular Connector BACC45 Wall Mount Receptacle 43 Contacts

The BACC45FN24-43S6H from Cinch is BACC45 series, MIL-DTL-26500 series equivalent wall mount receptacle with 43 contacts. These BACC45 series cylindrical connectors are qualified to Boeing specifications to satisfy general purpose requirements and unique product challenges for shielding, environmental sealing, fluid resistance and vibration. These connectors have composite shells which are best for weight sensitive applications. These BACC45 series connectors have well-proven electrical capability to withstand extreme shock, exposure and vibration.

• High reliability connectors
• Operating temperature range from -55°C to +200°C
• Glass filled epoxy insulator, silicone based elastomer grommet & seals
• Insulation resistance is 5000Mohm
• Salt spray exposure of 96hour
• Bayonet coupling with 500 mating cycles
• Aluminium alloy body material with non-conductive black anodized finish
• Copper alloy crimp socket contacts with gold plating

Applications

Industrial, Commercial

Other details

Brand	CINCH CONNECTIVITY SOLUTIONS
Part Number	BACC45FN24-43S6H
Quantity	Each
Technical Data Sheet EN
