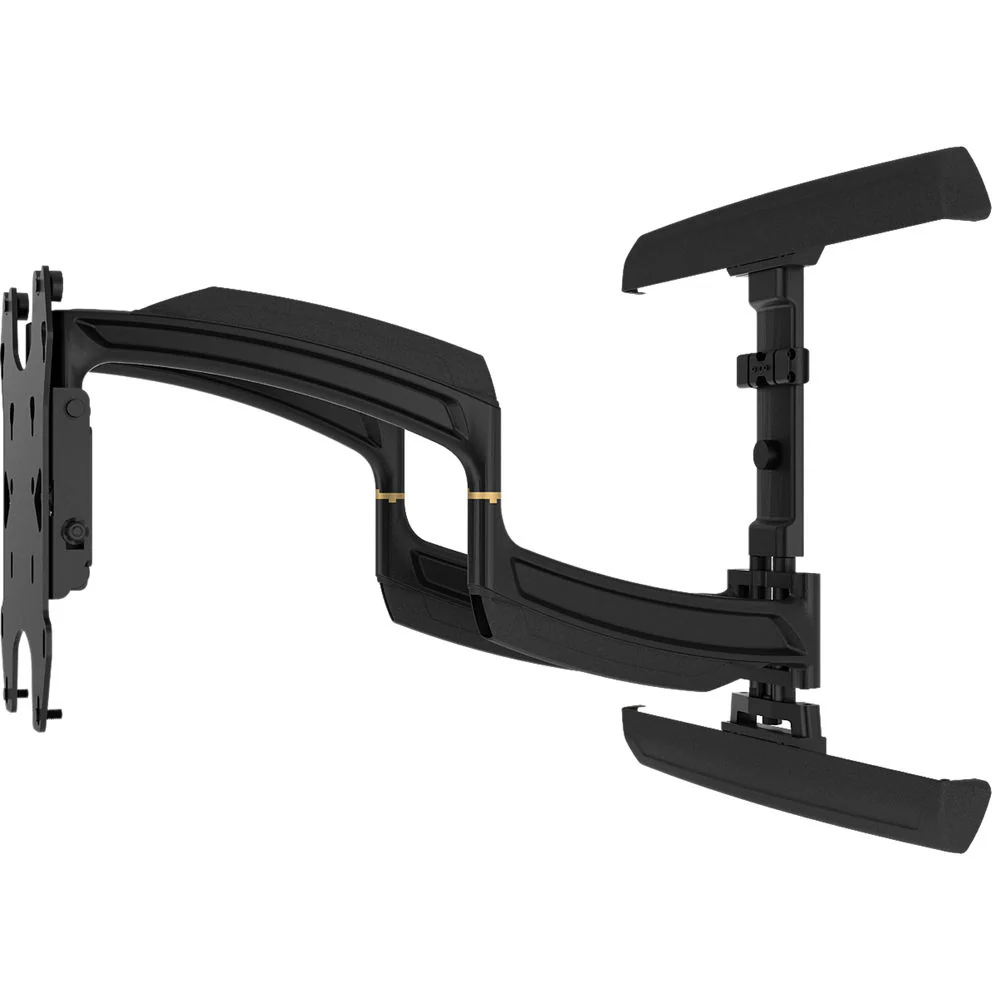

Chief TS325TU THINSTALL Dual Swing-Arm Wall Mount
- Supports 26 to 52" Displays up to 75 lb
- 100 x 100 to 600 x 400mm Mount Pattern
- Arm Extension up to 25"
- Provides -15° of Tilt Adjustment
- Provides up to ±90° of Pivot
- Post-Installation Levling
- Integrated Cable Management
- UL Listed
The Chief TS325TU THINSTALL Dual Swing-Arm Wall Mount is a suitable way to achieve flexible viewing options for displays measuring from 26 to 52" and weighing up to 75 lb. This mount extends from 1.3" to 25" from the wall and offers a downward tilt up to 15° and a pivot adjustment up to ±90°, depending on the display's width. Post-installation, you can further adjust the display's lateral position up to 16" and height up to 1" for your preferred screen placement. The mount maintains a clutter-free look via tool-free cable covers and an open wall plate design, which tucks in loose wires for a seamless installation.
- Designed for all types of displays from 26 to 52"
- Supports displays weighing up to 75 lb
- Mount's arm extends up to 25" from the wall
- Downward tilt up to 15° using your fingertips via Centris low-profile tilt
- Post-installation centerless lateral shift up to 16" for centering capability and height adjustments up to 1" for better positioning
- Low-profile design collapses to 1.8" to create an unobtrusive mounting option for your display
- Cable management imparts a professional look and allows routing of power and signal cables
Chief TS325TU specs
| Compatibility | |
|---|---|
| Supported Screen Sizes | 26 to 52" / 66.0 to 132.1 cm |
| Supported Weight Capacity | 75 lb / 34 kg |
| Mounting-Hole Pattern | 100 x 100 to 600 x 400 mm |
| Number of Displays Supported | 1 |
| Adjustments | |
|---|---|
| Tilt Adjustment | -15 to +0° |
| Lateral Shift | 16.0" / 40.6 cm |
| Vertical Adjustment | 1.0" / 2.5 cm |
| Screen Pivot (Arm) | -90 to +90° |
| Orientation | Landscape |
| General | |
|---|---|
| Stud Distance | 16.0" / 40.6 cm |
| Distance from Mounting Surface | 1.3 to 25.7" / 3.3 to 65.28 cm |
| Dimensions | 29.5 x 17.2 x 1.8" / 74.9 x 43.7 x 4.6 cm |
| Packaging Info | |
|---|---|
| Package Weight | 32.05 lb |
| Box Dimensions (LxWxH) | 33.0 x 24.3 x 3.15" |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
