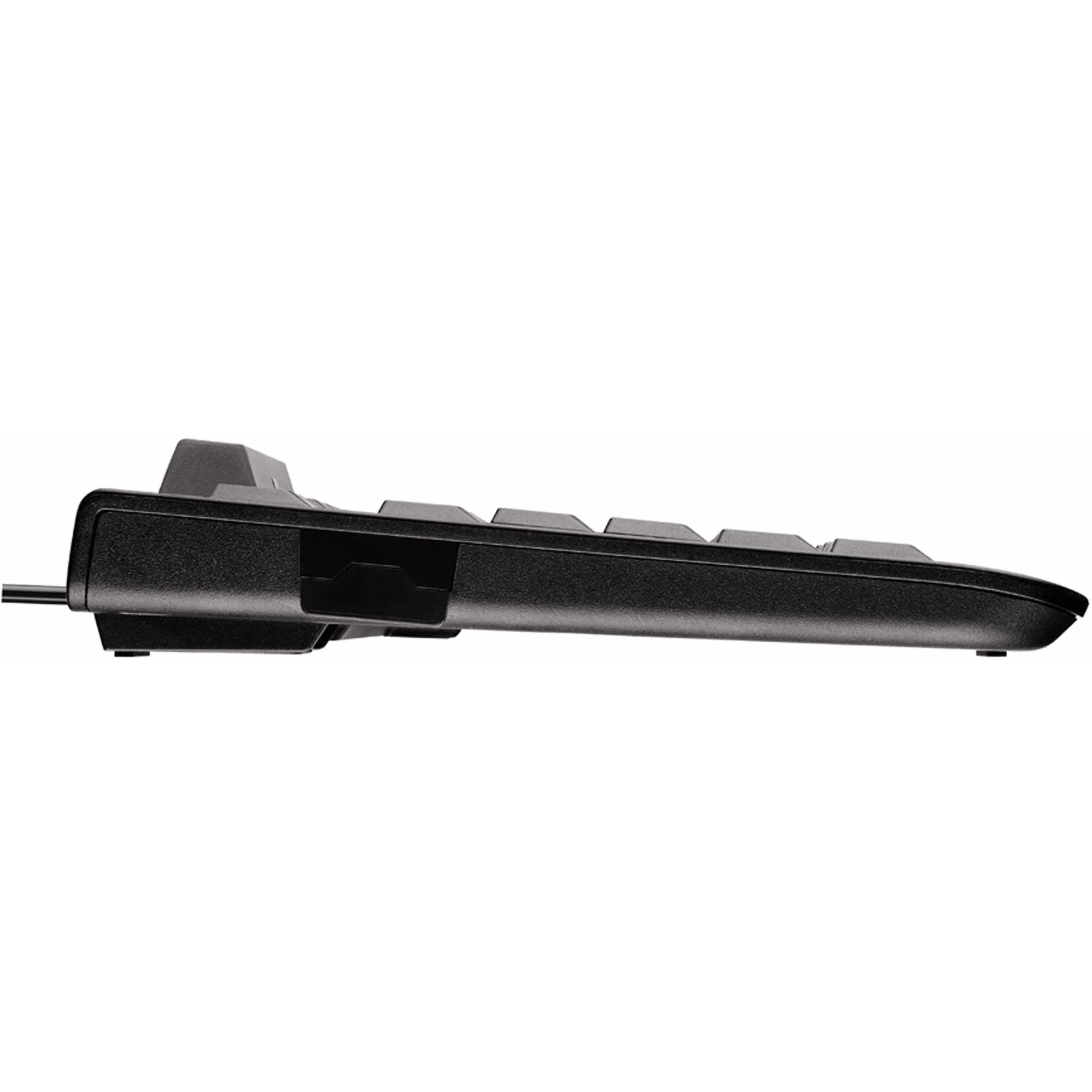

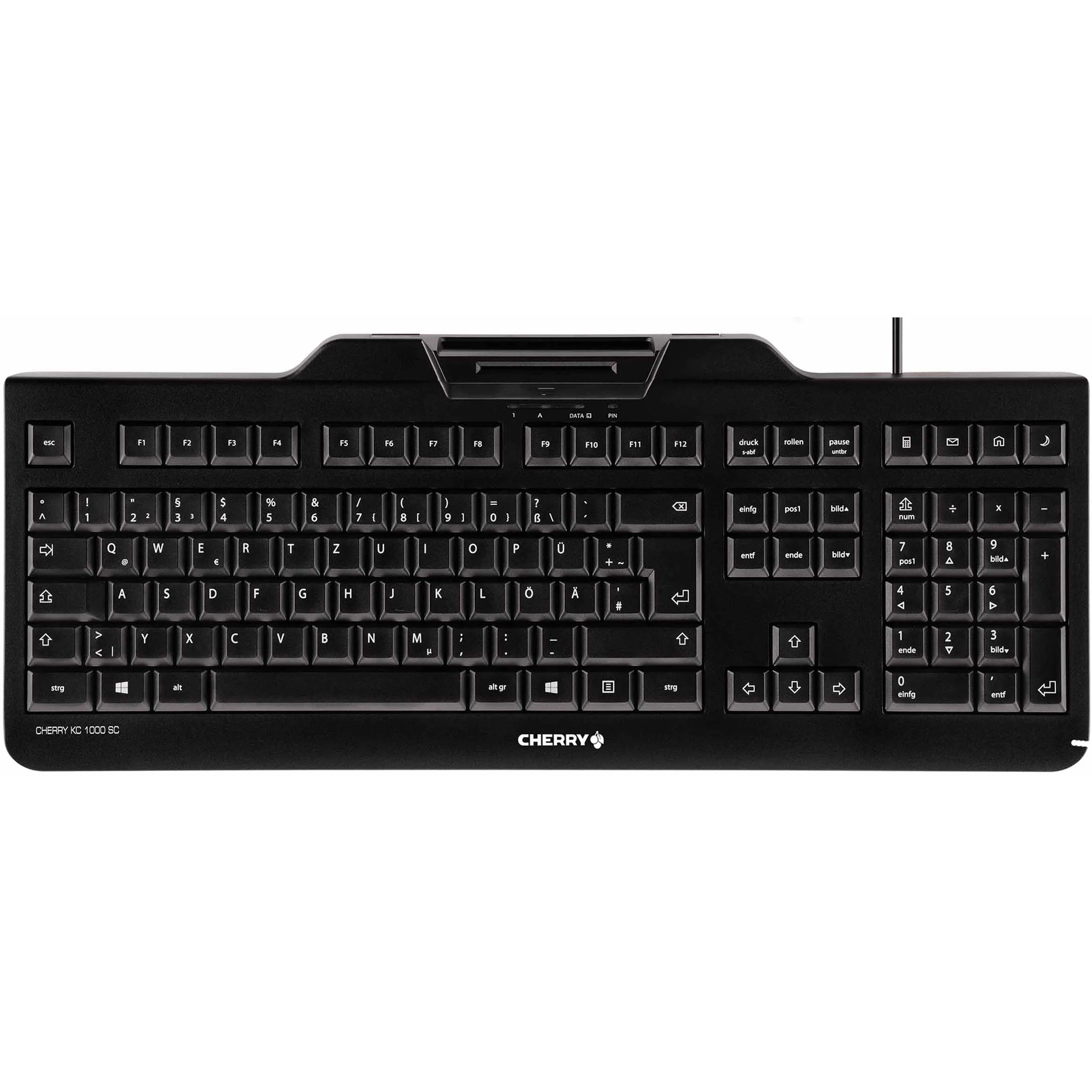

CHERRY JK-A0100EU Smartcard Keyboard (Black)
CHERRY JK-A0100EU-2 Overview
The black JK-A0100EU Smartcard Keyboard from CHERRY is designed to control logical access to networks in order to maintain a secure user base. The full size 104 + 4 position U.S. key layout provides optimum key arrangement for maximum productivity. Thanks to the low-profile (LPK) key technology, the keyboard supports a service life of 10 million actuations per key.
The JK-A0100EU Smartcard Keyboard requires the secondary authentication of a Smart Card before allowing access to the connected system. The PC/SC smart card reader is CCID and EMV Level 1 approved, and is also compatible with reading and writing ISO 7816-compliant smart cards. The reader has a 100,000 insertion life cycle. In addition to the smart-chipset card reader, the keyboard supports secure PIN entry. This secure keyboard is suited for regulated industries such as government, finance and healthcare, or any organization that needs access control to enhance the security of their network.
CHERRY JK-A0100EU-2 Specs
| Interface | USB |
| Key Layout | Full size 104 + 4 position US key layout with Euro symbol |
| Card Reader | Agency Approvals: EMV 2000 Level 1 Chip-Card Protocols: T=0, T=1, S=8, S=9, S=10 Contact: Mechanical swipe reader Software Interface: CT-Api, PC/SC Mating Cycles: Approximately 100,000 operations Compatible Chip Card Types: Reads and writes on all ISO 7816 cards Transmission Speed: Reader to Card: 420 kB/s Reader to System: Maximum 12 MB/s Chip Card Pulse Frequency: 4.8 MHz |
| Lifetime | Keyswitch: >10 million operations |
| Technology | Keyswitch: Low Profile Keyboard (LPK) |
| Current Consumption | Maximum 100 mA |
| Storage Temperature | -4 to 140°F (-20 to 65°C) |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Approvals | CE, GS, VDE, cURus, FCC, C-Tick, VCCI |
| Cable Length | Approximately 5.9' (1.8 m) |
| Dimensions | Approximately 18.0 x 7.4 x 1.8" (45.8 x 18.8 x 4.6 cm) |
| Weight | Approximately 1.85 lb (0.84 kg) |
| Package Weight | 2.48 lb |
| Box Dimensions (LxWxH) | 19.3 x 10 x 2.1" |
