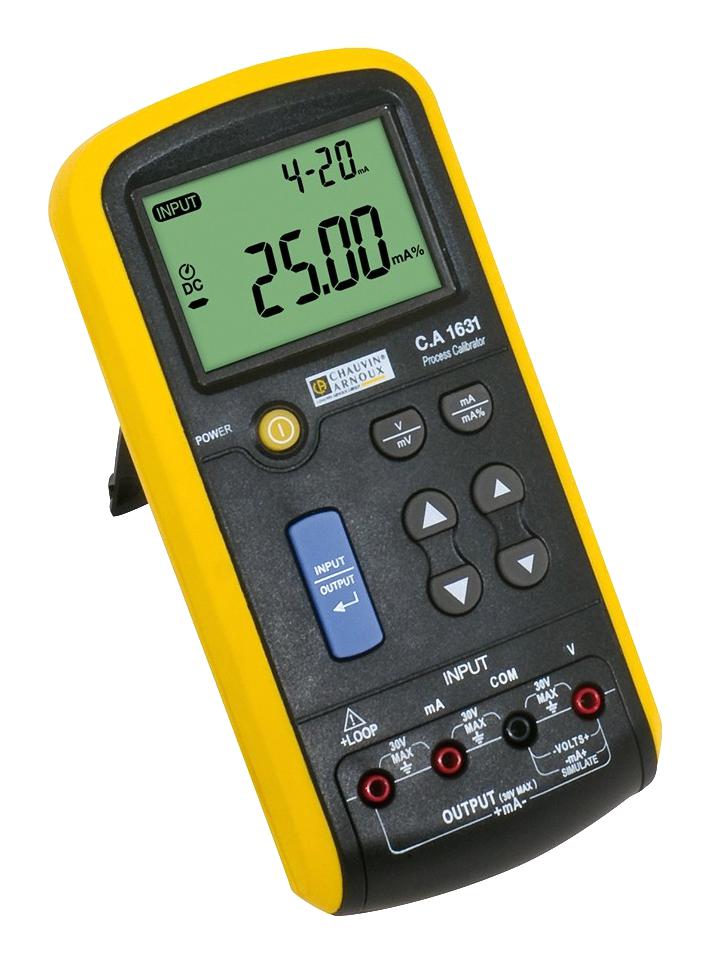

CHAUVIN ARNOUX P01654402 Calibrator, CA1631, Current, Voltage, 205 mm, 97 mm, 45 mm, Voltage:0.02%+3pts, Current:0.015%+3pts
CHAUVIN ARNOUX P01654402 Calibrator, CA1631, Current, Voltage, 205 mm, 97 mm, 45 mm, Voltage:0.02%+3pts, Current:0.015%+3pts
CA 1631 calibrator process can be used to measure and supply a DC current loop from 0 to 24mA with 0.015% accuracy and a DC voltage between 0 and 20V with an accuracy of +/- 0.02%. When used as a battery-powered stand-alone instrument, it offers a long battery life in the field. When connected to the mains, it can be used continuously without any time limit.
- 6 x 1.5V power supply
Contents
Calibrator process, 2 pairs of test wires and crocodile clip, 6 AAA 1.5V batteries, 1 x operating manual in 5 languages and 1 x carrying bag .
Footnotes
In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
Product details
| Calibration Type: Current, Voltage |
| External Height: 205mm |
| External Width: 97mm |
| External Depth: 45mm |
| Accuracy: Voltage:0.02%+3pts, Current:0.015%+3pts |
| Weight: 472g |
| Operating Temperature Min: -10°C |
| Operating Temperature Max: 55°C |
| Product Range: - |
Other details
| Brand | CHAUVIN ARNOUX |
| Part Number | P01654402 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
