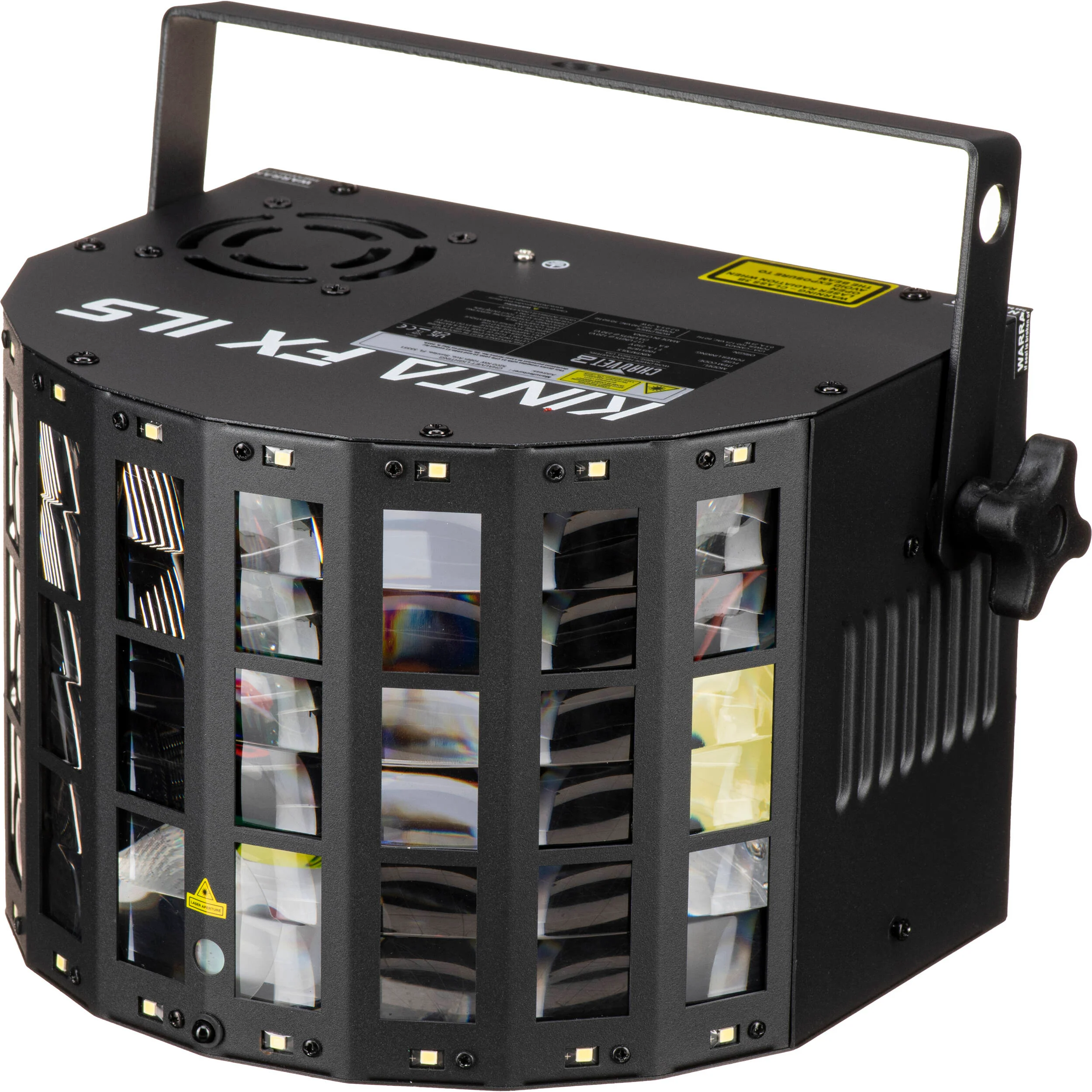

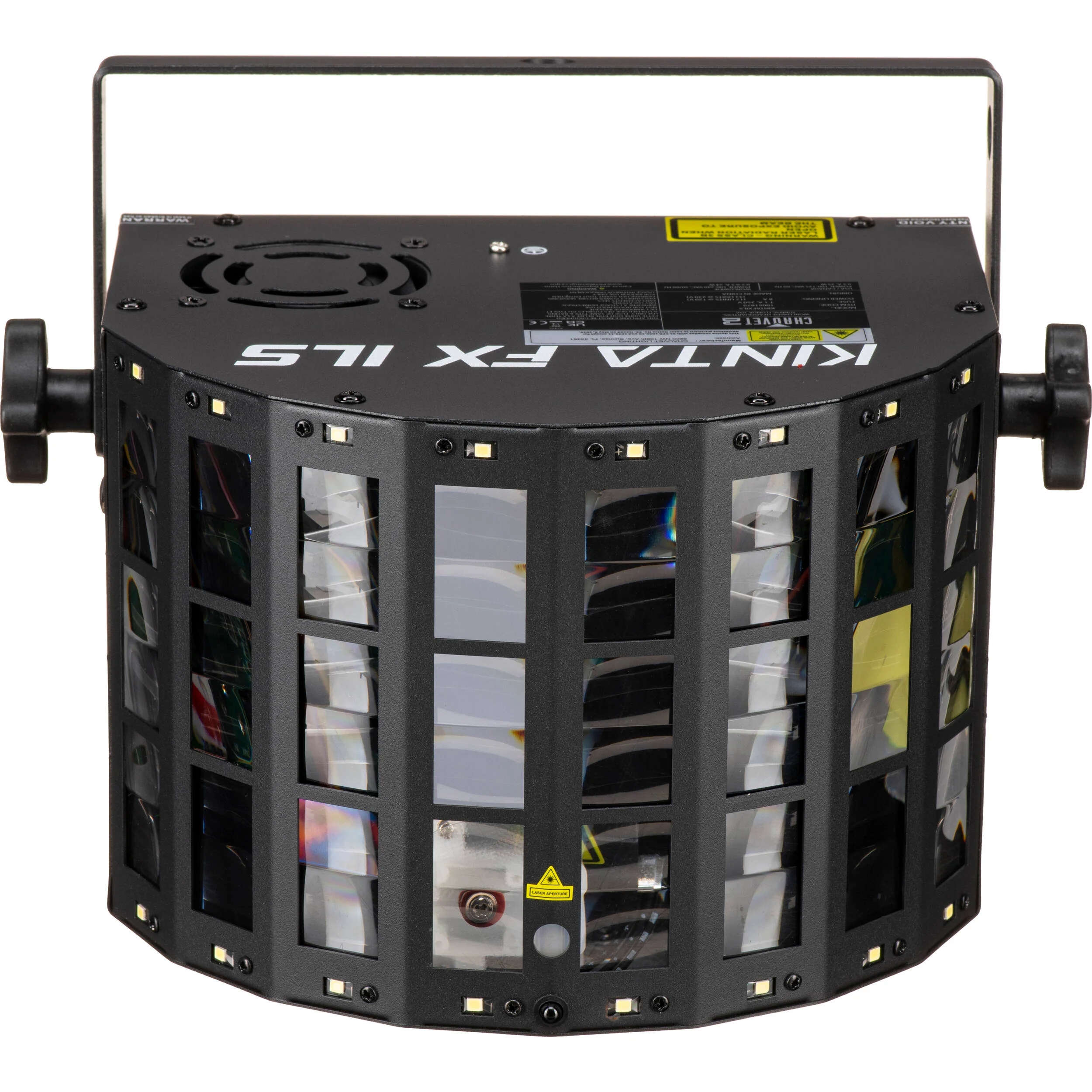

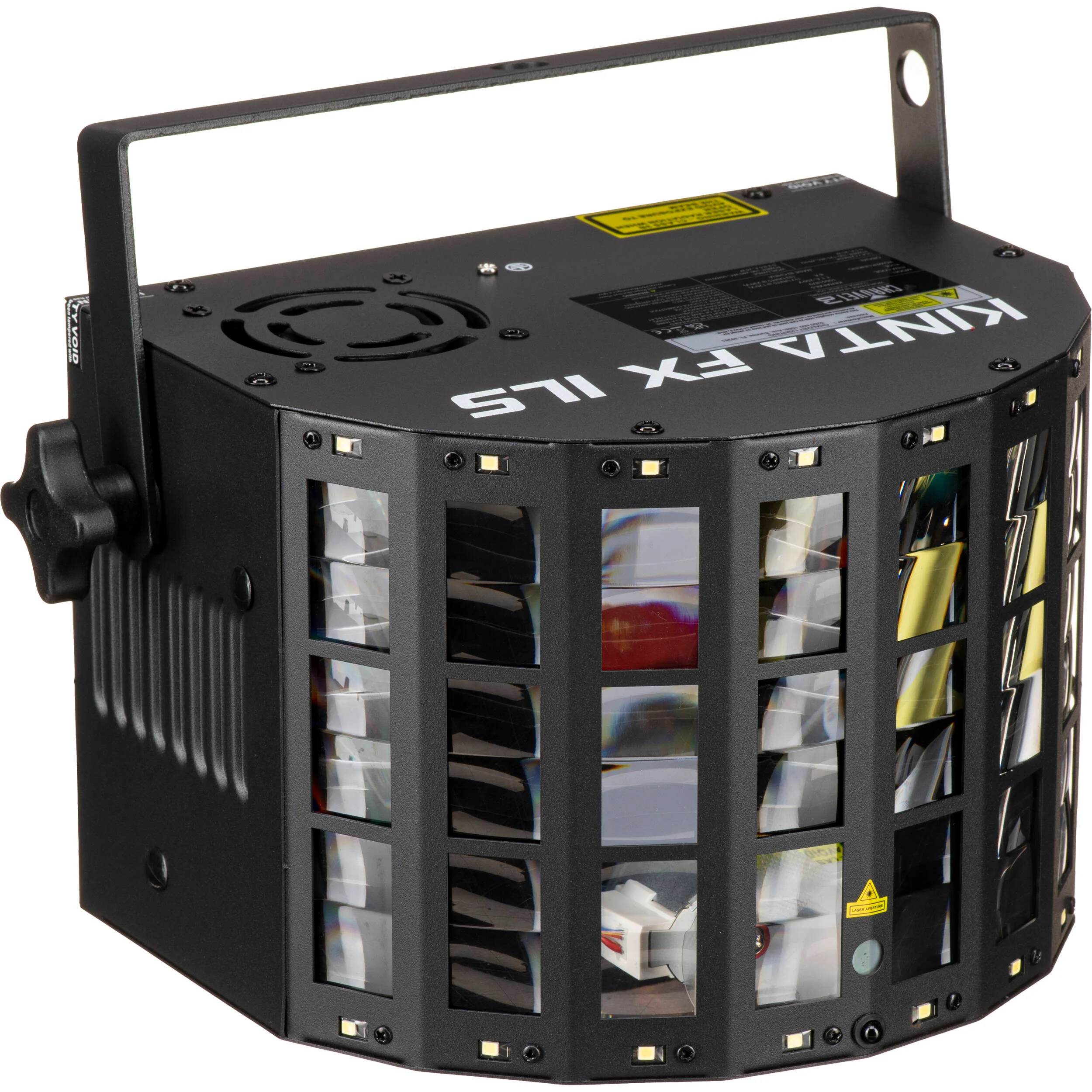

CHAUVET DJ Kinta FX ILS RGBW LED Derby, Laser, LED, Strobe Multi-Effect Fixture
CHAUVET DJ Kinta FX ILS Overview
Mobile entertainers and lighting technicians in need of a specialty light will be impressed with the CHAUVET DJ Kinta FX ILS, which combines an RGBW (red, green, blue, white) LED derby effect with green/red laser diodes and a white SMD LED strobe, in a single compact fixture. The Integrated Lighting System (ILS) is a complete lighting ecosystem technology that provides an advanced, coordinated light show across multiple fixture types, allowing any ILS-enabled fixer to be controlled wired or wirelessly.
The effects can be coordinated to create instant light shows with countless razor-sharp multicolor LED beams, eye-catching strobe effects and chases, and hundreds of red and green beams that can both chase and strobe. The fixture provides a wide coverage angle of 118° suitable for blanketing a stage or dance floor. The Kinta FX allows for both standalone and DMX operation. For use without a DMX controller, you can choose between sound-active or automatic modes. The Master/Slave option lets you coordinate multiple fixtures without the need for a controller. The fixture is equipped with a universal, auto-sensing power supply and is compatible with the IRC-6 wireless remote (available separately).
- Compact multi-effect with 4 LEDs (Kinta), laser, and SMD strobe
- Integrated Lighting System (ILS) is a complete lighting ecosystem technology that provides an advanced, coordinated light show across multiple fixture types
- D-Fi USB compatibility for wireless master/slave or DMX control
- Projects countless razor-sharp multicolor beams
- SMD strobes produce eye-catching strobe effects and chases
- Red and green laser casts hundreds of beams
- Easily control the unit from DMX, master/slave, IRC-6, or the digital display
- Save time running cables and extension cords by power linking multiple units
In the Box
- CHAUVET DJ Kinta FX ILS RGBW LED Derby, Laser, LED, Strobe Multi-Effect Fixture
- IEC Power Cord
CHAUVET DJ Kinta FX ILS Specs
| Fixture Type | Special Design |
| Light Source | Effect Light: 4 x Color LED - 7.5 W / 2.4 A Strobe: 16 x White LED (SMD) - 5 W / 1.6 A |
| Light Source Life Expectancy | 50,000 Hours |
| Colors | Effect Light: 1 x Red 1 x Green 1 x Blue 1 x White Strobe: White |
| Laser | Green: 520 nm / 30 mW Red: 650 nm / 100 mW |
| Coverage Angle | 118° |
| Shutter / Strobe | Electronic |
| Dimming | None |
| Operating Modes | DMX, Primary/Secondary, Sound-Active, Standalone |
| Macros / Programs | Auto-Program Chase Macro Color Macro |
| Effects | Strobe |
| Strobe Rate | Strobe: 1 to 20 Hz |
| Gobos | None |
| Control Protocols | DMX512 |
| DMX Channel Modes | 2 Mode(s): 2 / 9-Channel |
| Display / Controls | LED / 4-Button |
| Remote Control | IR Remote (with Optional Equipment) |

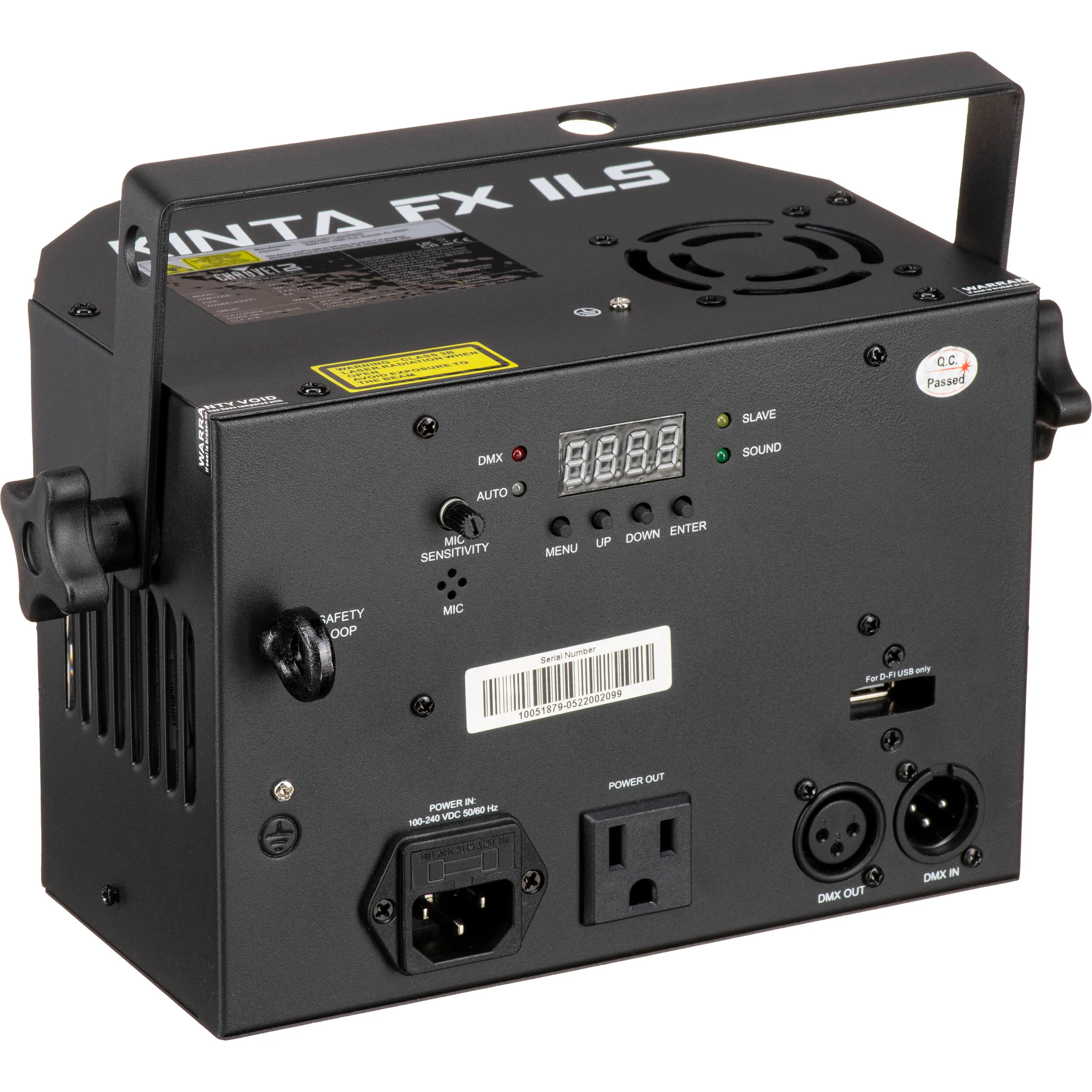

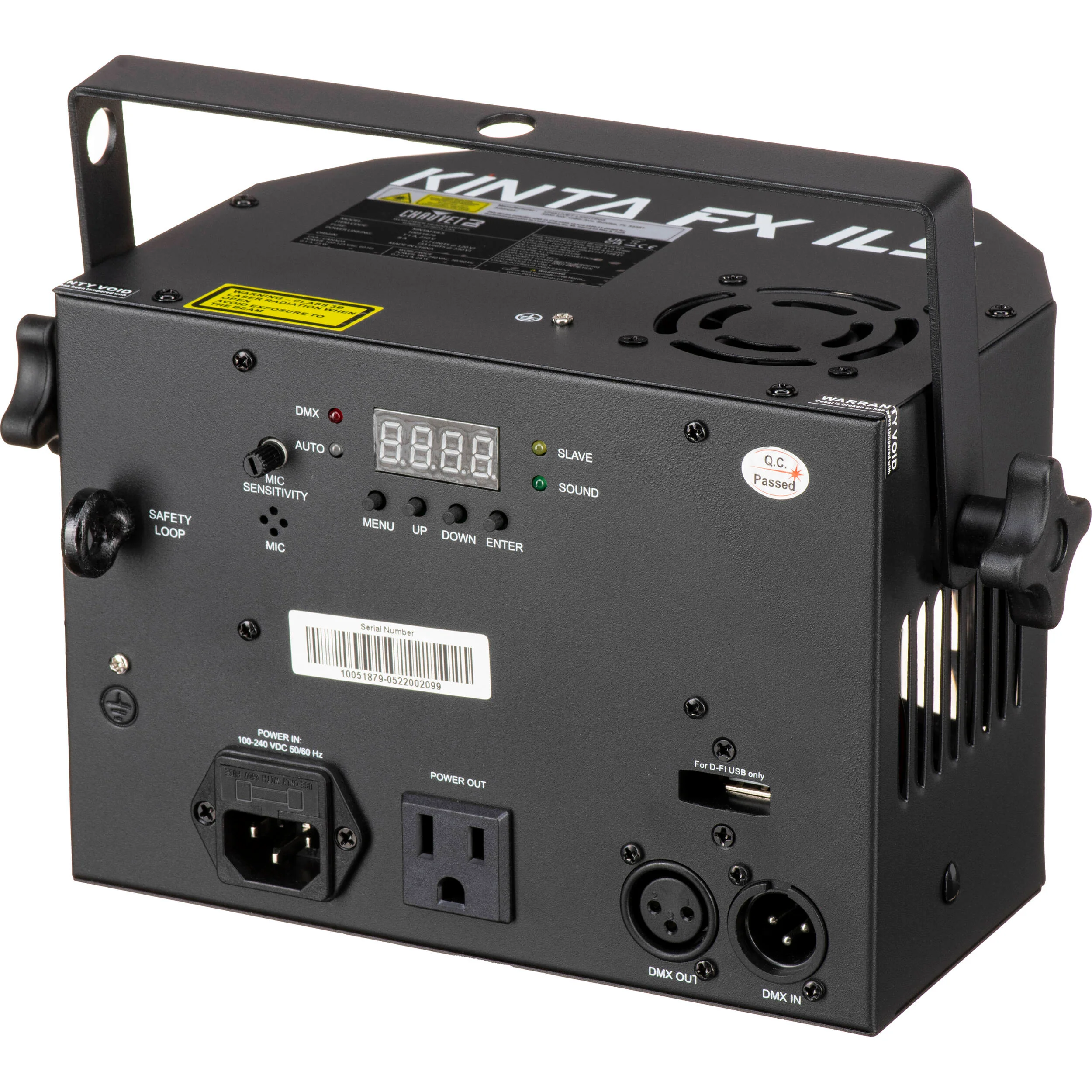

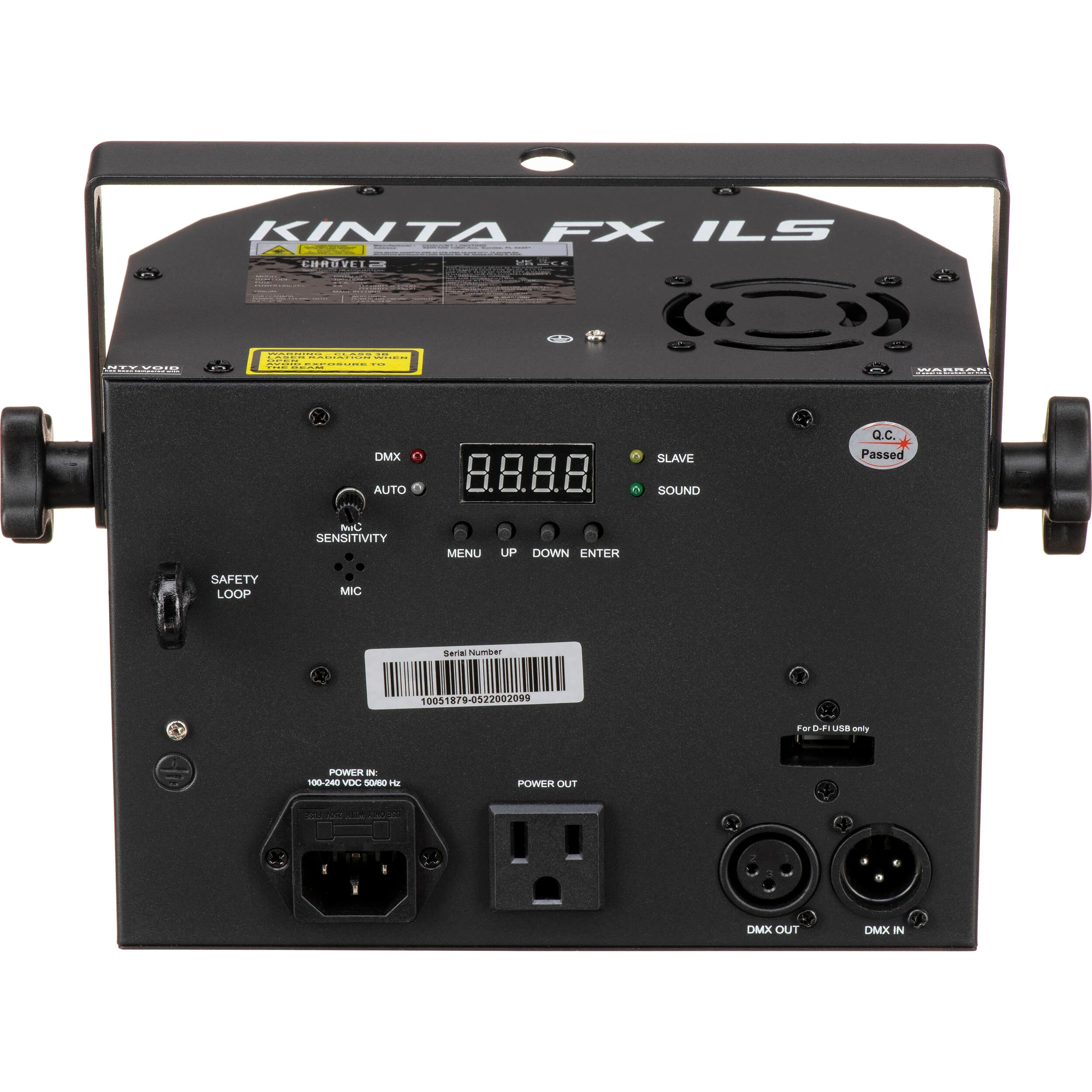

| Inputs/Outputs | 1 x XLR 3-Pin DMX Input 1 x XLR 3-Pin DMX Output |
| AC Input Power | 100 to 240 VAC, 50/60 Hz |
| AC Power Connector | Input: 1 x IEC Output: 1 x Edison |
| Fuse | T 1 A 250 V |
| Power / Current Consumption | 120 VAC, 60 Hz: 25 W / 0.5 A 230 VAC, 50 Hz: 24 W / 0.2 A |
| Power Linking | 17 Units at 120 VAC 33 Units at 230 VAC Total Current: 8 A |
| IP Rating | None |
| Mounting | Mounting Bracket |
| Included Accessories | 1 x Power Cable |
| Exterior Color | Black |
| Max Housing Temperature | 95°F / 35°C |
| Cooling | Fan |
| Certifications | CE, RoHS, *as per Manufacturer |
| Dimensions | 7.4 x 10.3 x 7.4" / 18.8 x 26.2 x 18.8 cm |
| Weight | 3.8 lb / 1.7 kg |
| Package Weight | 5.295 lb |
| Box Dimensions (LxWxH) | 13.4 x 10.5 x 8.1" |
CHAUVET DJ Kinta FX ILS Reviews
