ChamSys MagicQ Rack for Installations
ChamSys MagicQ Rack Overview

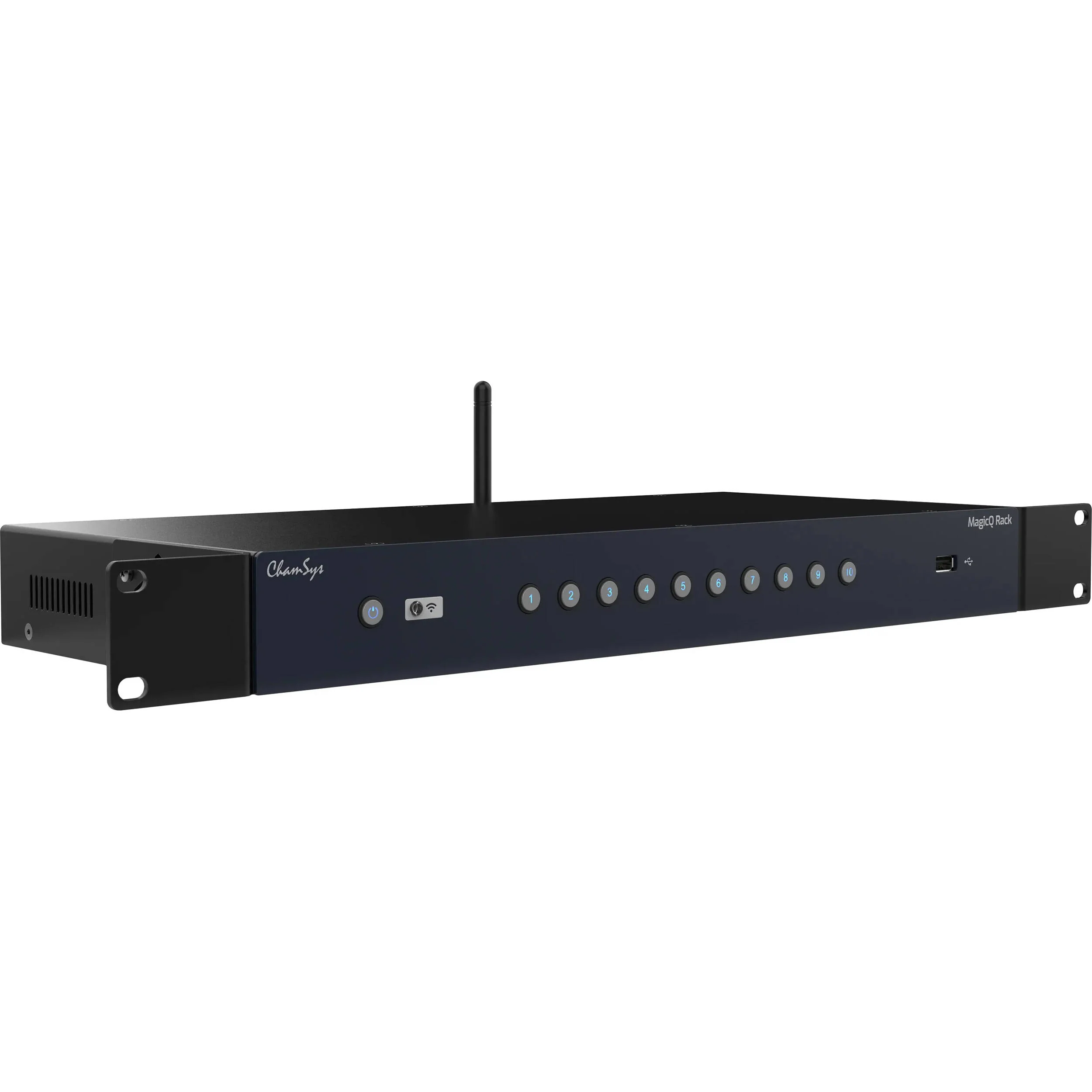

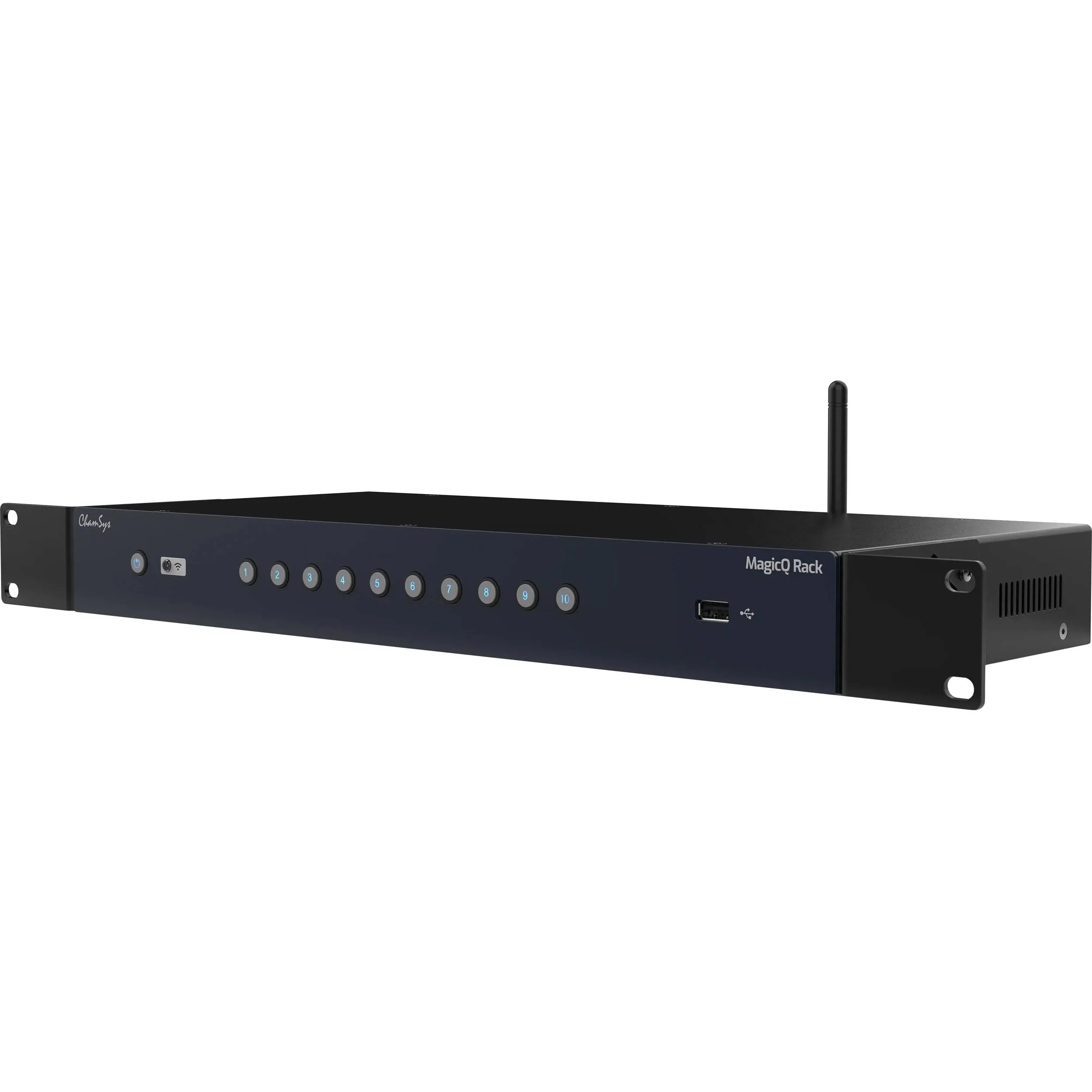

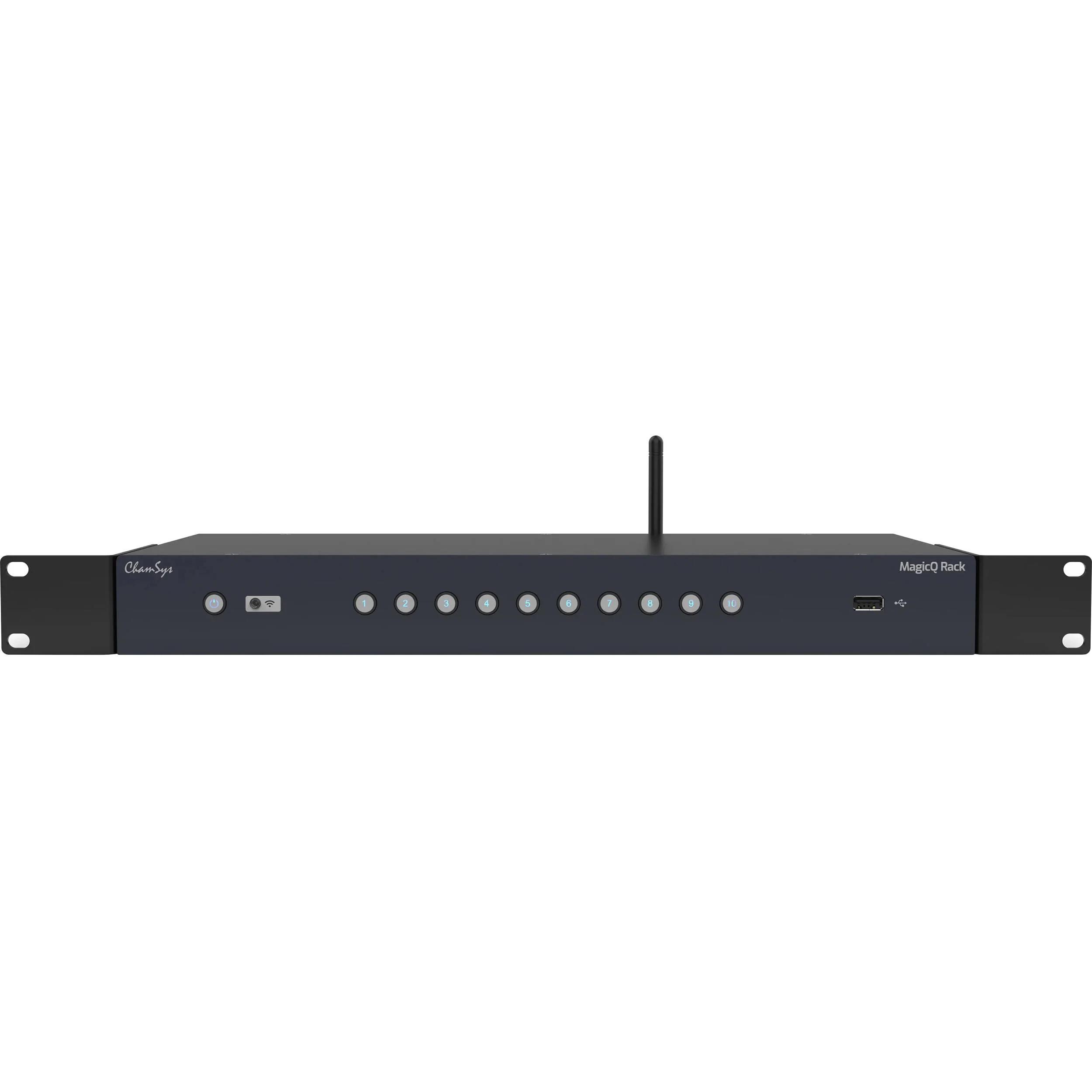

This MagicQ Rack from ChamSys is a full-featured rackmount rendition of the MagicQ console tailored specifically for installations. Operating on the same system as the MagicQ series, it functions autonomously, supporting various control methods such as scheduled events, OSC, UDP, and MIDI. With 10 buttons facilitating Playback and Execute functions, it seamlessly integrates with 10Scene wall plates to establish a sturdy lighting control system, boasting advanced features like pixel mapping and multi-element fixture control.
Equipped with 24 universes of DMX output, expandable to 48 through an optional license upgrade, it offers connectivity with two RDM-enabled DMX ports, built-in Wi-Fi for programming and remote access, and four 10Scene ports for connecting up to forty 10Scene wall plates. Versatile for installations and architectural contexts, this 19" 1 RU unit can be utilized as a desktop box or can be conveniently rackmounted using the provided rack ears. A Neutrik powerCON TRUE1 power cable is included.
Items Included
- ChamSys MagicQ Rack for Installations
- Wi-Fi Antenna
- 2 x Rackmount Ear
- 4 x 5-Pin Block 10Scene Connector
- Neutrik powerCON TRUE1 Power Cable
- Limited 2-Year Manufacturer Warranty
Additional Resources
ChamSys MagicQ Rack Specs
| DMX Channels |
12,288 Expandable to 24,576
24 Universes Supported (Expandable to 48 via Optional License Upgrade) |
| Buttons |
10 x 10Scene Button
|
| Software |
Max Number of Cues: 5000
Max Number of Cue Stacks: 2000 Max Number of Groups: 5000 Max Number of Palettes: 4096 Number of Media Server Layers Supported: 50 (Each Different Content) MIDI and MIDI Timecode Supported: Yes OSC Supported: Yes RDM Autopatch for Fast Show Patching Fixture Library of Over 48,000 Fixture Files Built-In FX Generator Color Picker and Gel Built-In Gel Library |
| USB I/O |
2 x USB-A Female Input
|
| Video I/O |
1x HDMI Output
|
| Audio I/O |
1x 1/8" / 3.5 mm Line Input
1x 1/8" / 3.5 mm Line Output |

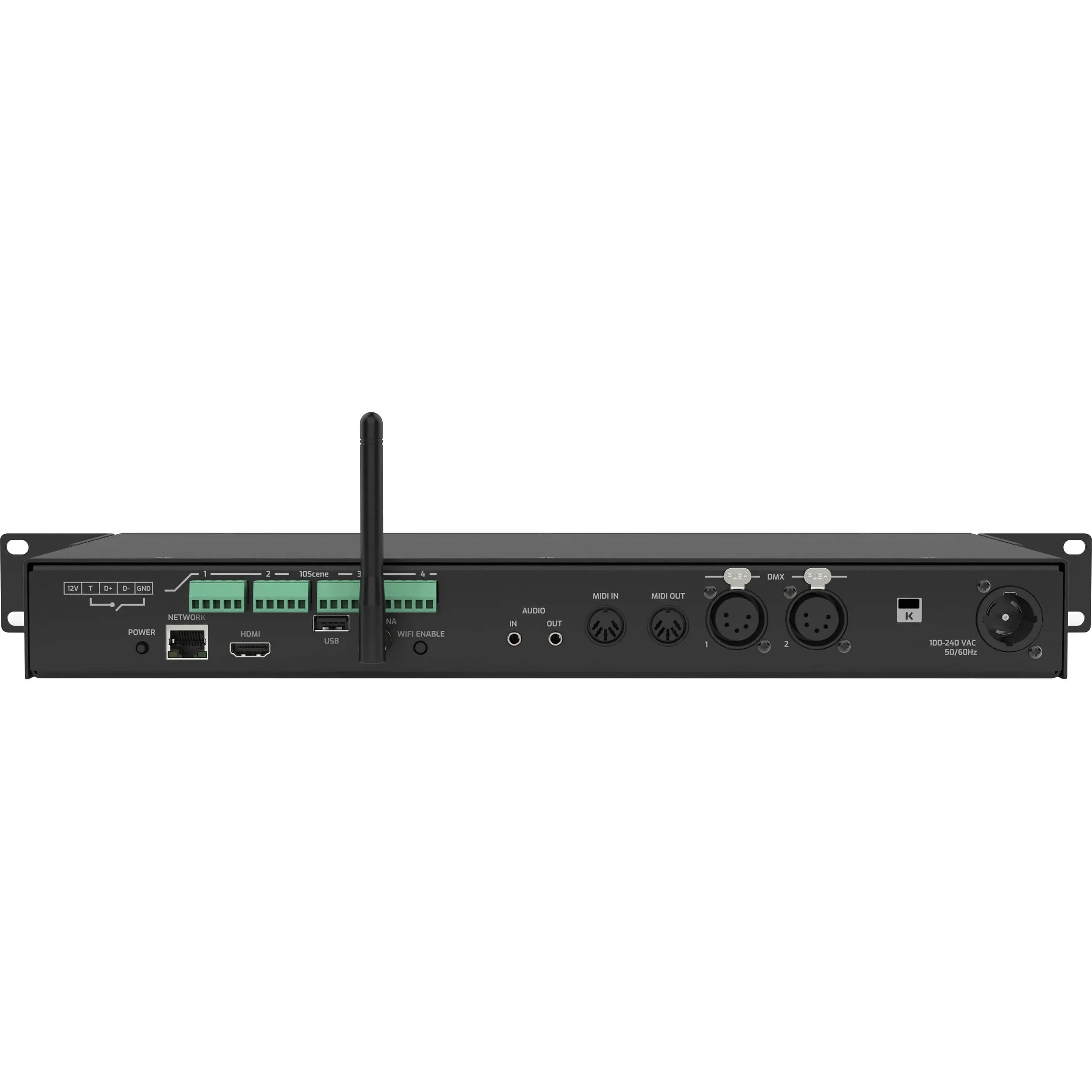

| Input and Output Connectors |
1 x RJ45 Network Port
4 x 5-Pin Block Connector for 10Scene 1 x MIDI Input 1 x MIDI Output 2 x 5-Pin XLR (DMX) |
| Wireless |
Wi-Fi
*Built-In |
| Power Source |
Plug-In Power (Included)
|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Mounting |
2x Rackmount Ear
|
| Color |
Black
|
| Dimensions |
158.7 x 76.8 x 17.7" / 403 x 195 x 45 cm
|
| Weight |
8.8 lb / 4 kg
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
