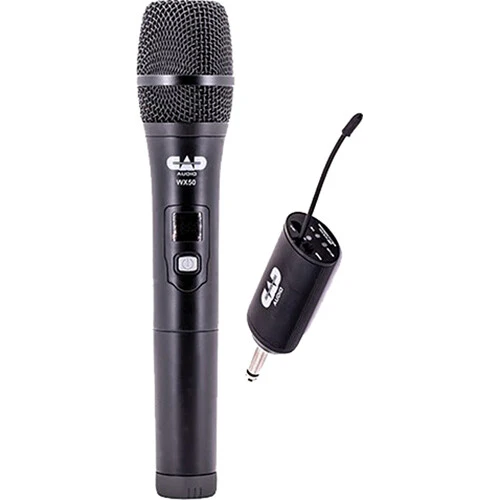

CAD WX50 Plug-In Digital Wireless System (A: 500 to 599 MHz)
CAD WX50 Overview
The WX50 Digital Frequency Agile Handheld Plug-In Wireless System from CAD is a quick, easy-to-use UHF mic system ideal for presenters, performers, karaoke parties, or anyone looking for a straightforward wireless microphone system. With the QuickMic connection design, the receiver can simply be plugged directly into any soundboard or PA system that possesses a 1/4" input and features extended battery life, a range of 164' between the receiver and the included mic, and a frequency agile design with 16 switchable frequencies.
The microphone comes equipped with a built-in transmitter and can run on two AA batteries for up to eight hours of operation, and both the USB rechargeable receiver and battery powered transmitter feature low-battery indicators. The transmitter is outfitted with a CADLive style capsule as well as an on/off mute button. The package also comes with a foam windscreen for outdoor use, a hexagonal rubber sleeve for protection against damage, and a 1/4" to 3.5mm plug adapter for the receiver. For situations where extremely compact size, minimal setup time, and ease of use are of paramount importance, the CAD WX50 can be an ideal choice.
- Fully digital audio
- Frequency agile design with 16 switchable frequencies
- Use up to 15 systems at the same time in ideal conditions
- Up to 164' range in ideal conditions

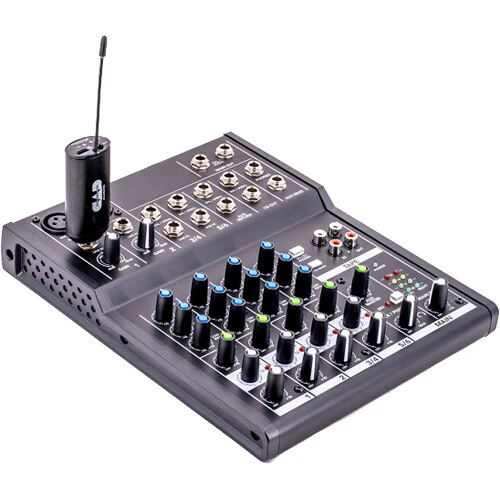

- Proprietary QuickMic connection plugs straight into mixing board via integrated 1/4" jack

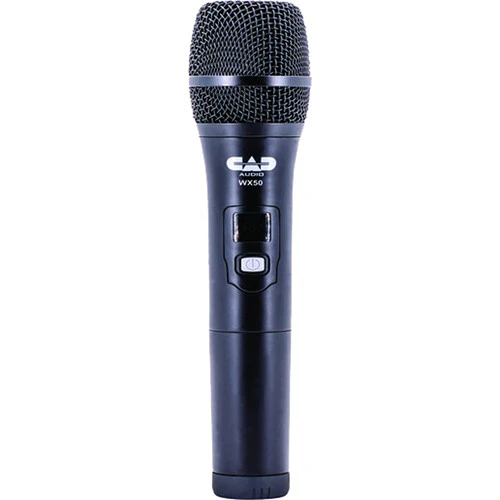

- Handheld transmitter with CADLive style dynamic Neodymium capsule
- Transmitter and receiver feature low-battery indicators
- Mute on/off switch on mic
- Handheld transmitter utilizes AA batteries with up to 8 hours of operation
- 20 Hz to 16 kHz frequency response
- 500 to 599 MHz frequency band
In the Box
- CAD WX50 Plug-In Digital Wireless System (A: 500 to 599 MHz)
- USB Charging Cable
- 1/4" to 3.5mm TRS Adapter
- Foam Wind Screen
- Hexagonal Rubber Sleeve
CAD WX50 Specs
| Wireless Technology | Digital UHF |
| Number of RF Channel Frequencies | 16 |
| Included Transmitters | 1 x Handheld |
| Diversity | Frequency |
| RF Frequency Band | 500 to 599 MHz |
| Max Operating Range | 164' / 50 m |
| Max Transmitters per Band | 15 |
| Built-In Recorder | No |
| Encryption | Yes |
| Modulation | QPSK |
| Receiver Type | Plug-In |
| Antenna | 1 x Flexible Whip |
| Number of Audio Channels | 1 |
| Audio I/O | 1 x 1/4" TS Male Unbalanced Mic Output |
| Phantom Power Protection | None |
| Frequency Response | 20 Hz to 16 kHz |
| Network I/O | None |
| Word Clock I/O | None |
| USB/Lightning Connectivity | None |
| Power Requirements | Battery |
| Battery Type | 1 x Built-In Rechargeable (Included) |
| Approx. Battery Life | 8 Hours (Rechargeable) |
| AC/DC Power Adapter | VDC Not Included |
| Display & Indicators | 2 x LED |
| Dimensions | 1.5 x 3.7" / 3.8 x 9.4 cm (without Antennas) |
| Weight | 0.1 lb / 45 g |
| Transmitter Type | Handheld |
| RF Output Power | 10 mW |
| Audio I/O | None |
| Pad | None |
| Muting | Off/On Switch |
| Auto-Level Control | No |
| Signal Processing | None |
| Frequency Response | 20 Hz to 16 kHz |
| Sync Method | 2.4 GHz QPSK |
| Antenna | 1 x Internal, Fixed (Handheld) |
| Approximate RF Sensitivity | -43 dBV / 6.8 mV |
| Power Requirements | Battery |
| Battery Type | 2 x AA |
| Approx. Battery Life | 8 Hours (Alkaline) |
| USB/Lightning Connectivity | None |
| Display & Indicators | 1 x LCD (Battery Status) |
| Dimensions | 2 x 10" / 5.1 x 25.4 cm |
| Weight | 0.4 lb / 0.2 kg |
| Microphone Type | Handheld |
| Color | Black |
| Sound Field | Mono |
| Operating Principle | Pressure Gradient |
| Capsule | Dynamic |
| Polar Pattern | Cardioid |
| Package Weight | 0.76 lb |
| Box Dimensions (LxWxH) | 11.1 x 4 x 2.5" |
CAD WX50 Reviews
