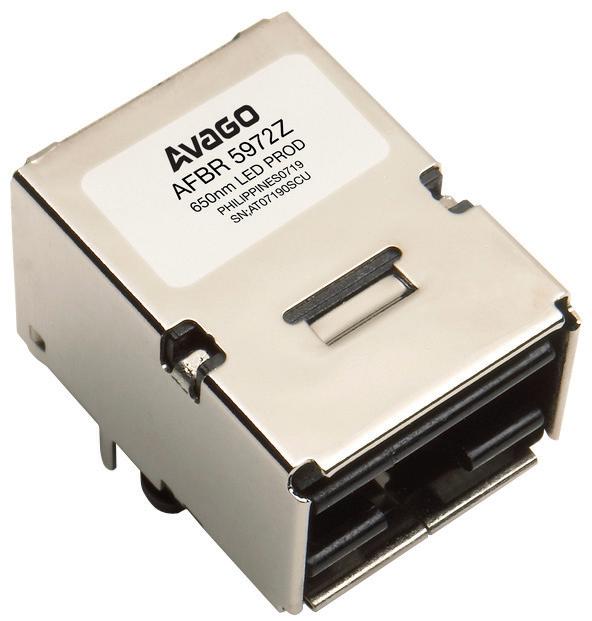

Broadcom AFBR-5972Z AFBR-5972Z Fiber Optic Transceiver Compact Versatile Link 650 nm 3.3 V 100 Mbps

The AFBR-5972Z is a 650nm compact Transceiver with compact versatile-link connector for fast Ethernet over POF. The device provides the system designer with the ability to implement fast Ethernet (100Mbps) over standard bandwidth 0.5±0.05 NA POF. It features a very compact design and has a form factor similar to the UTP connector. This transceiver features a compact versatile-link duplex connector and is compatible with existing simplex versatile-link connectors.

• Compatible to IEEE 802.3 100BASE-FX PMA using POF PMD
• Link lengths up to 50m POF (NA0.5) or 70m POF (NA0.3)
• 3.3V Operation
• LVPECL input and output data connections
• LVPECL signal detect output
• -40 to 85°C Operating temperature range

Applications

Communications & Networking, Industrial

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	BROADCOM
Part Number	AFBR-5972Z
Quantity	Each
Technical Data Sheet EN
Product Change Notice EN
Application Note EN
