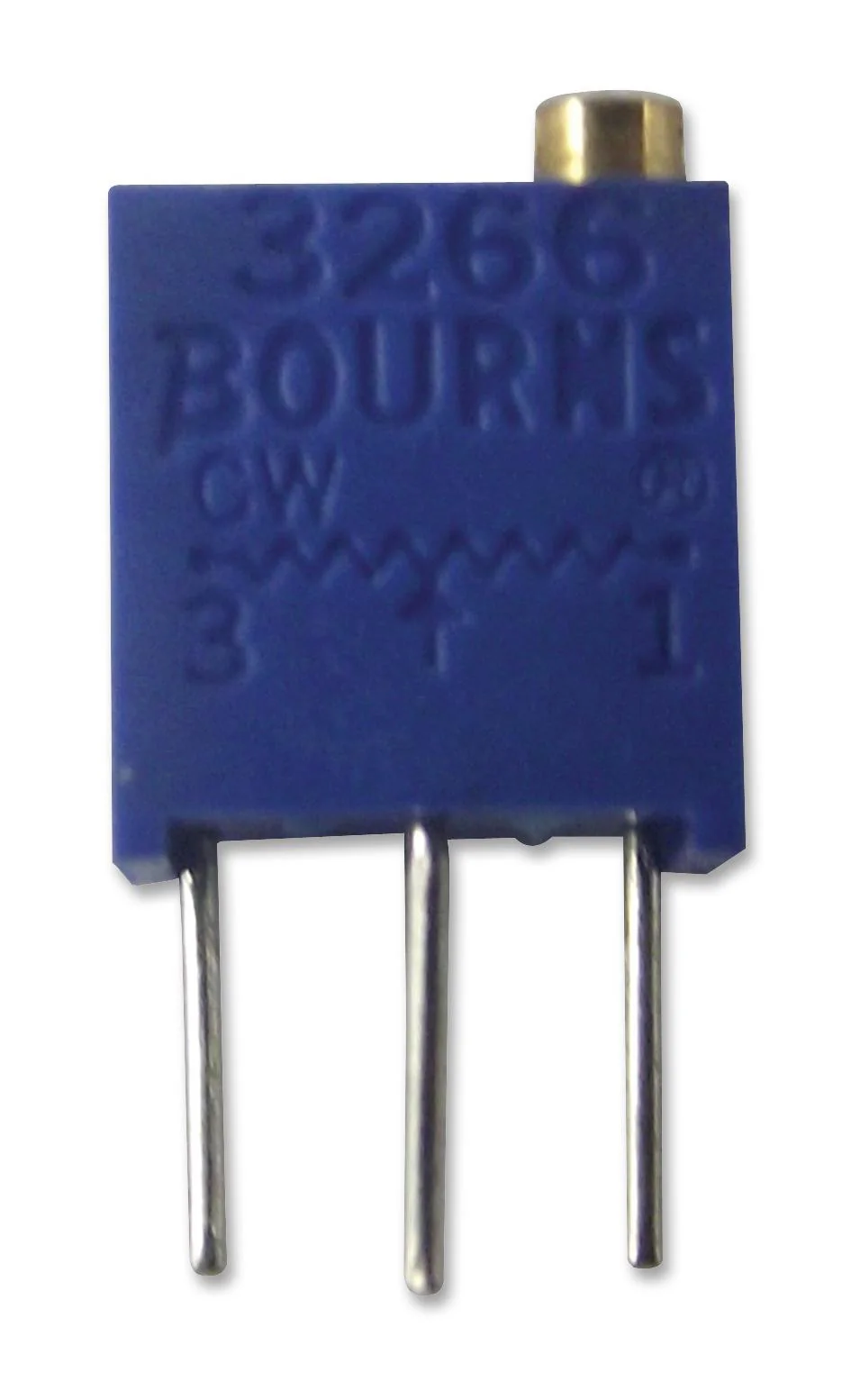

BOURNS 3266W-1-204LF Trimmer Potentiometer, 200 kohm, 250 mW, � 10%, Trimpot 3266 Series, 12 Turns, Through Hole
BOURNS 3266W-1-204LF Trimmer Potentiometer, 200 kohm, 250 mW, � 10%, Trimpot 3266 Series, 12 Turns, Through Hole
- 1/4inch square potentiometer
- Side or top adjustment with lead screw
- Sealing is IP65 rated
- 12 turns and rotational life of 200 cycles
- Resistance value ranges from 10 ohm to 1Mohm
- �10% tolerance
- Temperature coefficient is �100ppm/�C
- Operating temperature range -55�C to +125�C
- Power rating is 0.25W
- Standoffs allow thorough PC board cleaning
Applications
Industrial, Consumer Electronics, Portable Devices, Power Management
Product details
| Temperature Coefficient | � 100ppm/�C |
| Power Rating | 250mW |
| No. of Turns | 12Turns |
| Potentiometer Mounting | Through Hole |
| Automotive Qualification Standard | - |
| Resistance Tolerance | � 10% |
| Product Range | Trimpot 3266 Series |
| Track Resistance | 200kohm |
| MSL | - |
Other details
| Brand | BOURNS |
| Part Number | 3266W-1-204LF |
| Quantity | Each |
| Technical Data Sheet EN |  |
| 3D Product Image EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
