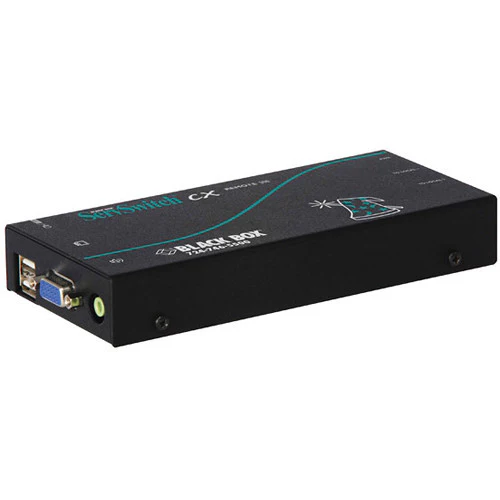

Black Box ServSwitch CX Basic User Station with USB
- 2 x USB Type A Female Connectors
- 2 x RJ-45 Female Connectors
- 1 x HD15 Female Connector
- Dual Remote Links
- 1 x Barrel Type Plug
The ServSwitch CX Basic User Station with USB from Black Box allows you to connect a remote KVM to the ServSwitch CX or ServSwitch CX with IP. The ServSwitch CX basic user station should be used with CAT5 or skew-free cabling to achieve the maximum distance. It can also be used with CATx cabling to achieve shorter distances. The ServSwitch allows you to make two separate links up to 328' to different remote systems. The USB keyboard and mouse connections are available without audio and de-skew compensation capabilities.
The user station comes with port connectivity including two USB type A female connectors for mouse and keyboard, one HD15 female connector for video, two RJ-45 female connectors for interconnect, and a barrel type jack center positive output connector.- Connects a remote KVM to the ServSwitch CX or ServSwitch CX with IP
- Achieve maximum distance with CAT5 or skew-free cabling and CATx cabling to achieve shorter distances.
- Power Supply
- Power Cord
- Limited 2-Year Warranty
| Connectors | Mouse and Keyboard: 2 x USB type A female Video: 1 x HD15 female Interconnect: 2 x RJ-45 female Power: 1 x barrel type jack center positive |
| Distance | 2 links up to 328' (100 m) |
| Power | |
|---|---|
| Power Source | Transformer Type (PS649-R2) |
| Input Voltage | 100-240 VAC, 50-60 Hz |
| Input Current | 0.4 A |
| Output Voltage | 5 VDC |
| Output Current | 2 A |
| Environmental | |
|---|---|
| Operating Temperature | 0 to 40�C (32 to 104�F) |
| Operating Humidity | Non-condensing: 5 to 85% |
| Storage Temperature | -30 to 80�C (-22 to 176�F) |
| Ambient Temperature | Adjacent Temperature: Below 39�F (4�C) for proper cooling of unit |
| Altitude | Maximum: 25,000' (7620 m) |
| Compliance | FCC (Part 15 Class A) UL (Power Supply Listed as E144572) CE and RoHS |
| Dimensions (W x H x D) | 2.9 x 0.9 x 4.9" (75.9 x 24.8 x 124.9 mm) |
| Weight | 1 oz (30 g) |
| Packaging Info | |
|---|---|
| Package Weight | 2.35 lb |
| Box Dimensions (LxWxH) | 11.6 x 9.7 x 2.2" |
