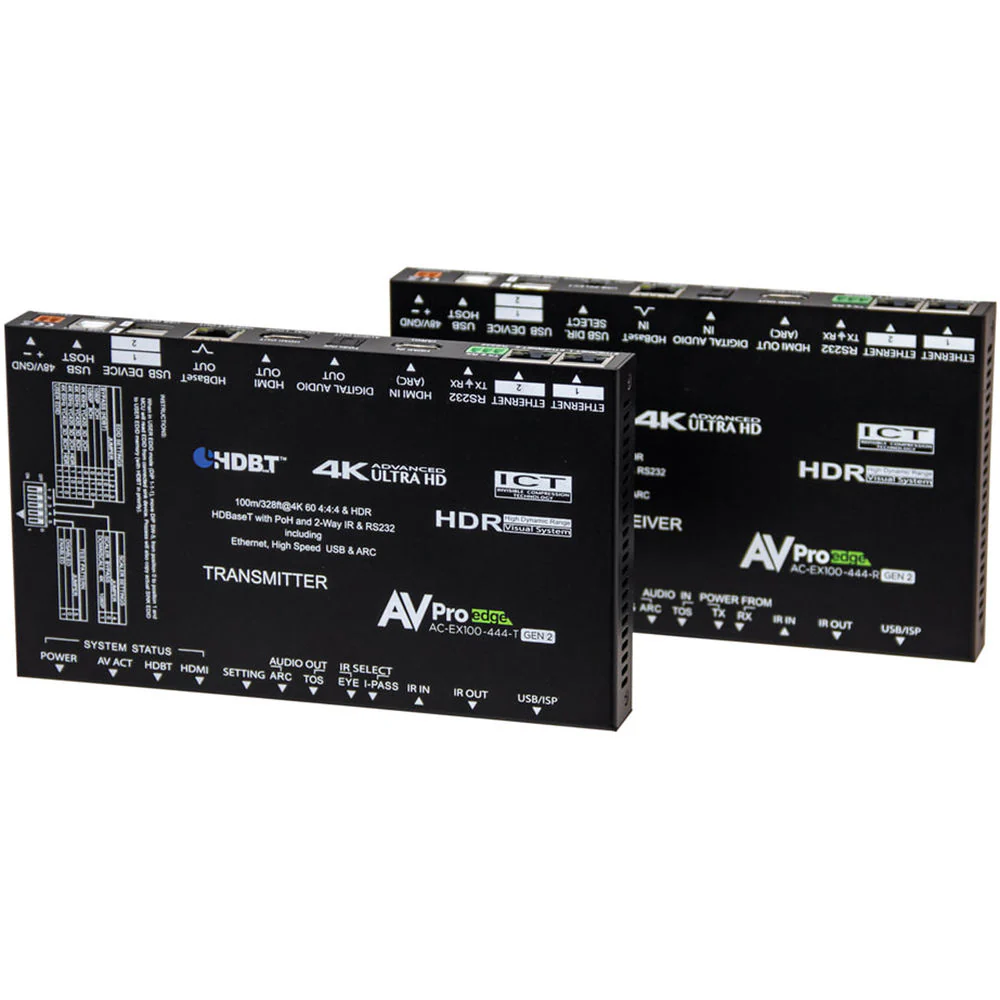

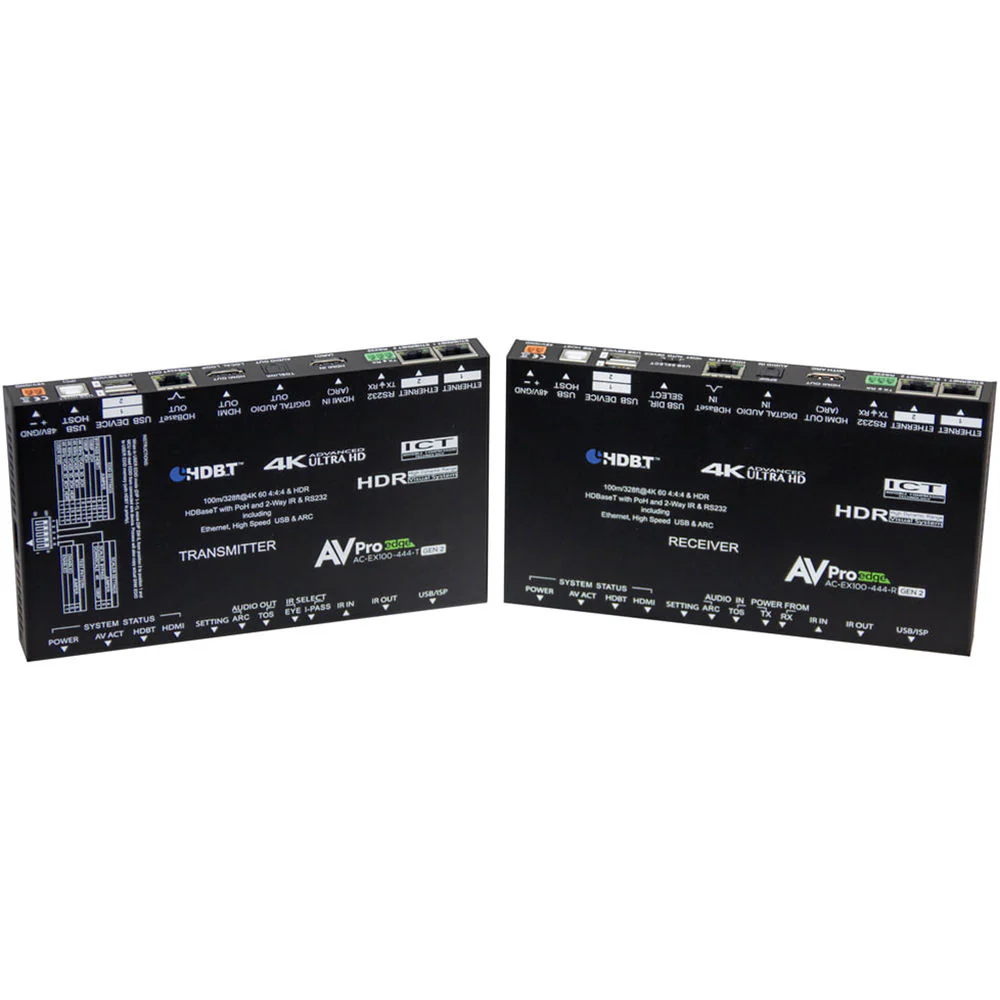

AVPro Edge 4K HDMI 2.0 over HDBaseT Tx/Rx Video Extender Kit (330')
AVPro Edge AVP-AC-EX100-444-KIT Overview
Transmit video and control signaling in a data center, conference room, or classroom with this 4K HDMI 2.0 over HDBaseT Tx/Rx Video Extender Kit from AVPro Edge . This transmitter and receiver pair can transmit up to DCI 4K60 video and embedded audio up to 330'. The units are slim and compact so they can fit into any media setup. Using Invisible Compression Technology (ICT), the extenders transmit up to 18 GB/s, retaining HDR metadata, up to 12-bit 4:4:4 color, and prevents color shifts and banding.

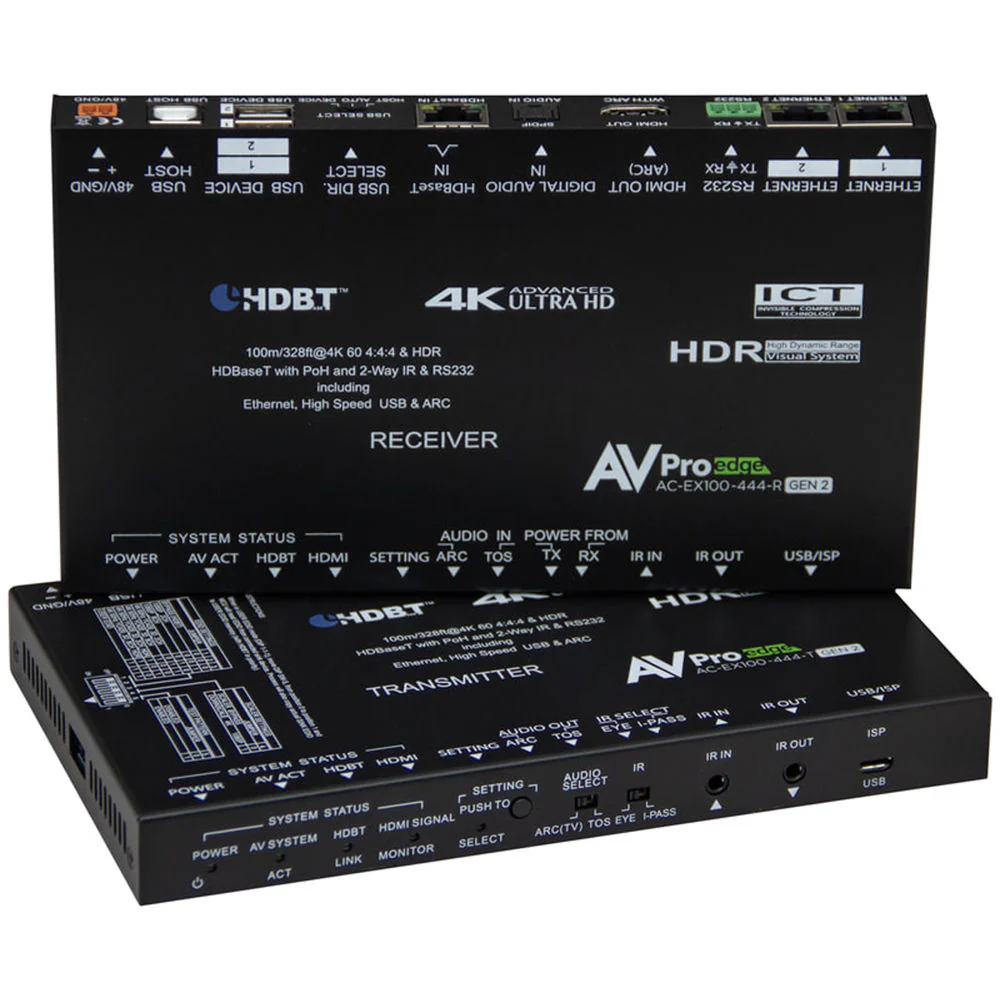

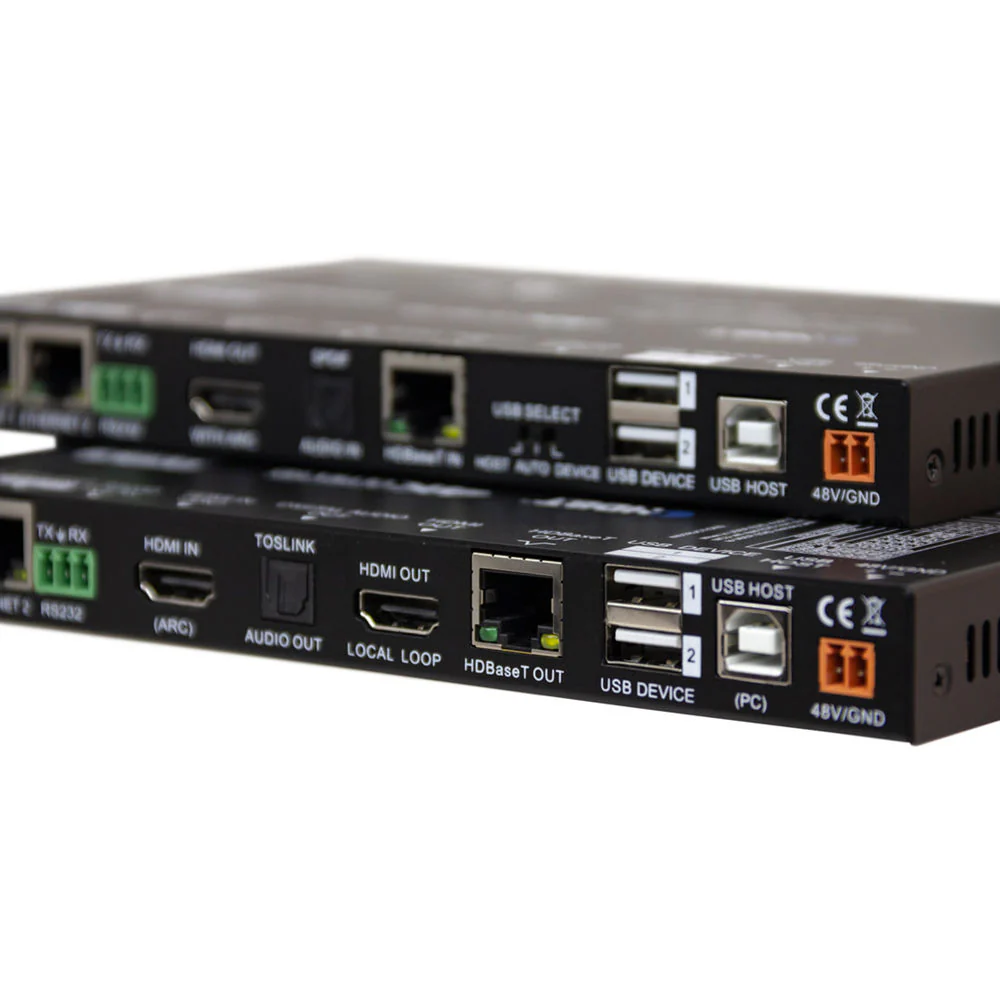

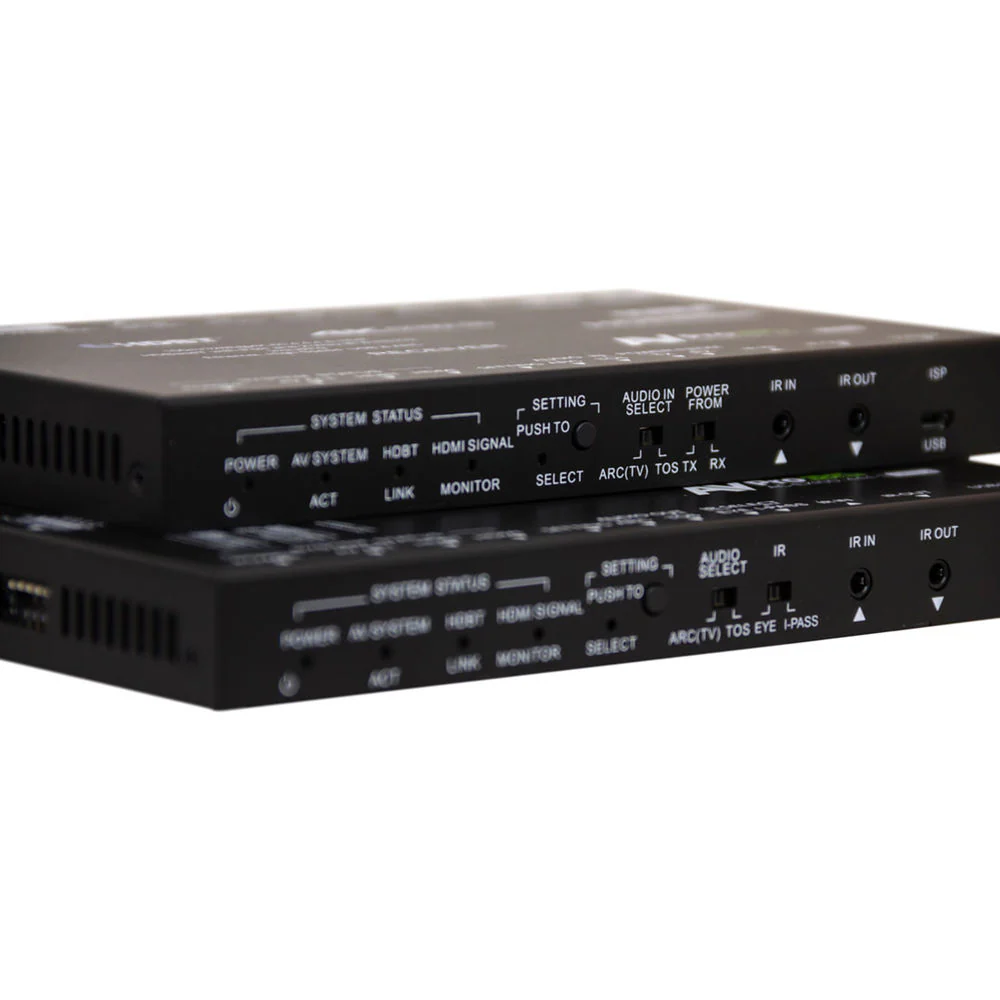

The transmitter features one HDMI 2.0 input, one HDMI 2.0 loop output, two USB Type-A and one USB Type-B input for KVM capabilities. The HDBaseT output connects a Cat 6a cable to transmit the video with embedded audio as well as serial signaling. It also features a 3-pin RS-232 terminal block, an optical TOSLINK output for extracted audio, and dual Ethernet ports. It also features 3.5mm IR input and outputs for IR pass-through.
The receiver features one HDMI 2.0 output, two USB Type-A ports, and one USB Type-B host output for KVM capabilities. The HDBaseT input connects a Cat 6a cable to receive the video from the transmitter with embedded audio as well as TOSLINK audio signals. It also features a 3-pin RS-232 serial terminal block, an optical Toslink audio return input, and dual Ethernet ports. It also features 3.5mm IR input and outputs for IR pass-through.
Embedded audio support includes transport of uncompressed two-channel PCM, LPCM 5.1 & 7.1, Dolby Digital, DTS, Dolby TrueHD, DTS HD-Master Audio, and Dolby Atmos audio. The system supports ESD protection up to 7KV, and it features a 3-20V protection circuit to safely transport IR signals.

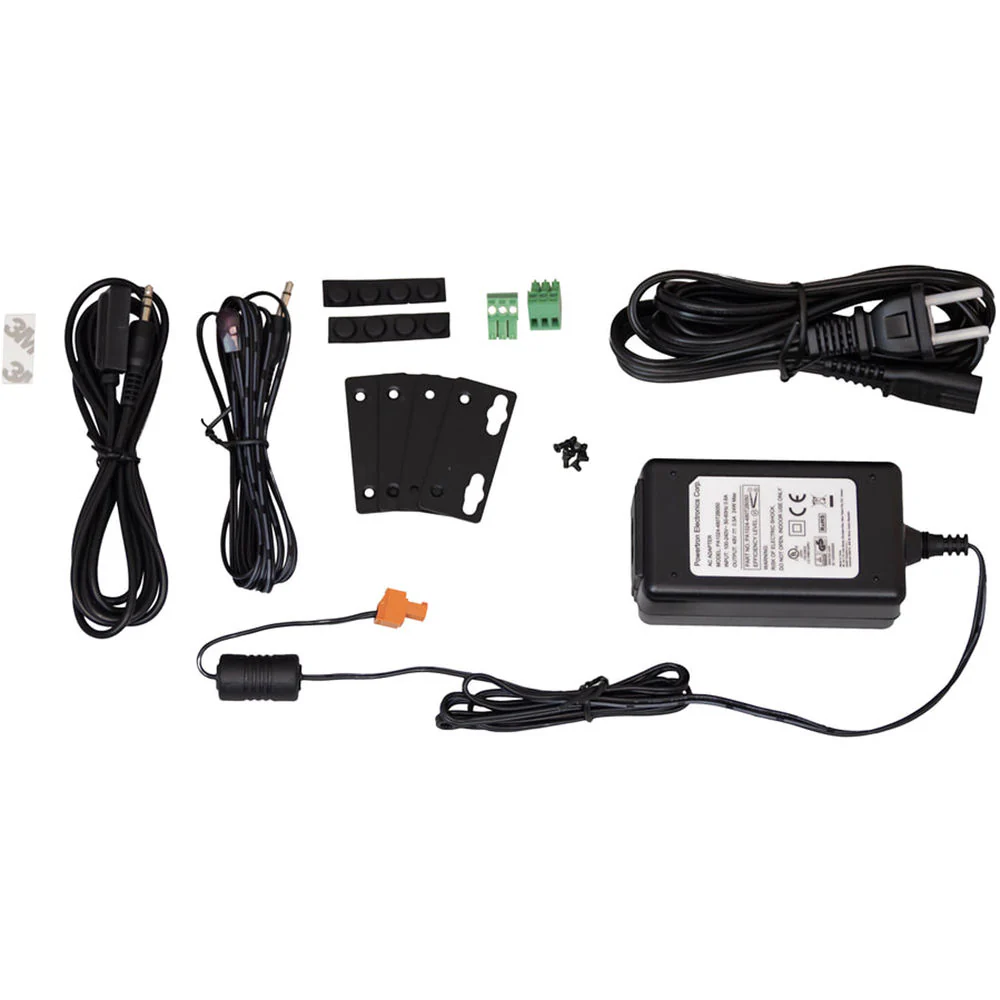

Only one power supply is included since the units support 48V power-over-HDBaseT (PoH), allowing one unit to be powered by the other, saving valuable outlet space. Also included with the kit are Tx and Rx IR cables, four 3-pin terminal blocks for the RS-232 ports, and rack ears for mounting.
In the Box
- AVPro Edge 4K HDMI 2.0 over HDBaseT Tx/Rx Video Extender Kit (330')
- AC-EX100-444-T-GEN2 Transmitter
- AC-EX100-444-T-GEN2 Receiver
- 48V Power Supply with Cable
- IR Transmitter Unit
- IR Receiver Unit
- 4 x Terminal Blocks
- Rack Ears
- Limited 10-Year Warranty
AVPro Edge AVP-AC-EX100-444-KIT Specs

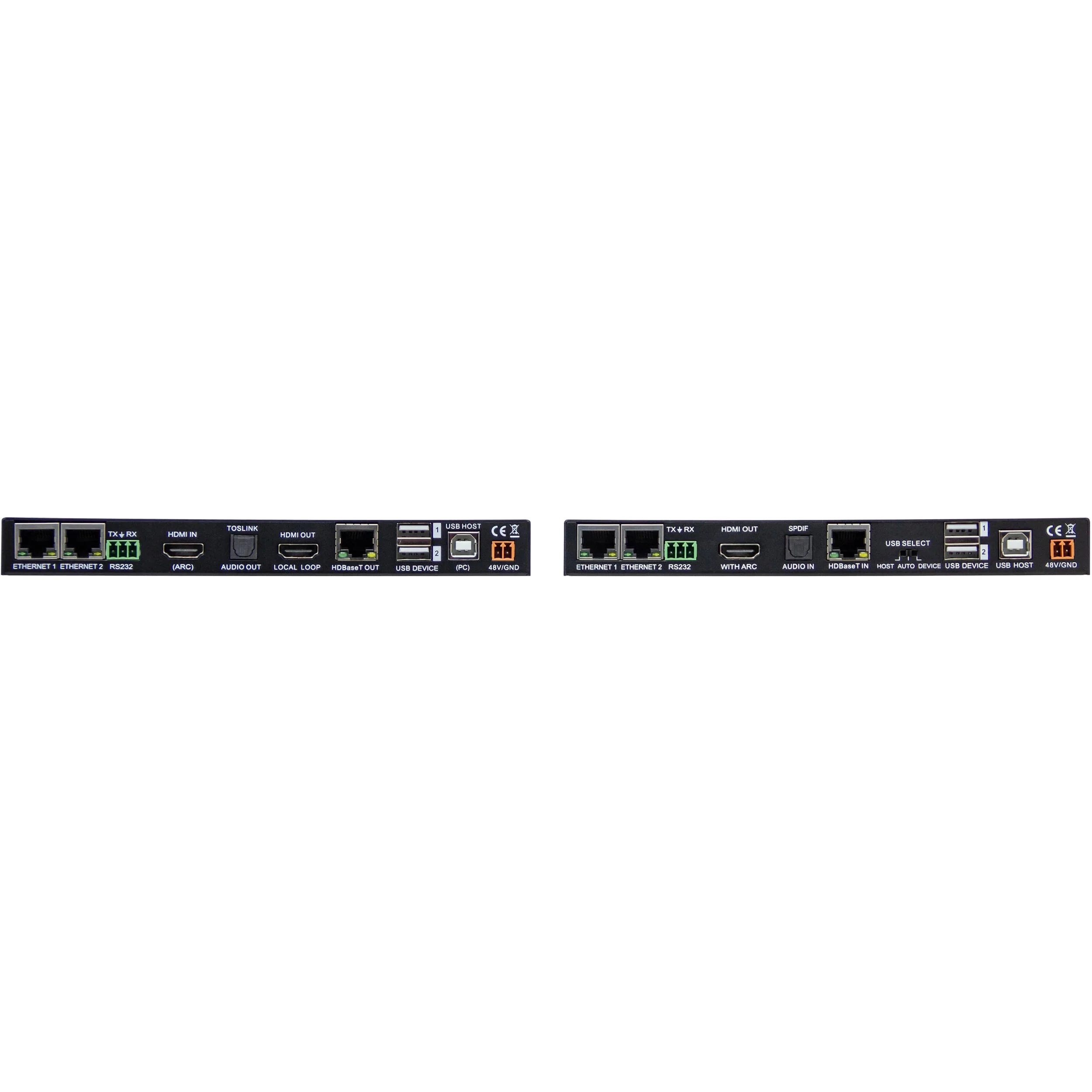

| Input Connectors | 1 x HDMI (HDMI 2.0) Female 1 x 1/8" / 3.5 mm TS (IR) Female 1 x 3-Pin Euroblock (RS-232) Female 2 x USB Type-A (Keyboard / Mouse) Female 1 x USB Type-B (Keyboard / Mouse) Female 1 x TOSLINK (S/PDIF) Female |
| Embedded Audio Input | HDMI: 2-Channel (per Input) |
| Output Connectors | 1 x RJ45 (HDBaseT) Female 1 x 1/8" / 3.5 mm TS (IR) Female 2 x RJ45 (LAN) Female 1 x HDMI (HDMI 2.0) Female |
| Input Connectors | 1 x RJ45 (HDBaseT) Female 1 x 1/8" / 3.5 mm TS (IR) Female 2 x RJ45 (LAN) Female 1 x TOSLINK (S/PDIF) Female |
| Output Connectors | 1 x HDMI (HDMI 2.0) Female 1 x 1/8" / 3.5 mm TS (IR) Female 1 x 3-Pin Euroblock (RS-232) Female 2 x USB Type-A (Keyboard / Mouse) Female 1 x USB Type-B (Keyboard / Mouse) Female |
| Embedded Audio Output | HDMI: 2-Channel (per Output) |
| HDCP Support | Version 2.2 |
| EDID Support | Yes |
| Max Transmission Distance | DCI 4K, UHD 4K at 60 Hz: 330' / 100.6 m (via Cat 6a/7) |
| Video Format | HDMI (10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YUV) DCI 4K: 24/30/60 fps 1080p: 30/60 fps |
| Supported Cable Types | Cat 6a/7 UTP, STP |
| Transmitter Power Connector | 1 x 2-Pin Euroblock (48 VDC) Input |
| Receiver Power Connector | 1 x 2-Pin Euroblock (48 VDC) Input |
| Transmitter Power Consumption | Power Supply: 100 to 240 VAC at 0.5 A (12 W) |
| Receiver Power Consumption | Power Supply: 100 to 240 VAC at 0.5 A (12 W) |
| Operating Temperature | 23 to 125°F / -5 to 51°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 5 to 90% (Recommended) |
| Cable Length | 330' / 100.58 m |
| Transmitter Dimensions | 7.75 x 4.48 x 0.86" / 196.85 x 113.68 x 21.8 mm |
| Receiver Dimensions | 7.75 x 4.48 x 0.86" / 196.85 x 113.68 x 21.8 mm |
| Transmitter Weight | 1.2 lb / 540 g |
| Receiver Weight | 1.2 lb / 540 g |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
