AV Costar Omni LX Overview

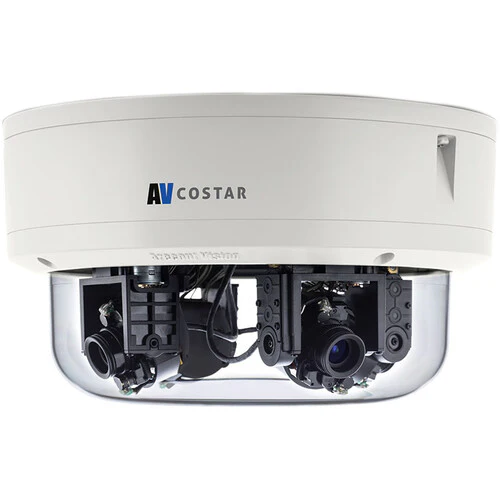

Monitor your surroundings with the ConteraIP Omni LX RS AV20576RS 20MP Outdoor Multi-Sensor Network Dome Camera from Arecont Vision. This multi-sensor camera uses four 1/2.8" 5MP progressive scan CMOS sensors to capture video at a combined resolution of 20MP at 30 fps. The camera is equipped with four 3.3-6.6mm motorized varifocal lenses that each deliver a 96 to 42? horizontal field of view. Two-way audio is possible thanks to an audio input (amplification required) and output. An onboard memory card slot accepts microSDXC cards up to 1TB (available separately). Integrated PoE technology simplifies connectivity by transferring data and power through a single cable.

Compliance with ONVIF profiles G, M, S, and T enables interoperability with a wide range of surveillance devices. This camera is housed in an IP66- and IK10-rated enclosure that is suitable for outdoor use in areas at risk of vandalism.

Four individual camera gimbals each equipped with a motorized varifocal lens that can be remotely setup in any position around a 360? track
180, 270, and 360? field of view preset positions
IR cut filter for true day and night functionality
SNAPstream+ (Smart Noise Adaptation and Processing) optimizes bandwidth efficiency
Image settings include: programmable brightness, contrast, sharpness, saturation, and hue
Analytics include: motion detection (1024 detection zones), camera tamper, intrusion detection, line crossing, and loitering
Additional features include: unlimited privacy masking, backlight compensation, 120 dB wide dynamic range, up to ten users, and smart GOP
NDAA and TAA compliant

Items Included

  • AV Costar ConteraIP Omni LX RS AV20576RS 20MP Outdoor Multi-Sensor Network Dome Camera
  • Power Cable
  • Alarm Cable
  • Limited 36-Month Manufacturer Warranty

Additional Resources

    AV Costar Omni LX Specs

    Key Specs
    Image Sensor
    1/2.8"-Type CMOS
    Focal Length
    3.3 to 6.6mm
    Field of View
    Horizontal: 96 to 42?
    Pan/Tilt
    No
    Power I/O
    1x Barrel
    1x DC
    1x RJ45
    Imaging
    Number of Lenses
    4
    Image Sensor
    1/2.8"-Type CMOS
    Sensor Resolution
    Effective: 5 Megapixel
    IR Cut Filter
    Yes Mechanical
    Day/Night
    True
    Exposure Control
    Minimum Illumination
    0.15 Lux (Color)
    0.15 Lux (Black and White)
    Lens
    Focal Length
    3.3 to 6.6mm
    Max Optical Zoom
    2x
    Field of View
    Horizontal: 96 to 42?
    Maximum Aperture
    f/1.8
    Video
    Automatic Gain Control
    Yes
    Video Capture
    Max IP Streaming
    via RJ45
    2592 x 1944 up to 30.00 fps
    Multi-View Streaming
    Yes: 3 Streams
    Control
    Camera Angle Adjustment
    Horizontal: 0 to 360?
    Vertical: 0 to 135?
    Pan/Tilt
    No
    Networking
    Security
    HTTPS, IEEE 802.1X
    Supported Protocols
    DHCP, FTP, HTTP, IPv4/v6, NTP, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP, Zero Configuration, ONVIF Profile G, ONVIF Profile M, ONVIF Profile S, ONVIF Profile T
    Interface
    Media/Memory Card Slot
    Single Slot: microSDXC Only [1 TB Maximum]
    Other I/O
    1x RJ45
    1- or 2-Way Audio
    Two-Way
    Audio Formats
    G.711
    External Storage Options
    NAS
    System Integration
    Analytics
    Motion Detection, Camera Sabotage/Tampering, Intrusion Detection, Virtual-Line Crossing Detection, Loitering
    Sensors & Alarms
    Event Trigger
    Yes
    Event Action
    Recording, Notification, Alarm
    Alarm I/O
    1 / 1
    Power
    Power I/O
    1x Barrel
    1x DC
    1x RJ45
    Power Consumption
    25.5
    General
    Materials
    Aluminum, Plastic
    Environmental Resistance
    Dust/Water-Resistant (IP66)
    Impact Resistance
    Impact-Resistant (IK10)
    Operating Conditions
    -40 to 122?F / -40 to 50?C up to90% Humidity
    Storage Conditions
    -40 to 140?F / -40 to 60?C
    Mobile App Compatible
    No
    Dimensions (W x H x D)
    8.8 x 4.9" / 223.4 x 125.4 mm
    Weight
    5.2 lb / 2.36 kg (Body Only)
    Packaging Info
    Package Weight
    6.515 lb
    Box Dimensions (LxWxH)
    11.7 x 11.1 x 8.2"

    All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
