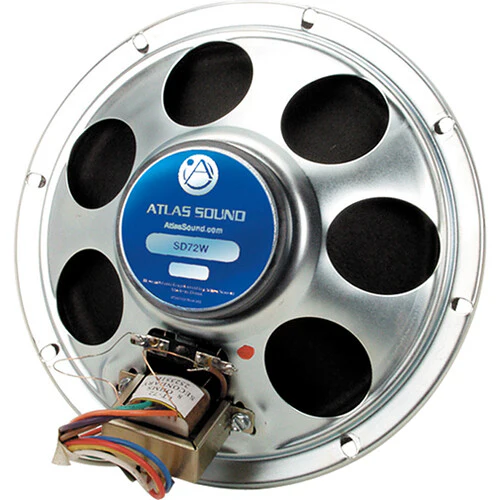

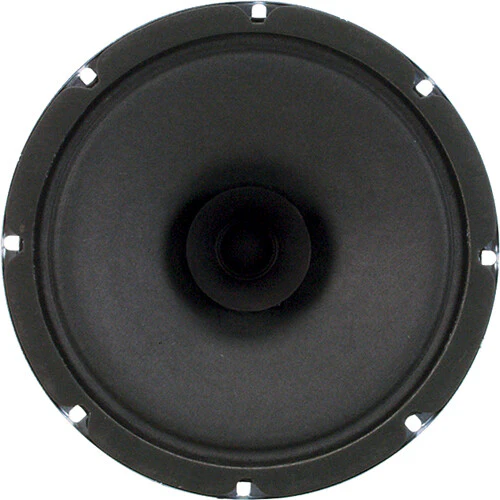

AtlasIED SD72 8" Preassembled Speaker Package with Transformer
AtlasIED TSD72 Overview
Designed for most paging or background applications, the AtlasIED SD72 is an 8" dual-cone speaker with similar qualities to the preceding C-Series speakers. The SD72 features a 10 oz ceramic magnet and includes a curvilinear, treated paper cone for lower harmonic distortion. The loudspeaker is also equipped with a full 1" diameter copper voice coil with a black anodized aluminum former for better power dissipation.
The SD72 offers a frequency range of 45 Hz to 19 kHz with a sensitivity of 97 dB and a dispersion angle of 105° The factory installed 25/70V line matching transformer provides tap selections ranging from .25 to 5W. It mounts a wide variety of AtlasIED round and square baffles and enclosures to meet functional and aesthetic application requirements.
Items Included
- AtlasIED SD72 8" Preassembled Speaker Package with Transformer
- Mounting Screws
- Limited 5-Year Manufacturer Warranty
Additional Resources
AtlasIED TSD72 Specs
| Active/Passive |
Passive
|
| Number of Included Speakers |
1
|
| Speaker Configuration |
Full-Range
|
| Power Handling |
25 W Peak
|
| Constant Voltage / Transformer Taps |
25 V / 70 V
0.25 / 0.5 / 1 / 2 / 5 W |
| Impedance |
8 Ohms
|
| Full-Range Driver |
1x 8" / 203.2 mm Paper Cone
|
| Color |
Black
|
| Active/Passive |
Passive
|
| Number of Included Speakers |
1
|
| Speaker Configuration |
Full-Range
|
| Power Handling |
25 W Peak
|
| Constant Voltage / Transformer Taps |
25 V / 70 V
0.25 / 0.5 / 1 / 2 / 5 W |
| Impedance |
8 Ohms
|
| Transformer Wattage |
5 W
|
| Full-Range Driver |
1x 8" / 203.2 mm Paper Cone
|
| Full-Range Voice Coil |
1" / 25 mm
|
| Magnet |
Ceramic, 10 oz / 283 g
|
| Frequency Response |
55 Hz to 8 kHz
|
| Sensitivity |
97 dB
|
| Coverage Angle |
105° (Conical)
|
| Transformer Insertion Loss |
1.5 dB
|
| Certifications |
UL
|
| Color |
Black
|
| Dimensions |
8.1 x 2.9" / 205 x 73 mm
|
| Package Weight |
2.6 lb
|
| Box Dimensions (LxWxH) |
8.4 x 8.3 x 3.1"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
