ART PDB4- Rackmountable 4-Channel Passive Direct Box
ART PDB4 Overview
The ART PDB4- Rackmountable 4-Channel Passive Direct Box is designed for studio and live performance applications. The 1RU 19" rackmountable passive device features four fully transformer isolated direct boxes with inputs and outputs isolated from one another to maximize channel separation and remove system ground loops. It can be used to connect the 1/4" outputs of electronic music instruments and other audio sources to the balanced XLR inputs of a mixing console or other balanced audio equipment.

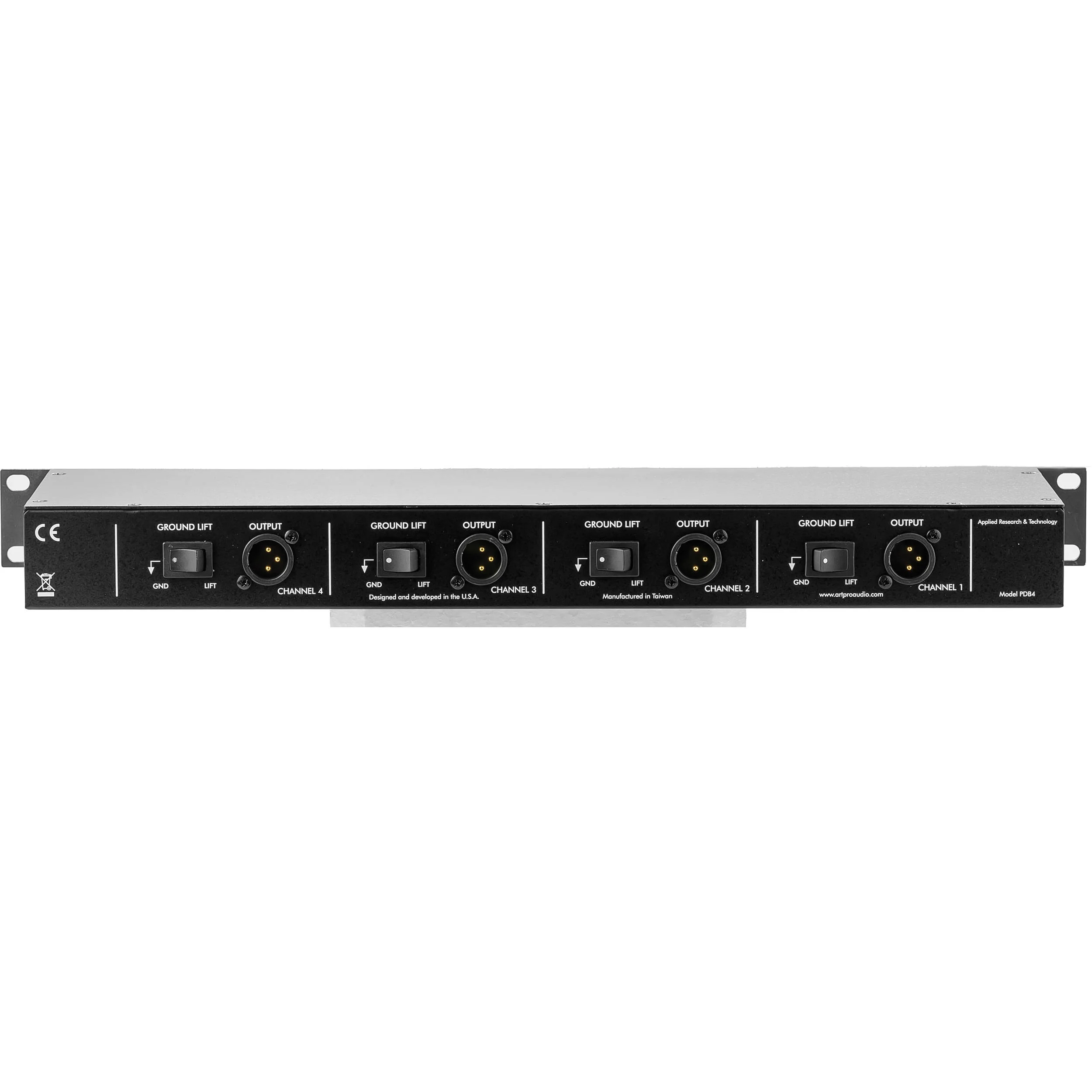

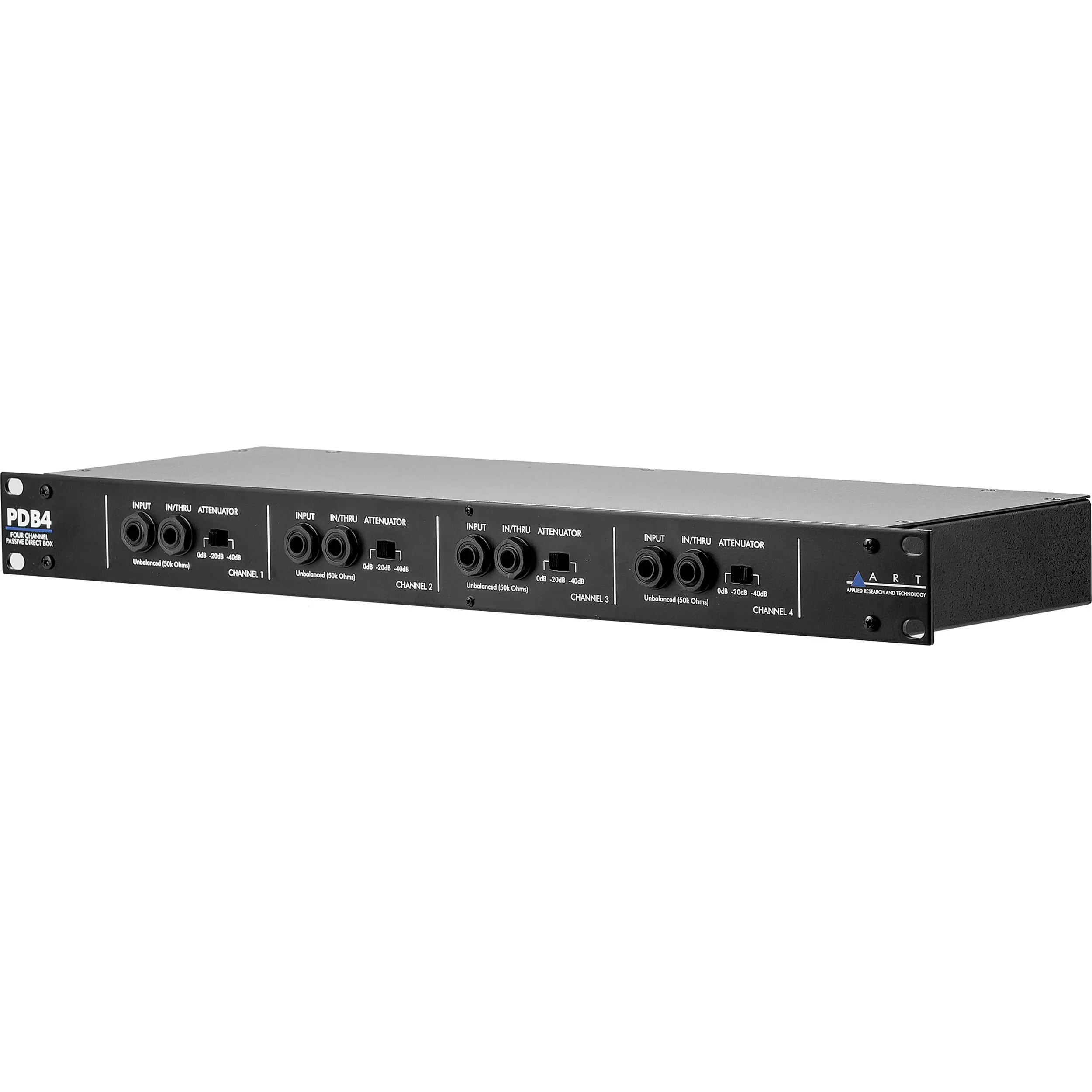

Each channel features a front panel 1/4" input, a 1/4" pass thru, and an input attenuation switch with 0 dB, -20 dB, -40 dB settings and accepts a frequency response of 10 to 50,000 Hz. Each channel features a back panel balanced XLR-3M output for connecting to a mixing console or preamplifier for recording as well as a ground lift switch.
In the Box
- ART PDB4- Rackmountable 4-Channel Passive Direct Box
- Limited 3-Year Manufacturer Warranty
ART PDB4 Specs
| Item Type |
Rackmount DI
|
| Number of Channels |
4-Channel
|
| Active/Passive |
Passive
|
| Circuitry |
Solid-State
|
| Pad |
-20 / -40 dB
|
| Ground Lift |
Yes
|
| Polarity Reverse |
No
|
| Low-Cut/High-Pass Filter |
No
|
| Audio I/O |
4x 1/4" TS Unbalanced Input
4x 1/4" TS Unbalanced Thru 4x XLR 3-Pin Balanced Output |
| Frequency Response |
10 Hz to 50 kHz ±0.5 dB (at +4 dBu)
|
| Input Impedance |
50 Kilohms
|
| Output Impedance |
600 Ohms
|
| Operating Voltage |
No Power Required
|
| Dimensions |
19 x 6 x 1.75" / 483 x 152 x 44.5 mm
|
| Weight |
6.5 lb / 2.95 kg
|
| Package Weight |
5.25 lb
|
| Box Dimensions (LxWxH) |
21.8 x 9.8 x 3.1"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
