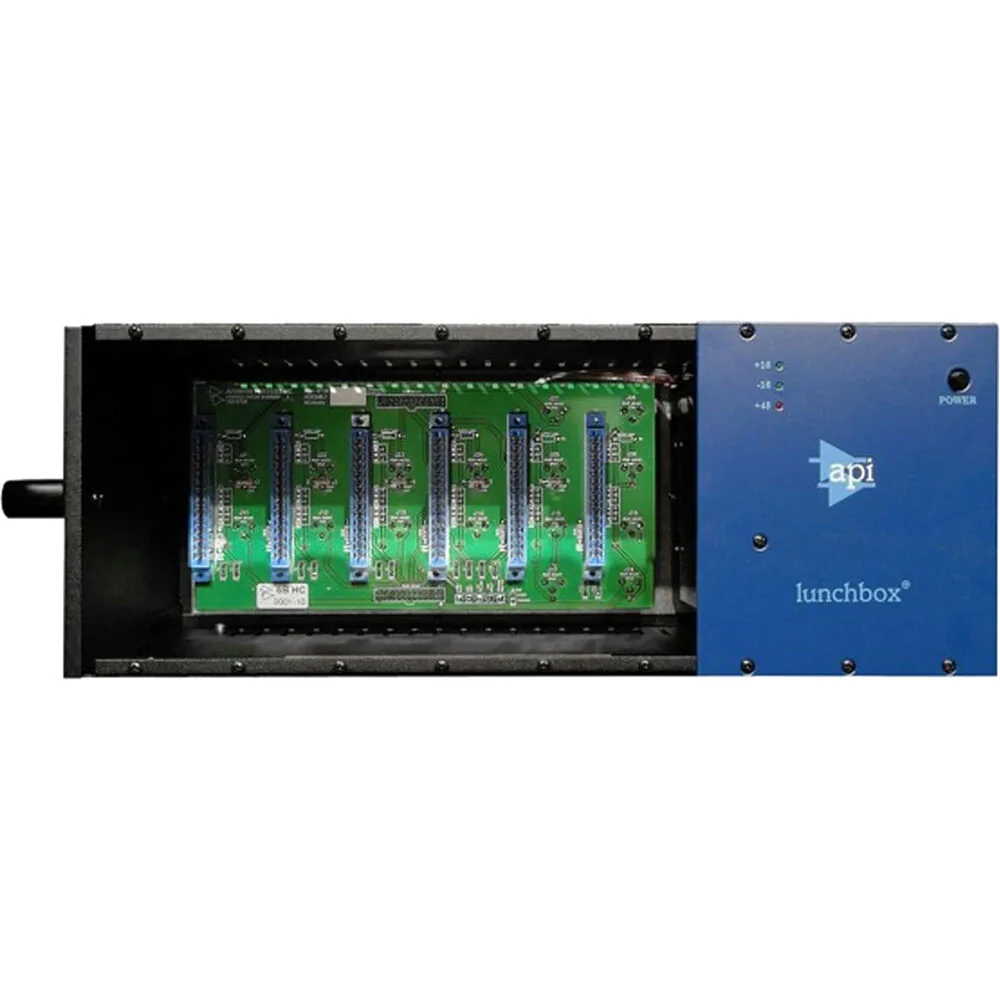

API AUDIO 500-6B Lunchbox 6-Slot 500-Series Rack Chassis
API AUDIO 6-SLOT LUNCHBOX - 6B-HC Overview
Ideal for creating a customizable, portable rack system for numerous audio applications, the API Audio 500-6B is a 6-slot 500-series rack chassis sporting 250mA per slot and an internal universal manually switched power supply. Featuring both standard 3-pin XLR I/O and convenient DB25 connectivity, this lunchbox unit is versatile and compatible with a wide range of pro audio gear.
The XLR connections on channels seven and eight can be used for accessing these channels from the DB25 connectors for pass-through duties. The chassis features internal 48V phantom power for feeding mic pres, and LED indicators on the front for keeping an eye on the power rail activity. This lunchbox is constructed from rugged steel and features rubber feet and a carrying handle, making it easy to carry anywhere, place on any surface, and even use in demanding environments, like outdoor video shoots, while keeping your 500-series modules safe from impact damage.
- Multitrack recording of acoustic and electronic audio sources
- Sound reinforcement systems and recording to multitrack formats
- Multiple facility projects where portability is a plus
- Broadcast and audio for video production
- Custom channel input strips
Items Included
- API AUDIO 500-6B Lunchbox 6-Slot 500-Series Rack Chassis
- Power Cord
- Limited 5-Year Manufacturer Warranty
Additional Resources
API AUDIO 6-SLOT LUNCHBOX - 6B-HC Specs
| Audio I/O |
1x DB-25 Line/Mic Input
8x XLR 3-Pin Line/Mic Input 1x DB-25 Line/Mic Output 8x XLR 3-Pin Line/Mic Output |
| Power Source |
AC Input
|
| AC Input Power |
Changing Voltage Requires Manual Switching
100 to 250 VAC, 50 / 60 Hz |
| Color |
Blue
|
| Material of Construction |
Steel
|
| Package Weight |
12.29 lb
|
| Box Dimensions (LxWxH) |
20 x 12.1 x 10"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
