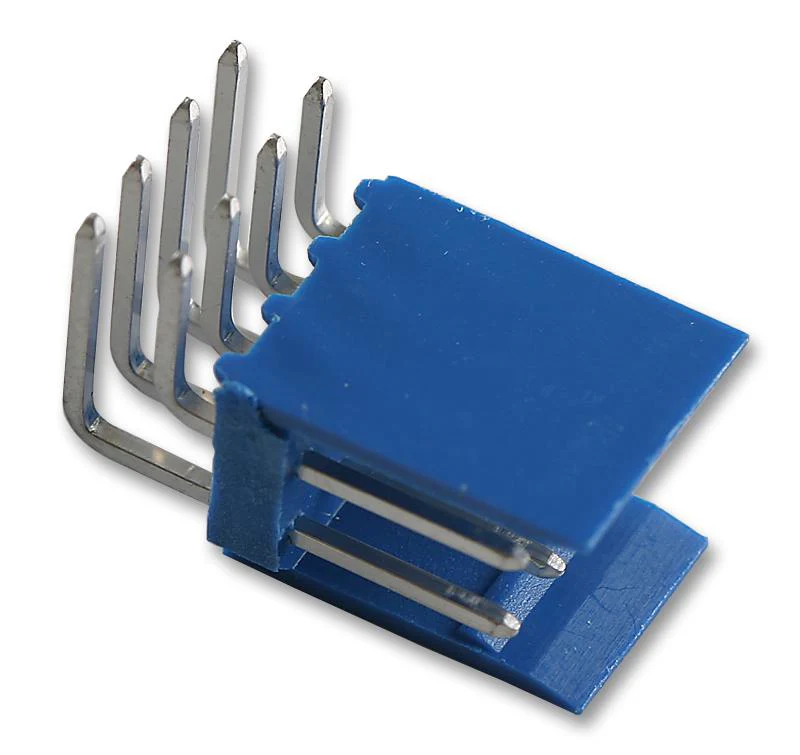

AMP - TE Connectivity 281742-4 281742-4 Pin Header Right Angle Wire-to-Board 2.54 mm 2 Rows 8 Contacts Through Hole

The 281742-4 is a 8-position 2-row right angle shrouded Wire-to-Board Header with tin-plated phosphor bronze pin contacts and blue high temperature thermoplastic 2-sided housing. This plug style connector supports crimp, Insulation Displacement Crimp (IDC) termination method to wire/cable�and polarization mating alignment type. It is applicable to printed circuit board.

• With contact protection
• UL94V-0 Flammability rating

Applications

Industrial

Other details

Brand	AMP - TE CONNECTIVITY
Part Number	281742-4
Quantity	Each
Technical Data Sheet EN
Drawing EN
3D Product Image EN
Product Change Notice EN
