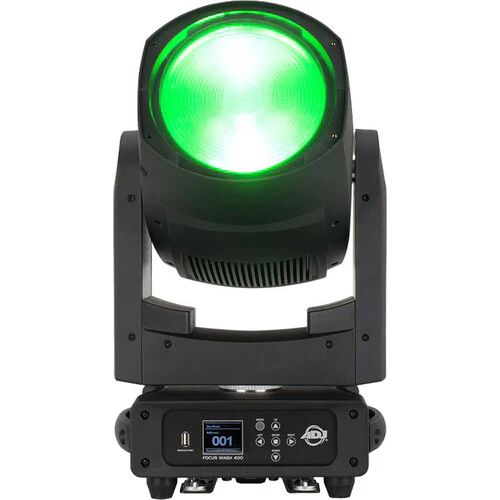

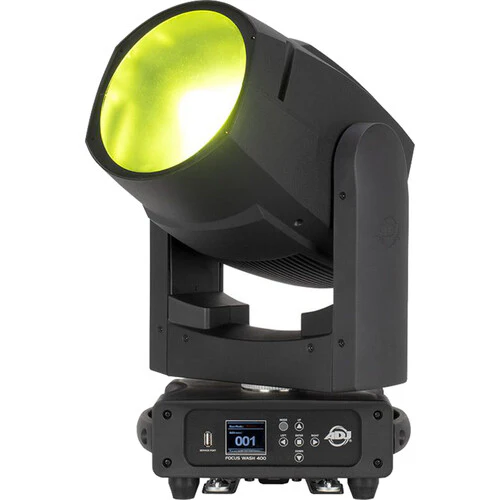

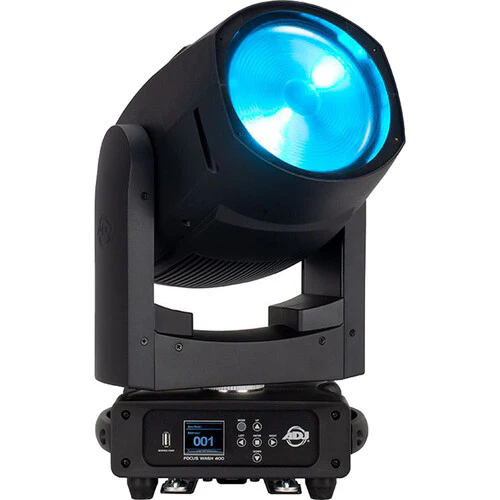

American DJ FOCUS WASH 400 6-in1 LED Moving Head Wash
American DJ Focus Wash 400 Overview
- 1Description
- 2Benefits
- 3Colors
- 4Control
Lighting designers in search of a fixture with creative flexibility for generating vibrant washes should look no further than the American DJ FOCUS WASH 400, a versatile moving head luminaire, well suited for film and TV, event production, and rental houses, as well as permanent installations in concert halls, theaters, nightclubs, and churches.
The FOCUS WASH 400 is powered by a 400W 6-in-1 (red, green, blue, amber, cyan, lime) color-mixing LED with a 6" Fresnel lens with a 10 to 41° motorized zoom that produces an even field of light output. With various DMX mode options appropriate for different applications, the FOCUS WASH 400 offers virtual color wheel control and virtual CMY control. A snoot, 40° linear lens, two Omega brackets, a safety cable, and an IP65 locking power cable.
Benefits
- 400W RGBACL LED
- Electronic strobe/dimmer
- Motorized zoom
- Beam angle: 10 to 41°
- Field angle: 19 to 54°
- RGBACL color mixing
- Virtual CMY color mixing
- 10 to 41° motorized zoom
- Electronic strobe and dimmer
- Color temperature: red to green control via DMX
- Linear color temperature control: 2700 to 10,000K
- Preset color temperatures (2700, 3200, 4000, 5600, and 6500K)
Colors
- Individual RGBACL (red, green, blue, amber, cyan, lime) control
- Virtual color wheel control
- Virtual CMY control
Control
- Five DMX channel modes: Basic (17), Standard (22), Extended (24), CMY Standard (18), or CMY Extended (24)
- Selectable LED refresh rates, 900 Hz to 25 kHz.
- Linear dimming with user-selectable dim curves, dim modes, and dim speeds
- 6-button control panel and LCD menu display
- USB firmware update port
- RDM (remote device management)
- Quiet fan mode
- Locking 3-pin and 5-pin XLR connector in/out
- IP65 locking power connector in/out
- Wired Digital Communication Network
UPC: 818651029130

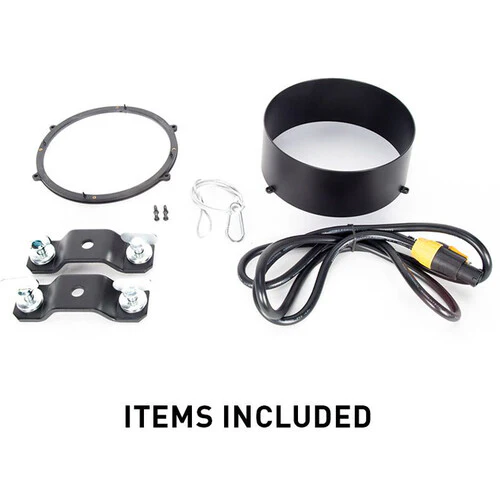

In the Box
- American DJ FOCUS WASH 400 6-in1 LED Moving Head Wash
- Snoot
- 40° Lens

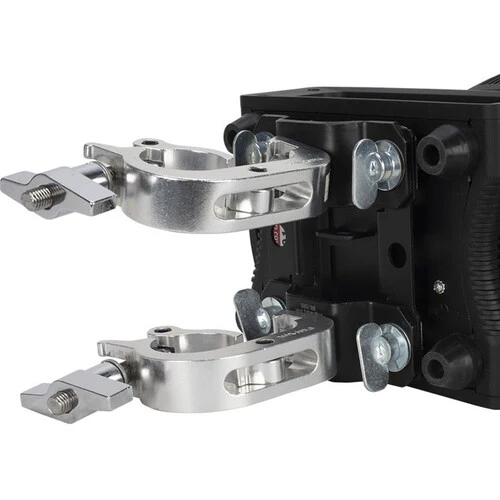

- 2 x Omega Bracket
- Safety Cable
- Power Cord
- Limited 2-Year Manufacturer Warranty
Table of Contents
- Description
- Benefits
- Colors
- Control
American DJ Focus Wash 400 Specs
Key Specs
| Fixture Type |
Moving Head
|
| Light Source |
1 x Color LED - 400 W
|
| Colors |
Red, Green, Blue, Amber, Cyan, Lime
|
| Beam Angle |
10 to 41°
|
| Control Protocols |
DMX512
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| Power / Current Consumption |
120 VAC, 60 Hz: 460 W (Max)
230 VAC, 50 Hz: 430 W (Max) |
| Environmental Protection |
Advertised as Dust Resistant
*Manufacturer Testing: IP20 |
| Mounting |
Omega Bracket
|
Light
| Fixture Type |
Moving Head
|
| Light Source |
1 x Color LED - 400 W
|
| Expected Lamp Life |
50,000 Hours
|
| Colors |
Red, Green, Blue, Amber, Cyan, Lime
|
| Photometrics |
4°:
965 fc / 10,384 Lux at 10' / 3 m |
| Color Temperature |
2700 to 10,000K
|
| Lumen Output |
4600 Lumens
|
| Beam Angle |
10 to 41°
|
| Field Angle |
19 to 54°
|
| Shutter / Strobe |
Mechanical
|
| Zoom Adjustment |
Motorized, 10 to 41°
|
| Dimming |
16-Bit Electronic, 0 to 100% with 6 Dimmer Modes
|
Performance
| Operating Modes |
Automatic, DMX
|
| Macros / Programs |
20 x Auto-Program
64 x Color Macro |
| Effects |
Strobe (Variable Speed)
|
| Gobos |
No
|
| Refresh Rate |
900 Hz to 25,000 Hz (Adjustable)
|
Movement
| Tilt Ranges |
260°
|
| Pan Ranges |
630° / 540°
|
| Pan/Tilt Inversion |
Yes
|
Control
| Control Protocols |
DMX512
|
| DMX Channel Modes |
5 Mode(s):
17 / 22 / 24 / 18 / 24-Channel |
| Display / Controls |
LCD / 6-Button
|
| Remote Control |
No
|
| Mobile App Compatible |
No
*As of November, 2022: Check with manufacturer for the most up-to-date compatibility |
Connectivity

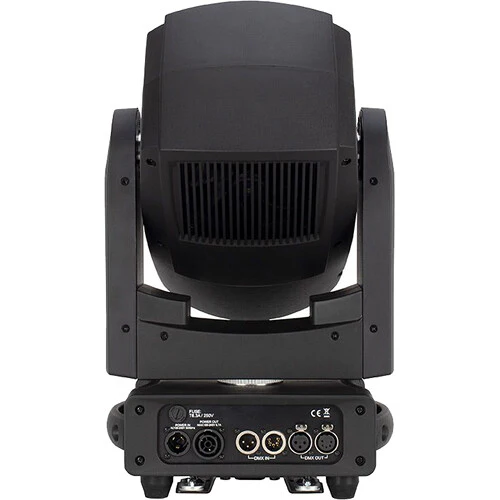

| Inputs/Outputs |
1 x USB-A Service Input
2 x XLR 5-Pin DMX Input/Output 2 x XLR 5-Pin DMX Input/Output |
Power
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| AC Power Connector |
Input: 1 x powerCON
Output: 1 x powerCON |
| Power / Current Consumption |
120 VAC, 60 Hz: 460 W (Max)
230 VAC, 50 Hz: 430 W (Max) |
| Power Linking |
3 Units at 240 VAC
|
Environmental
| Environmental Protection |
Advertised as Dust Resistant
*Manufacturer Testing: IP20 |
Physical
| Mounting |
Omega Bracket
|
| Included Accessories |
1 x Power Cable
|
| Duty Cycle |
No
|
| Exterior Color |
Black
|
| Cooling |
Fan
|
| Certifications |
CE, ETL
|
| Dimensions |
22.37 x 11 x 8.4" / 56.82 x 27.9 x 21.3 cm
|
| Weight |
23.5 lb / 10.7 kg
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
