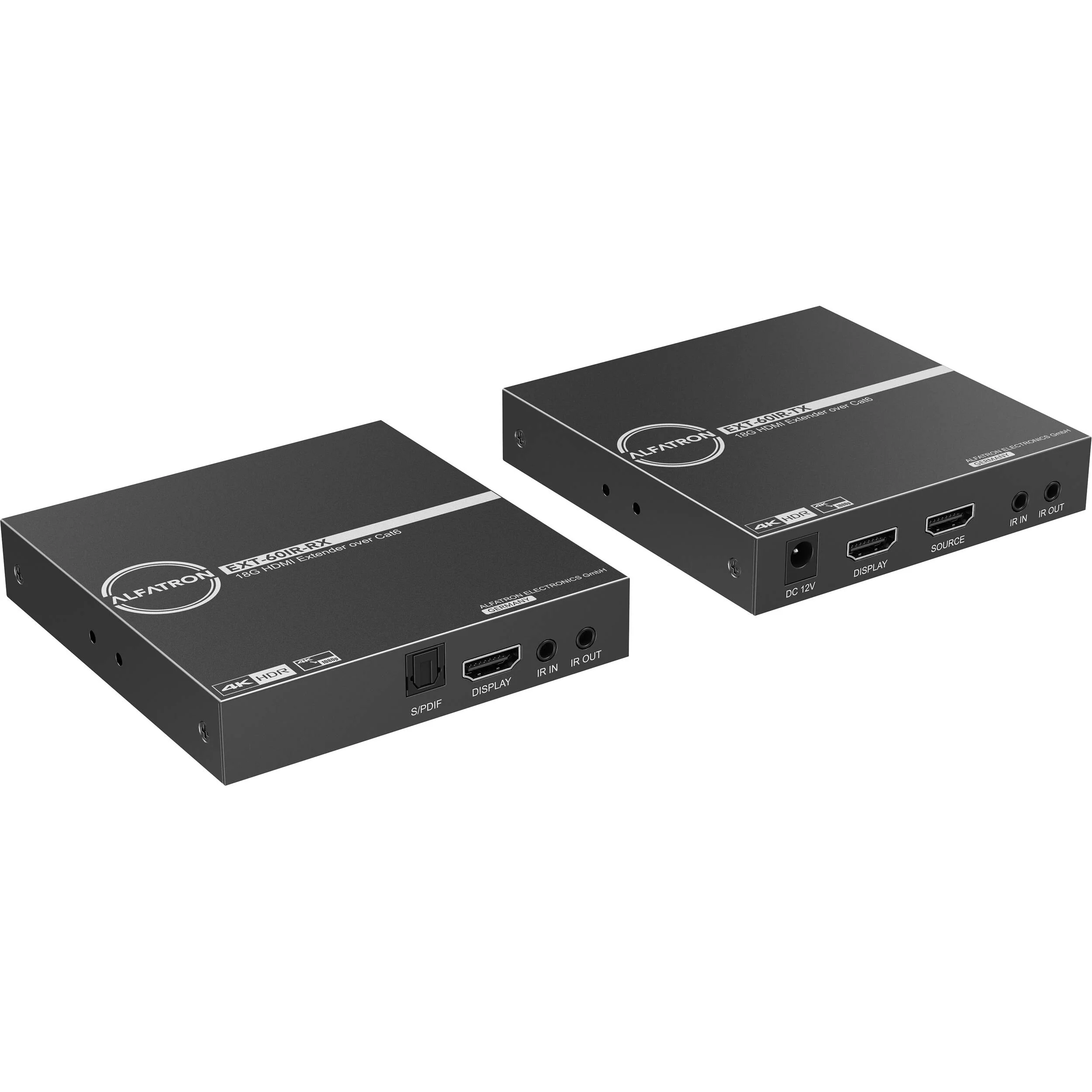

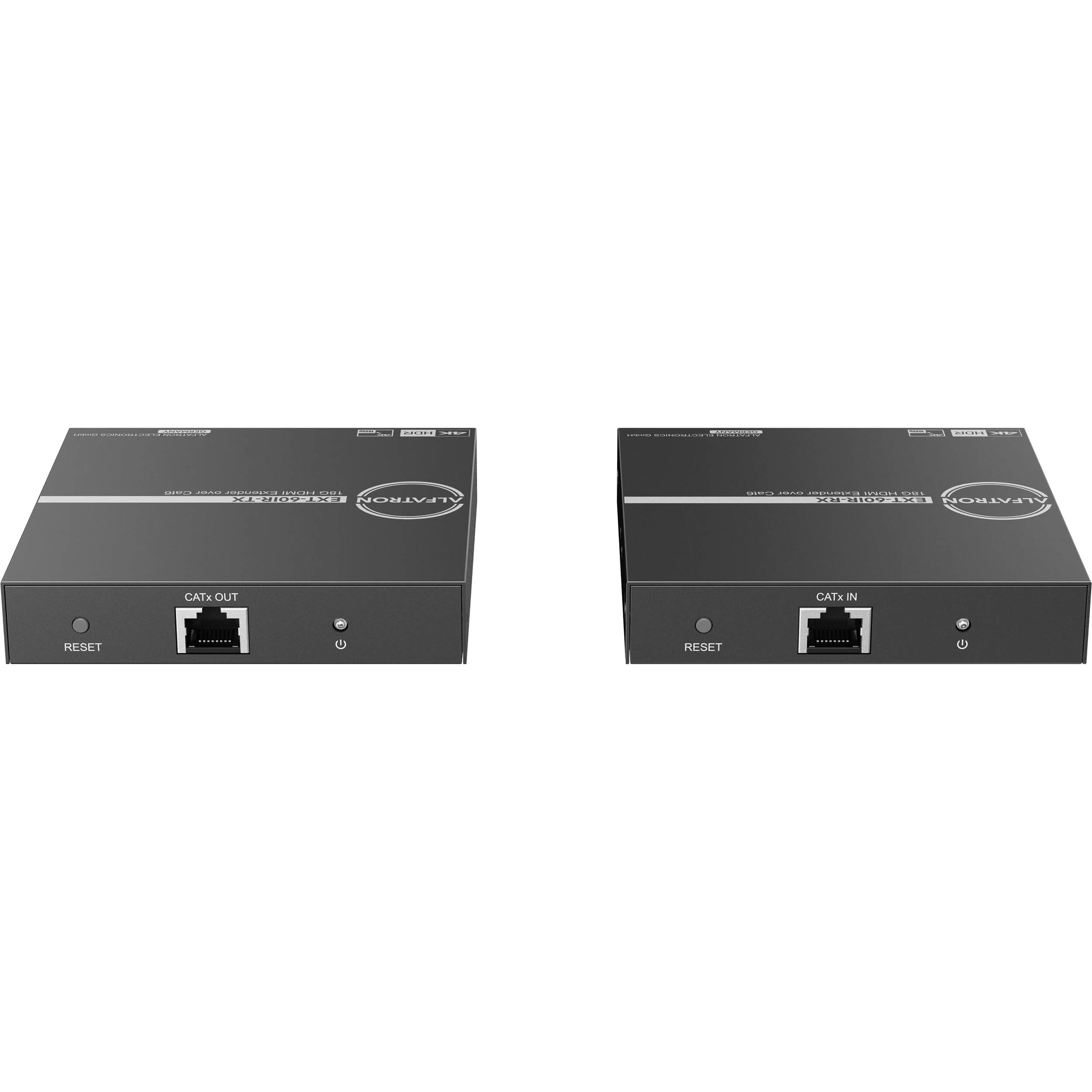

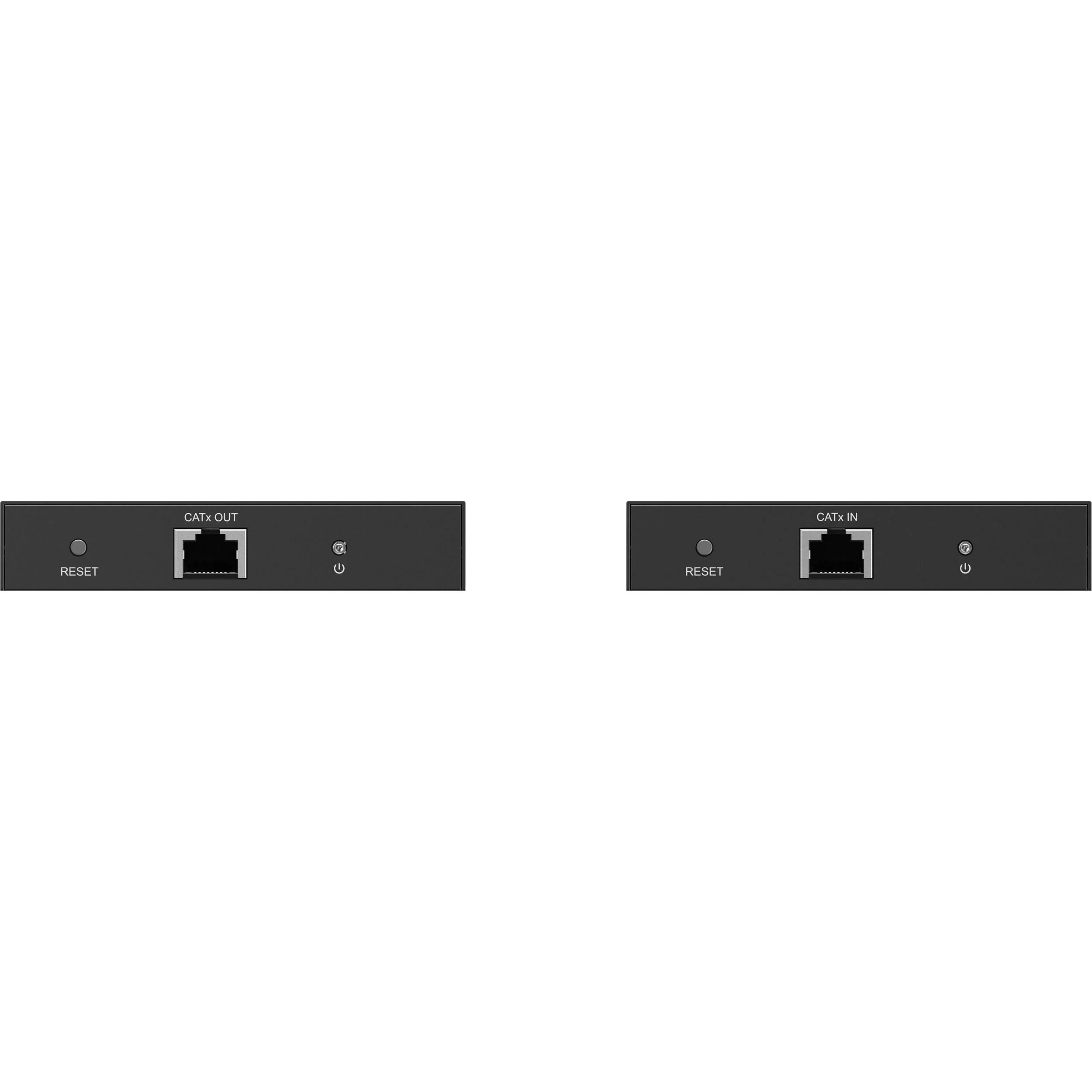

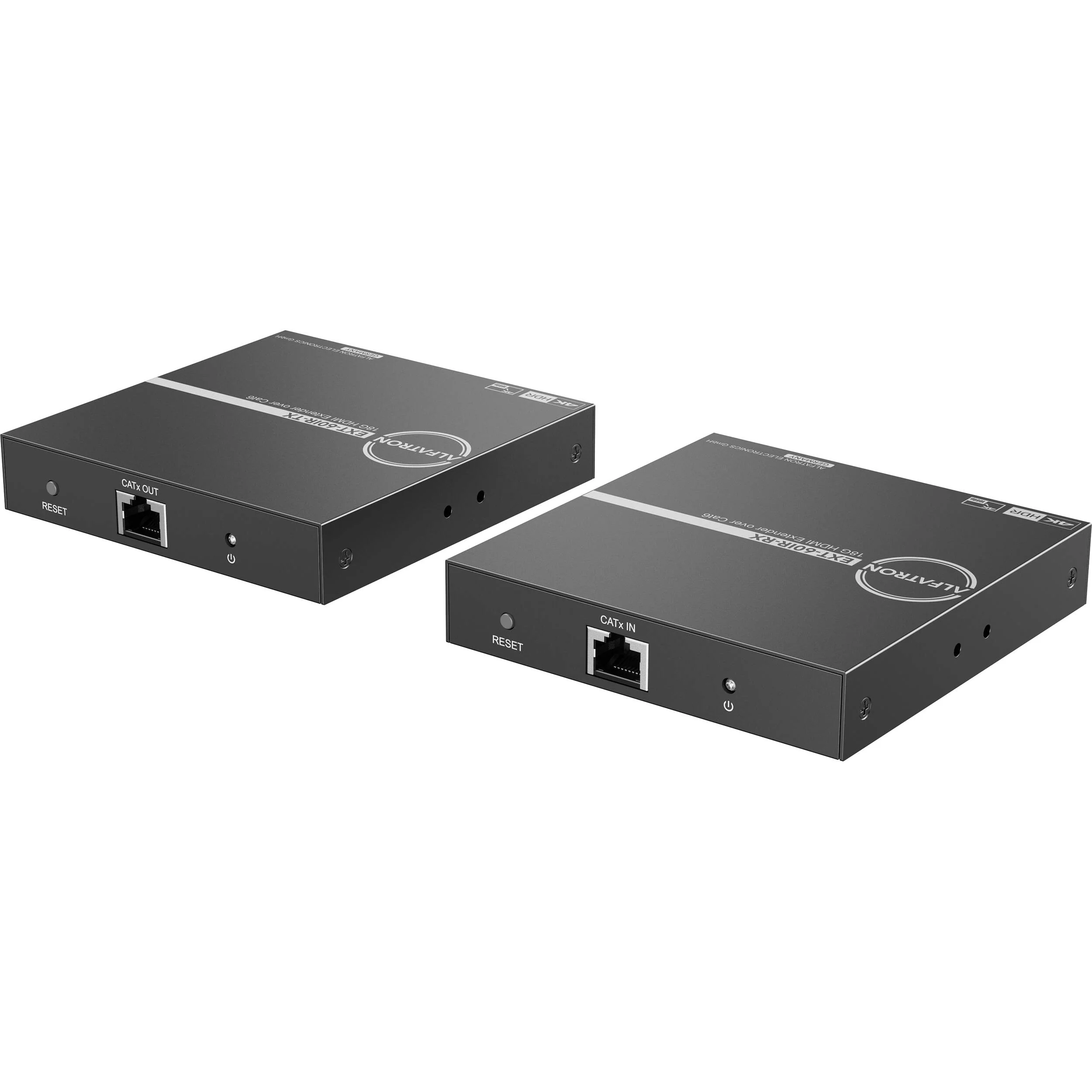

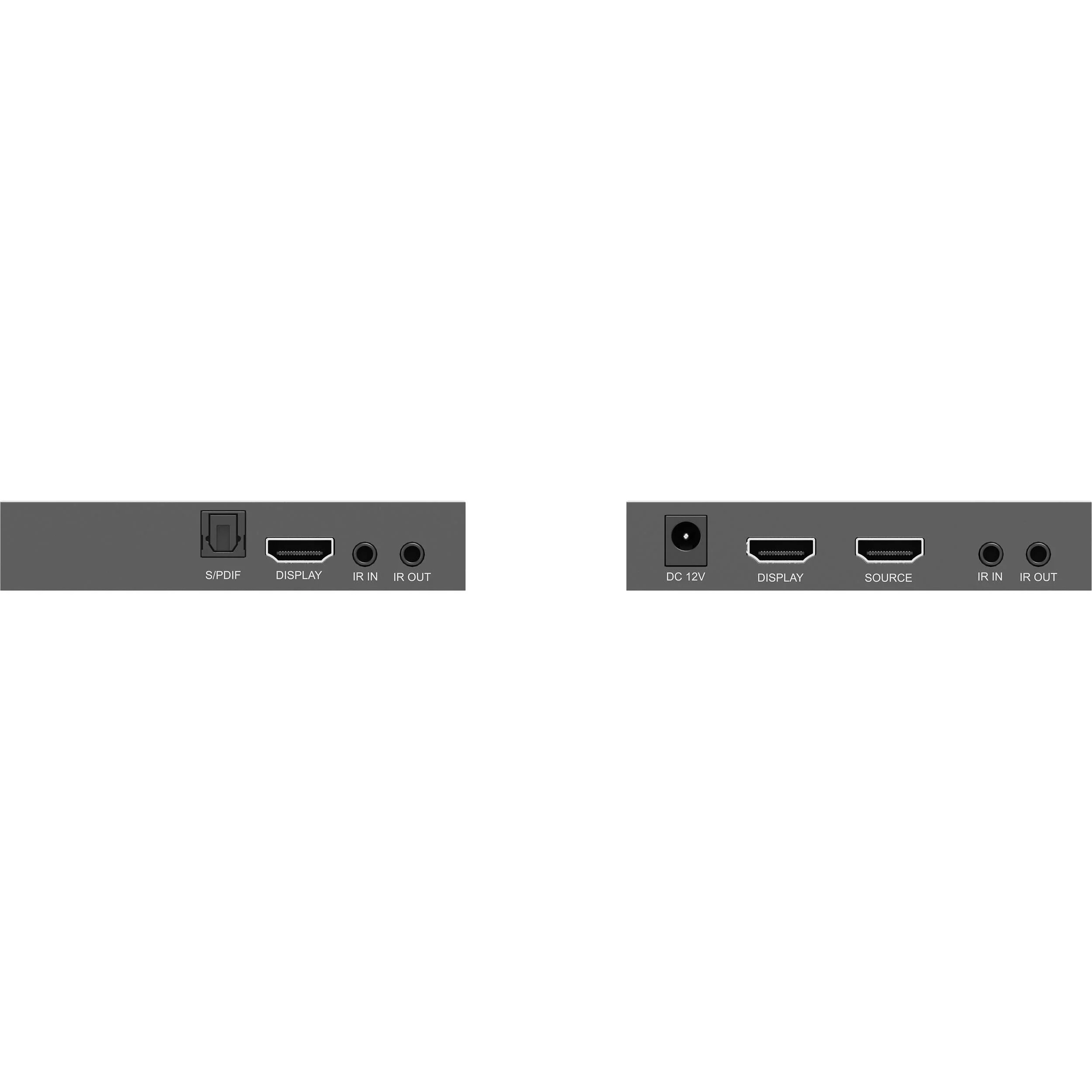

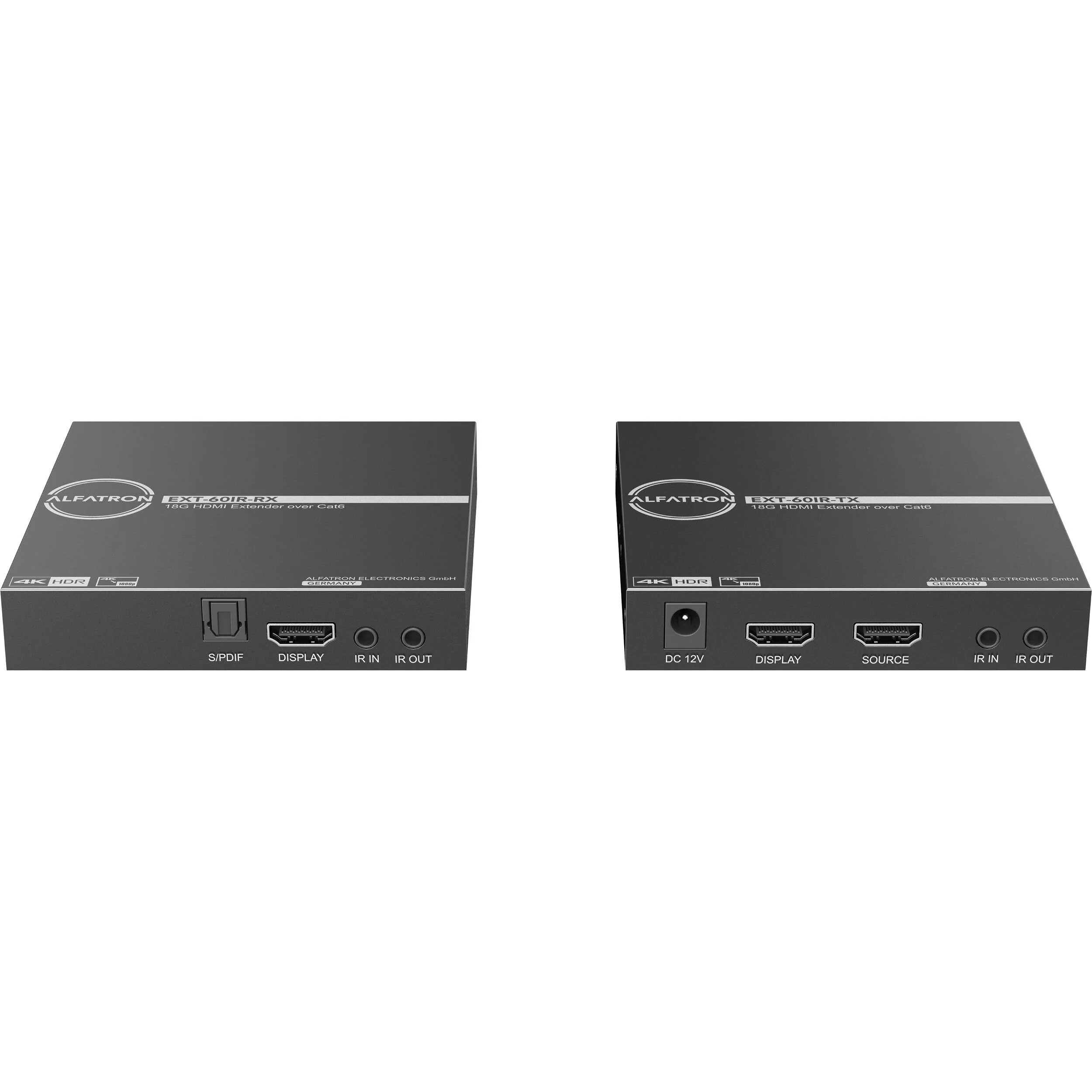

Alfatron 4K 18 Gb/s HDMI over Cat 6 Extender Set
Alfatron EXT60IR18G Overview
The Alfatron 4K 18 Gb/s HDMI over Cat 6 Extender Set is a point-to-point extender set for HDMI 2.0 and IR signals; the set supports 4K / UHD video 60 Hz with 4:4:4 Chroma sampling as well as HDMI data rates up to 18 Gb/s, and is HDCP 2.2 compliant. It provides HDMI transmission up to 230' for 4K60 Hz 4:4: 4 or 1080p, over single CAT6 cable. It supports video resolution downscaling, and the 4K input can be automatically downscaled to 1080p output for compatibility with 1080p display.
In the Box
- Alfatron 4K 18 Gb/s HDMI over Cat 6 Extender Set
Alfatron EXT60IR18G Specs
| Inputs |
1x HDMI (HDMI 2.0)
|
| Outputs |
1x RJ45
1x HDMI (HDMI 2.0) |
| Transmitter Other I/O |
1x 1/8" / 3.5 mm IR Input
1x 1/8" / 3.5 mm IR Output |
| Inputs |
1x RJ45
|
| Outputs |
1x HDMI (HDMI 2.0)
1x TOSLINK (S/PDIF) |
| Receiver Other I/O |
1x 1/8" / 3.5 mm IR Input
1x 1/8" / 3.5 mm IR Output |
| HDR Compatibility |
HDR10
|
| Reclocking |
No
|
| HDCP Support |
Yes, Version 2.2
|
| EDID Support |
Passthrough
|
| Max Transmission Distance |
1080p, UHD 4K:
229.7' / 70 m (via Cat 6) |
| Video Format |
HDMI (4:4:4)
UHD 4K: 60 fps |
| Supported Cable Types |
Cat 6
|
| Latency |
0 ms
|
| Transmitter Power I/O |
1x Barrel (12 VDC at 1 A) Input
|
| PoE Support |
Yes
|
| Transmitter Power Consumption |
Power Supply: 100 to 240 VAC
Device: (4 W) |
| Operating Temperature |
23 to 131°F / -5 to 55°C
|
| Storage Temperature |
-13 to 158°F / -25 to 70°C
|
| Operating Humidity |
10 to 90%
|
| Transmitter Dimensions |
3.1 x 3.1 x 0.7" / 80 x 80 x 16.8 mm
|
| Receiver Dimensions |
3.1 x 3.1 x 0.7" / 80 x 80 x 16.8 mm
|
| Transmitter Weight |
2.5 oz / 70 g
|
| Receiver Weight |
2.5 oz / 70 g
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
