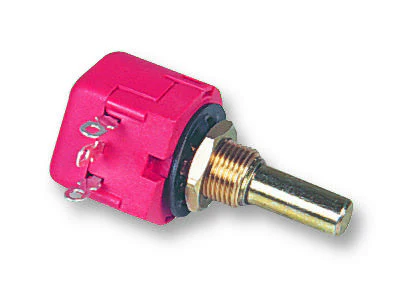

AB ELEKTRONIK ABW1 250R Rotary Potentiometer, Wirewound, 250 ohm, 1 W, ± 10%, ABW1 Series, 1 Turns, Linear
AB ELEKTRONIK ABW1 250R Rotary Potentiometer, Wirewound, 250 ohm, 1 W, ± 10%, ABW1 Series, 1 Turns, Linear
- Resistance range of 5ohm to 22kohm
- ±10%, ±20% tolerance
- Rated power dissipation at 40°Cis 1W
- Limiting element voltage of 300V
- Operating temperature range -40°C to +90°C
- Endurance of 10000 cycles
Applications
Consumer Electronics, Portable Devices, Power Management, Industrial
Product details
| Shaft Length | 25.4mm |
| Shaft Diameter | 6.35mm |
| No. of Gangs | 1 |
| Adjustment Type | Rotary |
| Resistance Tolerance | ± 10% |
| Product Range | ABW1 Series |
| Track Taper | Linear |
| No. of Turns | 1Turns |
| Potentiometer Mounting | Panel |
| Power Rating | 1W |
| Track Resistance | 250ohm |
Other details
| Brand | AB ELEKTRONIK |
| Part Number | ABW1 250R |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
