4ms Spherical Wavetable Navigator Eurorack Module (26 HP)
4ms 4MSPHWVTBLNV Overview
- 1Description
- 2Pitch Controls
- 3LFO/Envelope Controls
- 4Amplitude Controls
- 5Wavetable Controls
- 6Presets
- 7Sphere Recording
- 8Eurorack Ready
Create morphing drones, polyphonic melodies, evolving sequences, and rich textures with the 4ms Spherical Wavetable Navigator, a six-channel Eurorack modular synthesizer voice. The SWN features six wavetable oscillators with independent pitch, level, and waveform controls and six LFOs that can be used as modulation sources and/or envelopes, adding instant dynamic motion to your patch. Each channel is a full voice and can be played using the top row of buttons, the internal LFOs, or note-change detection on the 1V/oct jacks.
Each of the six channels includes a programmed 3-dimensional (sphere) wavetable with 27 waveforms arranged in a 3x3x3 shape, allowing for sophisticated tonal maneuvering for out-of-this-world sounds and atmospheres. There are 12 factory installed spheres and 108 custom user slots for saving your own. You can record into the module in real time or use the free SphereEdit software (Mac/Windows/Linux), which allows you to create, edit, and convert WAV files into spherical wavetables. The Spherical Wavetable Navigator ships with a ribbon power cable and mounting screws.
Pitch Controls
All pitch features can be controlled globally or per-channel.
- Octave: shifts pitch of channel(s) up or down by octaves
- Transpose: shifts pitch of channel(s) up or down by semitones
- Fine+Transpose: shifts pitch of channel(s) up or down by microtonal amounts
- Scale: selects quantization: major, minor, semitones, or no quantization
- Spread: creates chords by spreading channel pitches apart
- Fine+Spread: detunes each channel a different amount for phasing effects
- 1V/oct jacks: pitch control jack for each channel
- Transpose jack: global 1V/oct pitch
- Spread CV jack: global chord selection
LFO/Envelope Controls
All LFO features can be controlled globally or per channel.
- LFO Output jacks: Each channel has a dedicated LFO/envelope output jack
- LFO Speed: Rate/tempo of each LFO. Divides/Multiplies main clock by integer amounts unless Fine button is pressed. In audio range, adjusts by semitones
- LFO Shape: Selects from 25 LFO waveshapes (ramps, saw, sine, complex shapes, etc)
- LFO Gain: Control amplitude of LFO on LFO output jacks. Useful for self-patching LFOs to other SWN jacks
- LFO Phase: Adjusts when each LFO fires relative to the down beat. Example: 60 degrees of phase shift per channel creates a 6-step sequence
- LFO Type button: Toggles between trigger, gate, and waveshape
- LFO CV jack: Adjust LFO Speed
- Ext Clock jack: Sync to external equipment
Amplitude Controls
- Sliders: each channel has a dedicated level (volume) slider
- Mute button: each channel has a mute/unmute button
- Key button: in Keyboard or Note mode, mute button will fire the channel's envelope to play a note
- VCA input jacks: switch re-purposes 1V/oct jacks to control level of each channel with CV
- LFO->VCA button: Internally uses each channel's LFO to control its level to create sequences and/or dynamic motion. (global or per-channel)
Wavetable Controls
All wavetable features can be controlled globally or per-channel.
- Browse: Morphs between all waveforms in the Spherical Wavetable (Sphere) by navigating in zigzag (snake) pattern
- Depth: Morphs between waveforms in the Sphere by navigating only in the Depth dimension
- Latitude: Morphs between waveforms in the Sphere by navigating in the Latitude dimension
- Longitude: Morphs between waveforms in the Sphere by navigating in the Longitude dimension
- Sphere: Selects a Spherical Wavetable from the 12 factory spheres and up to 108 user-created custom spheres
- Dispersion: Pushes each channel to a different position within the Sphere
- Dispersion Pattern: Selects the pattern that channels are dispersed
- WT Spread: Pushes each channel into a different Sphere
Presets
All settings (except level sliders and 1V/oct / VCA switch) can be saved for later use.
- Save Preset: Save the state of the SWN so you can come back to it later.
- Load Preset: Select one of 108 user preset slots to load.
- Clear Preset: Delete a preset that you previously saved.
- Undo Preset: Undo your last preset action (example: accidentally cleared the wrong preset, or saved over a preset). Can be used to A/B between a preset the current sound.
Sphere Recording
Special mode to record your own Spherical Wavetables where some controls have a new purpose
- Waveform In jack: Input an audio signal here (gain is automatically adjusted, even for line level signals)
- Record: Start recording from Waveform In jack (2.5 second buffer)
- Monitor: Monitor the audio signal by sending it to the output jacks
- Test-tone: Produce a test tone for tuning your audio source (optional)
- Wavefolding FX: Wavefolds the waveform(s)
- Bit Decimation FX: Adds bit decimation to waveform(s)
- Metalizer FX: Adds a metalizer effect to waveform(s)
- Low-pass filter FX: Low-pass filters the waveform(s)
- Gain/normalization FX: Controls normalization or attenuation of waveform(s)
- Seam smoothing FX: Smooths the seam of recorded waveform(s)
- Waveform Shift: Scrubs through recorded audio to select which waveforms will be saved into the Sphere
- Waveform Spread: Adjusts the pattern of waveform selection from the recorded audio
- Waveform Stretch: Stretches waveforms, which shifts pitch up and down by octaves
- LFO sync pulses and ramps: when recording, LFO jacks output timed pulses and ramps useful for synchronizing the audio source (example: playing a different sample for each waveform recorded)
- Save Sphere: When done, save your sphere in one of 108 slots for user-created custom spheres
Eurorack Ready
- Module size: 26 HP Eurorack format module
- Maximum depth: 0.98" (25mm) with power cable
- Power consumption:
- +12V: 185mA with LED PWR jumper set to 12V; 107mA with LED PWR jumper set to 5V
- -12V: -30mA
- +5V: not used with LED PWR jumper set to 12V; 60mA with LED PWR jumper set to 5V
In the Box
- 4ms Spherical Wavetable Navigator Eurorack Module (26 HP)
- Eurorack Ribbon Power Cable
- Set of Mounting Screws
- Limited 1-Year Manufacturer Warranty
Not in the Box
- Essential Eurorack Cases (Not Included)
Table of Contents
- Description
- Pitch Controls
- LFO/Envelope Controls
- Amplitude Controls
- Wavetable Controls
- Presets
- Sphere Recording
- Eurorack Ready
4ms 4MSPHWVTBLNV Specs
Key Specs
| Sound Generation |
Digital
|
| Number of Sounds, Kits, or Samples |
12x Factory Sound Preset
108x User Sound Preset |
| Maximum Polyphony |
6 Voice
|
| Audio I/O |
2x 1/8" / 3.5 mm TS Unbalanced Mono Instrument Output
1x 1/8" / 3.5 mm TS Unbalanced Mono Line/Instrument Input |
| MIDI I/O |
No
|
| CV/Gate I/O |
17x 1/8" / 3.5 mm TS CV Input
6x 1/8" / 3.5 mm TS CV Output |
| Patch Points |
8x 1/8" / 3.5 mm Output
17x 1/8" / 3.5 mm Input |
| Eurorack Current Consumption |
185 mA on +12 V Rail
30 mA on -12 V Rail 60 mA on +5 V Rail |
| Horizontal Pitch |
26 HP
|
General
| Item Type |
Eurorack Module
|
| Sound Generation |
Digital
|
| Keyboard |
No
|
| Expression Controls |
No
|
| Number of Pads |
No
|
| Display |
No
|
Sounds
| Number of Sounds, Kits, or Samples |
12x Factory Sound Preset
108x User Sound Preset |
| Maximum Polyphony |
6 Voice
|
| Built-In Effects |
Yes
|
| Built-In Speaker |
Yes
|
Synthesis
| Oscillators |
6x Variable (Wavetable)
|
| Mixer |
No
|
| Envelopes |
6x Assignable Envelope Generator: Attack, Release
|
| Filters |
No
|
| LFOs |
Number of LFOs: 6x Global
Waveforms: Sine, Sawtooth, Reverse Sawtooth, Sawtooth Up, Sawtooth Down, Square, Triangle, Random, Low Random, Slew Random LFO Rate: 0 to 3000 Hz |
Sequencing & Recording
| Sequencer |
No
|
| Arpeggiator |
No
|
| Audio Recording Formats |
WAV: 44.1 kHz / 16-Bit
|
Connectivity
| Audio I/O |
2x 1/8" / 3.5 mm TS Unbalanced Mono Instrument Output
1x 1/8" / 3.5 mm TS Unbalanced Mono Line/Instrument Input |
| Pedal Support |
No
|
| MIDI I/O |
No
|
| CV/Gate I/O |
17x 1/8" / 3.5 mm TS CV Input
6x 1/8" / 3.5 mm TS CV Output |
| Control Voltage Level |
LFO CV Out: 0 to +10 V
CV In: 0 to +5 V Trigger/Clock : +1.5 V |
| Patch Points |
8x 1/8" / 3.5 mm Output
17x 1/8" / 3.5 mm Input |
| Sync I/O |
1x 1/8" / 3.5 mm Clock Input
|
| Network I/O |
No
|
| USB I/O |
No
|
| Media/Memory Card Slot |
No
|
Audio Performance
| Maximum Output Level |
19 V p-p
|
| Included Software |
No
|
| Mobile App Compatible |
No
|
Power
| Power Requirements |
Eurorack Power
|
| Eurorack Current Consumption |
185 mA on +12 V Rail
30 mA on -12 V Rail 60 mA on +5 V Rail |
Physical
| Color |
Black
|
| Horizontal Pitch |
26 HP
|
| Included Accessories |
No
|
Packaging Info
| Package Weight |
0.835 lb
|
| Box Dimensions (LxWxH) |
7.2 x 6.8 x 2.2"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
$306.53
Original: $1,021.77
-70%4ms Spherical Wavetable Navigator Eurorack Module (26 HP)—
$1,021.77
$306.53More Images
4ms Spherical Wavetable Navigator Eurorack Module (26 HP)
4ms 4MSPHWVTBLNV Overview
- 1Description
- 2Pitch Controls
- 3LFO/Envelope Controls
- 4Amplitude Controls
- 5Wavetable Controls
- 6Presets
- 7Sphere Recording
- 8Eurorack Ready
Create morphing drones, polyphonic melodies, evolving sequences, and rich textures with the 4ms Spherical Wavetable Navigator, a six-channel Eurorack modular synthesizer voice. The SWN features six wavetable oscillators with independent pitch, level, and waveform controls and six LFOs that can be used as modulation sources and/or envelopes, adding instant dynamic motion to your patch. Each channel is a full voice and can be played using the top row of buttons, the internal LFOs, or note-change detection on the 1V/oct jacks.
Each of the six channels includes a programmed 3-dimensional (sphere) wavetable with 27 waveforms arranged in a 3x3x3 shape, allowing for sophisticated tonal maneuvering for out-of-this-world sounds and atmospheres. There are 12 factory installed spheres and 108 custom user slots for saving your own. You can record into the module in real time or use the free SphereEdit software (Mac/Windows/Linux), which allows you to create, edit, and convert WAV files into spherical wavetables. The Spherical Wavetable Navigator ships with a ribbon power cable and mounting screws.
Pitch Controls
All pitch features can be controlled globally or per-channel.
- Octave: shifts pitch of channel(s) up or down by octaves
- Transpose: shifts pitch of channel(s) up or down by semitones
- Fine+Transpose: shifts pitch of channel(s) up or down by microtonal amounts
- Scale: selects quantization: major, minor, semitones, or no quantization
- Spread: creates chords by spreading channel pitches apart
- Fine+Spread: detunes each channel a different amount for phasing effects
- 1V/oct jacks: pitch control jack for each channel
- Transpose jack: global 1V/oct pitch
- Spread CV jack: global chord selection
LFO/Envelope Controls
All LFO features can be controlled globally or per channel.
- LFO Output jacks: Each channel has a dedicated LFO/envelope output jack
- LFO Speed: Rate/tempo of each LFO. Divides/Multiplies main clock by integer amounts unless Fine button is pressed. In audio range, adjusts by semitones
- LFO Shape: Selects from 25 LFO waveshapes (ramps, saw, sine, complex shapes, etc)
- LFO Gain: Control amplitude of LFO on LFO output jacks. Useful for self-patching LFOs to other SWN jacks
- LFO Phase: Adjusts when each LFO fires relative to the down beat. Example: 60 degrees of phase shift per channel creates a 6-step sequence
- LFO Type button: Toggles between trigger, gate, and waveshape
- LFO CV jack: Adjust LFO Speed
- Ext Clock jack: Sync to external equipment
Amplitude Controls
- Sliders: each channel has a dedicated level (volume) slider
- Mute button: each channel has a mute/unmute button
- Key button: in Keyboard or Note mode, mute button will fire the channel's envelope to play a note
- VCA input jacks: switch re-purposes 1V/oct jacks to control level of each channel with CV
- LFO->VCA button: Internally uses each channel's LFO to control its level to create sequences and/or dynamic motion. (global or per-channel)
Wavetable Controls
All wavetable features can be controlled globally or per-channel.
- Browse: Morphs between all waveforms in the Spherical Wavetable (Sphere) by navigating in zigzag (snake) pattern
- Depth: Morphs between waveforms in the Sphere by navigating only in the Depth dimension
- Latitude: Morphs between waveforms in the Sphere by navigating in the Latitude dimension
- Longitude: Morphs between waveforms in the Sphere by navigating in the Longitude dimension
- Sphere: Selects a Spherical Wavetable from the 12 factory spheres and up to 108 user-created custom spheres
- Dispersion: Pushes each channel to a different position within the Sphere
- Dispersion Pattern: Selects the pattern that channels are dispersed
- WT Spread: Pushes each channel into a different Sphere
Presets
All settings (except level sliders and 1V/oct / VCA switch) can be saved for later use.
- Save Preset: Save the state of the SWN so you can come back to it later.
- Load Preset: Select one of 108 user preset slots to load.
- Clear Preset: Delete a preset that you previously saved.
- Undo Preset: Undo your last preset action (example: accidentally cleared the wrong preset, or saved over a preset). Can be used to A/B between a preset the current sound.
Sphere Recording
Special mode to record your own Spherical Wavetables where some controls have a new purpose
- Waveform In jack: Input an audio signal here (gain is automatically adjusted, even for line level signals)
- Record: Start recording from Waveform In jack (2.5 second buffer)
- Monitor: Monitor the audio signal by sending it to the output jacks
- Test-tone: Produce a test tone for tuning your audio source (optional)
- Wavefolding FX: Wavefolds the waveform(s)
- Bit Decimation FX: Adds bit decimation to waveform(s)
- Metalizer FX: Adds a metalizer effect to waveform(s)
- Low-pass filter FX: Low-pass filters the waveform(s)
- Gain/normalization FX: Controls normalization or attenuation of waveform(s)
- Seam smoothing FX: Smooths the seam of recorded waveform(s)
- Waveform Shift: Scrubs through recorded audio to select which waveforms will be saved into the Sphere
- Waveform Spread: Adjusts the pattern of waveform selection from the recorded audio
- Waveform Stretch: Stretches waveforms, which shifts pitch up and down by octaves
- LFO sync pulses and ramps: when recording, LFO jacks output timed pulses and ramps useful for synchronizing the audio source (example: playing a different sample for each waveform recorded)
- Save Sphere: When done, save your sphere in one of 108 slots for user-created custom spheres
Eurorack Ready
- Module size: 26 HP Eurorack format module
- Maximum depth: 0.98" (25mm) with power cable
- Power consumption:
- +12V: 185mA with LED PWR jumper set to 12V; 107mA with LED PWR jumper set to 5V
- -12V: -30mA
- +5V: not used with LED PWR jumper set to 12V; 60mA with LED PWR jumper set to 5V
In the Box
- 4ms Spherical Wavetable Navigator Eurorack Module (26 HP)
- Eurorack Ribbon Power Cable
- Set of Mounting Screws
- Limited 1-Year Manufacturer Warranty
Not in the Box
- Essential Eurorack Cases (Not Included)
Table of Contents
- Description
- Pitch Controls
- LFO/Envelope Controls
- Amplitude Controls
- Wavetable Controls
- Presets
- Sphere Recording
- Eurorack Ready
4ms 4MSPHWVTBLNV Specs
Key Specs
| Sound Generation |
Digital
|
| Number of Sounds, Kits, or Samples |
12x Factory Sound Preset
108x User Sound Preset |
| Maximum Polyphony |
6 Voice
|
| Audio I/O |
2x 1/8" / 3.5 mm TS Unbalanced Mono Instrument Output
1x 1/8" / 3.5 mm TS Unbalanced Mono Line/Instrument Input |
| MIDI I/O |
No
|
| CV/Gate I/O |
17x 1/8" / 3.5 mm TS CV Input
6x 1/8" / 3.5 mm TS CV Output |
| Patch Points |
8x 1/8" / 3.5 mm Output
17x 1/8" / 3.5 mm Input |
| Eurorack Current Consumption |
185 mA on +12 V Rail
30 mA on -12 V Rail 60 mA on +5 V Rail |
| Horizontal Pitch |
26 HP
|
General
| Item Type |
Eurorack Module
|
| Sound Generation |
Digital
|
| Keyboard |
No
|
| Expression Controls |
No
|
| Number of Pads |
No
|
| Display |
No
|
Sounds
| Number of Sounds, Kits, or Samples |
12x Factory Sound Preset
108x User Sound Preset |
| Maximum Polyphony |
6 Voice
|
| Built-In Effects |
Yes
|
| Built-In Speaker |
Yes
|
Synthesis
| Oscillators |
6x Variable (Wavetable)
|
| Mixer |
No
|
| Envelopes |
6x Assignable Envelope Generator: Attack, Release
|
| Filters |
No
|
| LFOs |
Number of LFOs: 6x Global
Waveforms: Sine, Sawtooth, Reverse Sawtooth, Sawtooth Up, Sawtooth Down, Square, Triangle, Random, Low Random, Slew Random LFO Rate: 0 to 3000 Hz |
Sequencing & Recording
| Sequencer |
No
|
| Arpeggiator |
No
|
| Audio Recording Formats |
WAV: 44.1 kHz / 16-Bit
|
Connectivity
| Audio I/O |
2x 1/8" / 3.5 mm TS Unbalanced Mono Instrument Output
1x 1/8" / 3.5 mm TS Unbalanced Mono Line/Instrument Input |
| Pedal Support |
No
|
| MIDI I/O |
No
|
| CV/Gate I/O |
17x 1/8" / 3.5 mm TS CV Input
6x 1/8" / 3.5 mm TS CV Output |
| Control Voltage Level |
LFO CV Out: 0 to +10 V
CV In: 0 to +5 V Trigger/Clock : +1.5 V |
| Patch Points |
8x 1/8" / 3.5 mm Output
17x 1/8" / 3.5 mm Input |
| Sync I/O |
1x 1/8" / 3.5 mm Clock Input
|
| Network I/O |
No
|
| USB I/O |
No
|
| Media/Memory Card Slot |
No
|
Audio Performance
| Maximum Output Level |
19 V p-p
|
| Included Software |
No
|
| Mobile App Compatible |
No
|
Power
| Power Requirements |
Eurorack Power
|
| Eurorack Current Consumption |
185 mA on +12 V Rail
30 mA on -12 V Rail 60 mA on +5 V Rail |
Physical
| Color |
Black
|
| Horizontal Pitch |
26 HP
|
| Included Accessories |
No
|
Packaging Info
| Package Weight |
0.835 lb
|
| Box Dimensions (LxWxH) |
7.2 x 6.8 x 2.2"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
4ms 4MSPHWVTBLNV Overview
- 1Description
- 2Pitch Controls
- 3LFO/Envelope Controls
- 4Amplitude Controls
- 5Wavetable Controls
- 6Presets
- 7Sphere Recording
- 8Eurorack Ready
Create morphing drones, polyphonic melodies, evolving sequences, and rich textures with the 4ms Spherical Wavetable Navigator, a six-channel Eurorack modular synthesizer voice. The SWN features six wavetable oscillators with independent pitch, level, and waveform controls and six LFOs that can be used as modulation sources and/or envelopes, adding instant dynamic motion to your patch. Each channel is a full voice and can be played using the top row of buttons, the internal LFOs, or note-change detection on the 1V/oct jacks.
Each of the six channels includes a programmed 3-dimensional (sphere) wavetable with 27 waveforms arranged in a 3x3x3 shape, allowing for sophisticated tonal maneuvering for out-of-this-world sounds and atmospheres. There are 12 factory installed spheres and 108 custom user slots for saving your own. You can record into the module in real time or use the free SphereEdit software (Mac/Windows/Linux), which allows you to create, edit, and convert WAV files into spherical wavetables. The Spherical Wavetable Navigator ships with a ribbon power cable and mounting screws.

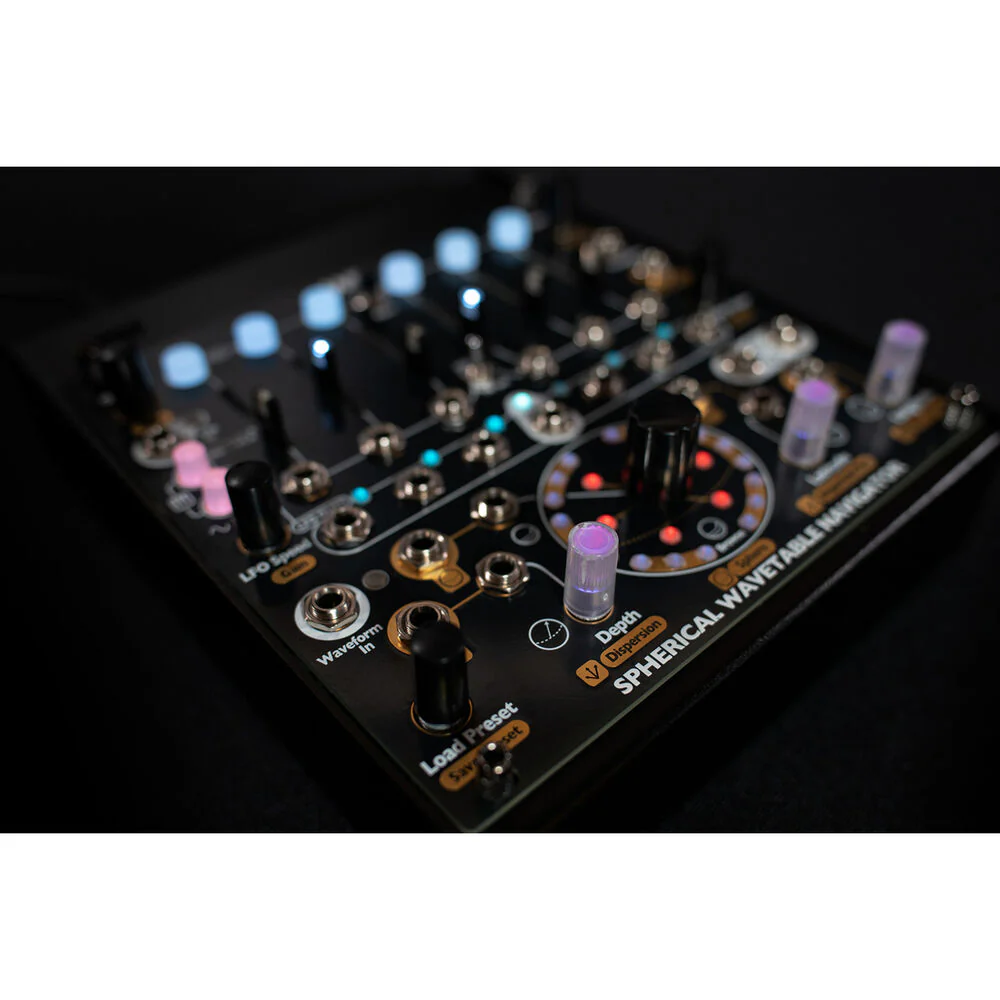

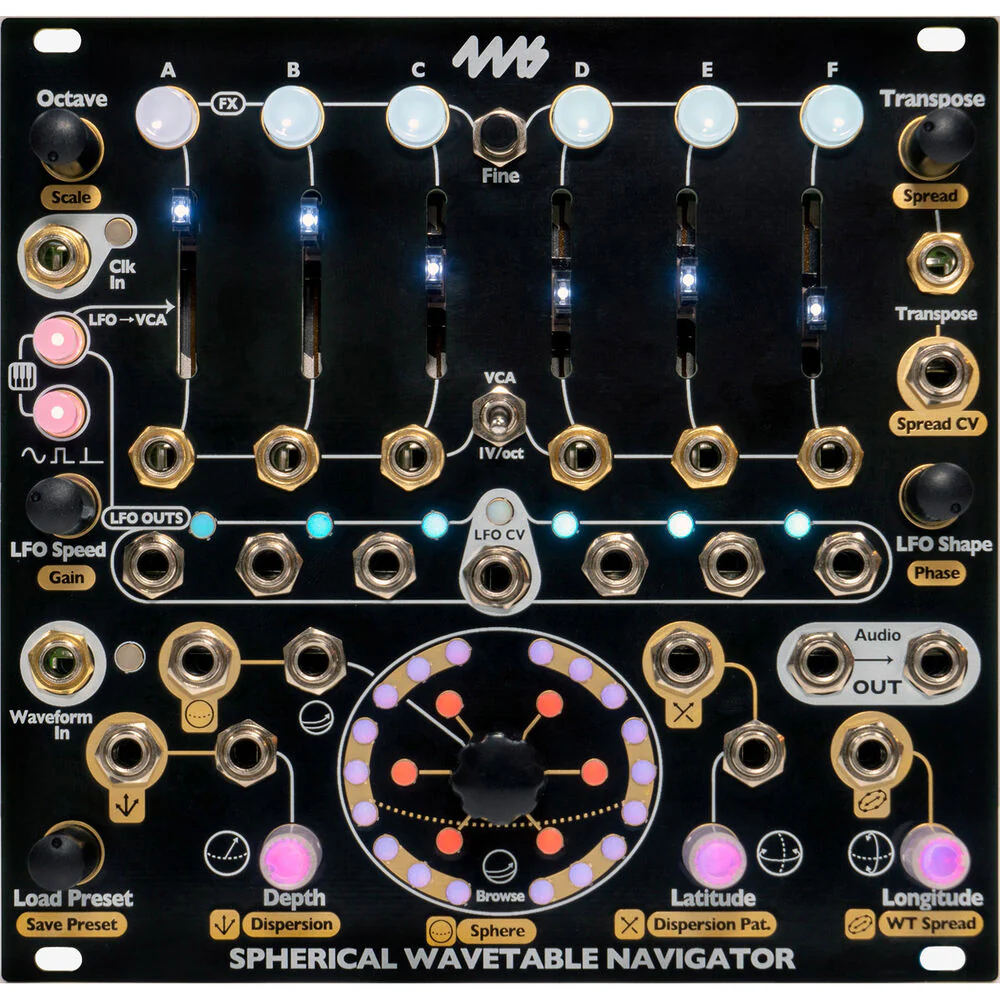

Pitch Controls
All pitch features can be controlled globally or per-channel.
- Octave: shifts pitch of channel(s) up or down by octaves
- Transpose: shifts pitch of channel(s) up or down by semitones
- Fine+Transpose: shifts pitch of channel(s) up or down by microtonal amounts
- Scale: selects quantization: major, minor, semitones, or no quantization
- Spread: creates chords by spreading channel pitches apart
- Fine+Spread: detunes each channel a different amount for phasing effects
- 1V/oct jacks: pitch control jack for each channel
- Transpose jack: global 1V/oct pitch
- Spread CV jack: global chord selection
LFO/Envelope Controls
All LFO features can be controlled globally or per channel.
- LFO Output jacks: Each channel has a dedicated LFO/envelope output jack
- LFO Speed: Rate/tempo of each LFO. Divides/Multiplies main clock by integer amounts unless Fine button is pressed. In audio range, adjusts by semitones
- LFO Shape: Selects from 25 LFO waveshapes (ramps, saw, sine, complex shapes, etc)
- LFO Gain: Control amplitude of LFO on LFO output jacks. Useful for self-patching LFOs to other SWN jacks
- LFO Phase: Adjusts when each LFO fires relative to the down beat. Example: 60 degrees of phase shift per channel creates a 6-step sequence
- LFO Type button: Toggles between trigger, gate, and waveshape
- LFO CV jack: Adjust LFO Speed
- Ext Clock jack: Sync to external equipment

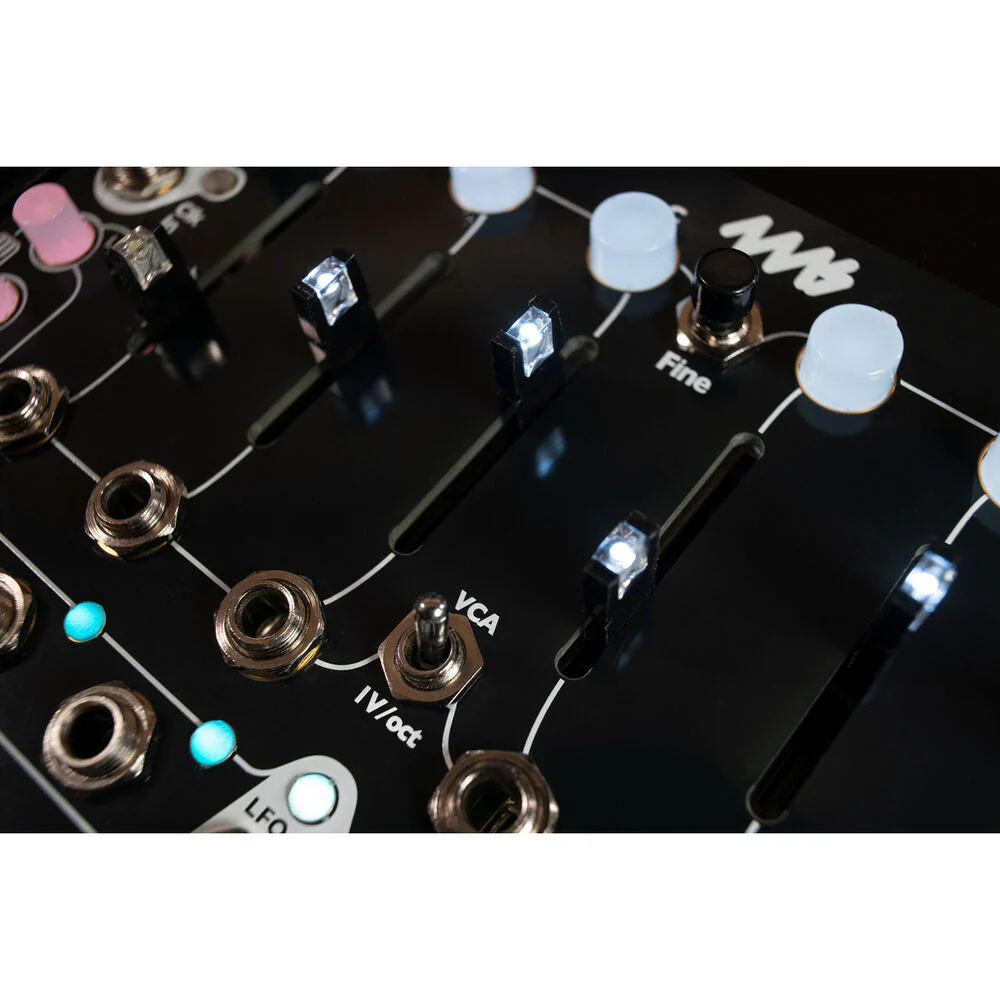

Amplitude Controls
- Sliders: each channel has a dedicated level (volume) slider
- Mute button: each channel has a mute/unmute button
- Key button: in Keyboard or Note mode, mute button will fire the channel's envelope to play a note
- VCA input jacks: switch re-purposes 1V/oct jacks to control level of each channel with CV
- LFO->VCA button: Internally uses each channel's LFO to control its level to create sequences and/or dynamic motion. (global or per-channel)
Wavetable Controls
All wavetable features can be controlled globally or per-channel.
- Browse: Morphs between all waveforms in the Spherical Wavetable (Sphere) by navigating in zigzag (snake) pattern
- Depth: Morphs between waveforms in the Sphere by navigating only in the Depth dimension
- Latitude: Morphs between waveforms in the Sphere by navigating in the Latitude dimension
- Longitude: Morphs between waveforms in the Sphere by navigating in the Longitude dimension
- Sphere: Selects a Spherical Wavetable from the 12 factory spheres and up to 108 user-created custom spheres
- Dispersion: Pushes each channel to a different position within the Sphere
- Dispersion Pattern: Selects the pattern that channels are dispersed
- WT Spread: Pushes each channel into a different Sphere
Presets
All settings (except level sliders and 1V/oct / VCA switch) can be saved for later use.
- Save Preset: Save the state of the SWN so you can come back to it later.
- Load Preset: Select one of 108 user preset slots to load.
- Clear Preset: Delete a preset that you previously saved.
- Undo Preset: Undo your last preset action (example: accidentally cleared the wrong preset, or saved over a preset). Can be used to A/B between a preset the current sound.
Sphere Recording
Special mode to record your own Spherical Wavetables where some controls have a new purpose
- Waveform In jack: Input an audio signal here (gain is automatically adjusted, even for line level signals)
- Record: Start recording from Waveform In jack (2.5 second buffer)
- Monitor: Monitor the audio signal by sending it to the output jacks
- Test-tone: Produce a test tone for tuning your audio source (optional)
- Wavefolding FX: Wavefolds the waveform(s)
- Bit Decimation FX: Adds bit decimation to waveform(s)
- Metalizer FX: Adds a metalizer effect to waveform(s)
- Low-pass filter FX: Low-pass filters the waveform(s)
- Gain/normalization FX: Controls normalization or attenuation of waveform(s)
- Seam smoothing FX: Smooths the seam of recorded waveform(s)
- Waveform Shift: Scrubs through recorded audio to select which waveforms will be saved into the Sphere
- Waveform Spread: Adjusts the pattern of waveform selection from the recorded audio
- Waveform Stretch: Stretches waveforms, which shifts pitch up and down by octaves
- LFO sync pulses and ramps: when recording, LFO jacks output timed pulses and ramps useful for synchronizing the audio source (example: playing a different sample for each waveform recorded)
- Save Sphere: When done, save your sphere in one of 108 slots for user-created custom spheres
Eurorack Ready

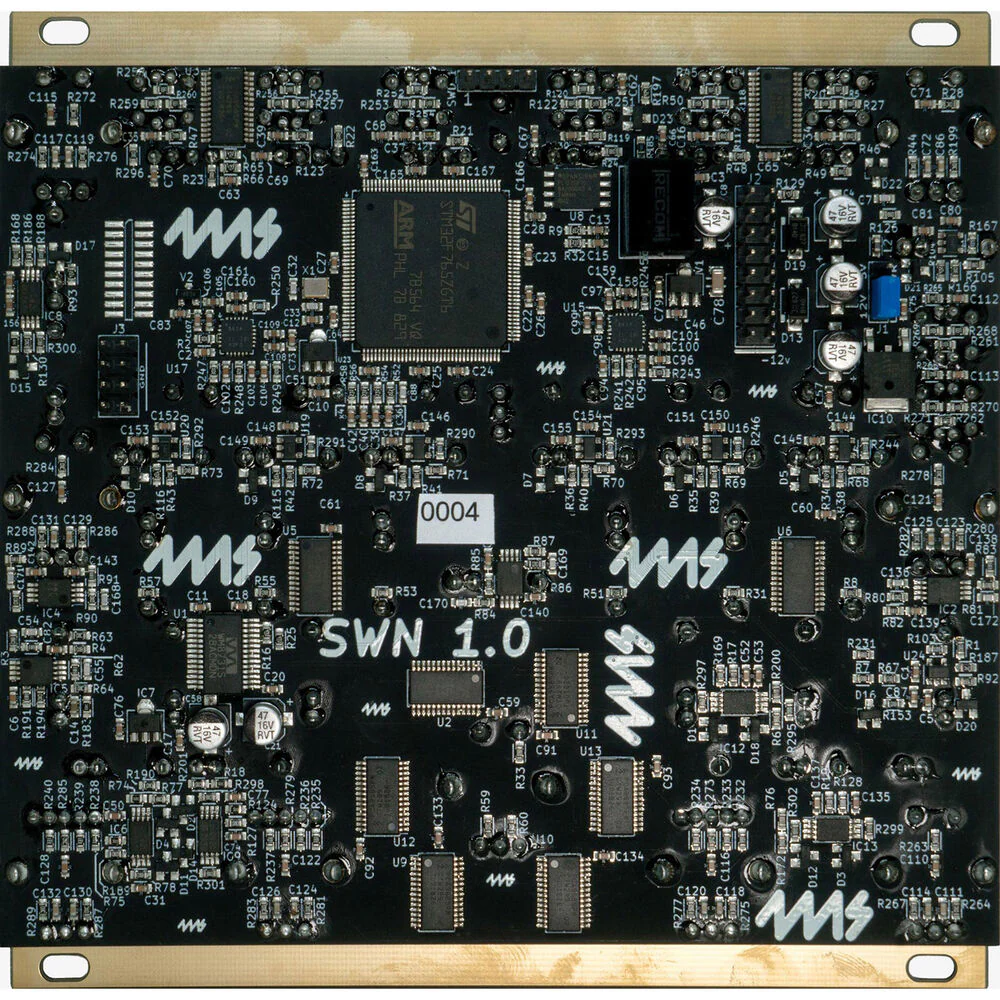

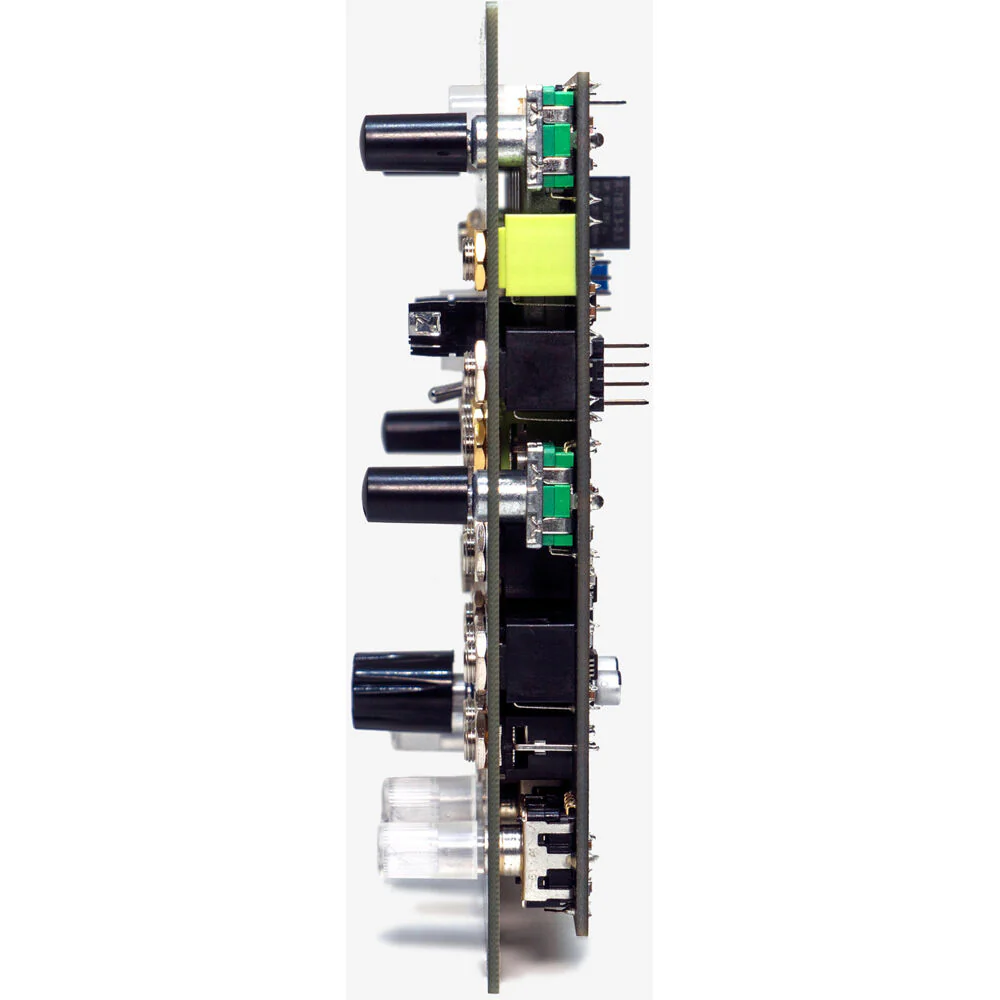

- Module size: 26 HP Eurorack format module
- Maximum depth: 0.98" (25mm) with power cable
- Power consumption:
- +12V: 185mA with LED PWR jumper set to 12V; 107mA with LED PWR jumper set to 5V
- -12V: -30mA
- +5V: not used with LED PWR jumper set to 12V; 60mA with LED PWR jumper set to 5V
In the Box
- 4ms Spherical Wavetable Navigator Eurorack Module (26 HP)
- Eurorack Ribbon Power Cable
- Set of Mounting Screws
- Limited 1-Year Manufacturer Warranty
Not in the Box
- Essential Eurorack Cases (Not Included)
Table of Contents
- Description
- Pitch Controls
- LFO/Envelope Controls
- Amplitude Controls
- Wavetable Controls
- Presets
- Sphere Recording
- Eurorack Ready
4ms 4MSPHWVTBLNV Specs
Key Specs
| Sound Generation |
Digital
|
| Number of Sounds, Kits, or Samples |
12x Factory Sound Preset
108x User Sound Preset |
| Maximum Polyphony |
6 Voice
|
| Audio I/O |
2x 1/8" / 3.5 mm TS Unbalanced Mono Instrument Output
1x 1/8" / 3.5 mm TS Unbalanced Mono Line/Instrument Input |
| MIDI I/O |
No
|
| CV/Gate I/O |
17x 1/8" / 3.5 mm TS CV Input
6x 1/8" / 3.5 mm TS CV Output |
| Patch Points |
8x 1/8" / 3.5 mm Output
17x 1/8" / 3.5 mm Input |
| Eurorack Current Consumption |
185 mA on +12 V Rail
30 mA on -12 V Rail 60 mA on +5 V Rail |
| Horizontal Pitch |
26 HP
|
General
| Item Type |
Eurorack Module
|
| Sound Generation |
Digital
|
| Keyboard |
No
|
| Expression Controls |
No
|
| Number of Pads |
No
|
| Display |
No
|
Sounds
| Number of Sounds, Kits, or Samples |
12x Factory Sound Preset
108x User Sound Preset |
| Maximum Polyphony |
6 Voice
|
| Built-In Effects |
Yes
|
| Built-In Speaker |
Yes
|
Synthesis
| Oscillators |
6x Variable (Wavetable)
|
| Mixer |
No
|
| Envelopes |
6x Assignable Envelope Generator: Attack, Release
|
| Filters |
No
|
| LFOs |
Number of LFOs: 6x Global
Waveforms: Sine, Sawtooth, Reverse Sawtooth, Sawtooth Up, Sawtooth Down, Square, Triangle, Random, Low Random, Slew Random LFO Rate: 0 to 3000 Hz |
Sequencing & Recording
| Sequencer |
No
|
| Arpeggiator |
No
|
| Audio Recording Formats |
WAV: 44.1 kHz / 16-Bit
|
Connectivity
| Audio I/O |
2x 1/8" / 3.5 mm TS Unbalanced Mono Instrument Output
1x 1/8" / 3.5 mm TS Unbalanced Mono Line/Instrument Input |
| Pedal Support |
No
|
| MIDI I/O |
No
|
| CV/Gate I/O |
17x 1/8" / 3.5 mm TS CV Input
6x 1/8" / 3.5 mm TS CV Output |
| Control Voltage Level |
LFO CV Out: 0 to +10 V
CV In: 0 to +5 V Trigger/Clock : +1.5 V |
| Patch Points |
8x 1/8" / 3.5 mm Output
17x 1/8" / 3.5 mm Input |
| Sync I/O |
1x 1/8" / 3.5 mm Clock Input
|
| Network I/O |
No
|
| USB I/O |
No
|
| Media/Memory Card Slot |
No
|
Audio Performance
| Maximum Output Level |
19 V p-p
|
| Included Software |
No
|
| Mobile App Compatible |
No
|
Power
| Power Requirements |
Eurorack Power
|
| Eurorack Current Consumption |
185 mA on +12 V Rail
30 mA on -12 V Rail 60 mA on +5 V Rail |
Physical
| Color |
Black
|
| Horizontal Pitch |
26 HP
|
| Included Accessories |
No
|
Packaging Info
| Package Weight |
0.835 lb
|
| Box Dimensions (LxWxH) |
7.2 x 6.8 x 2.2"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
